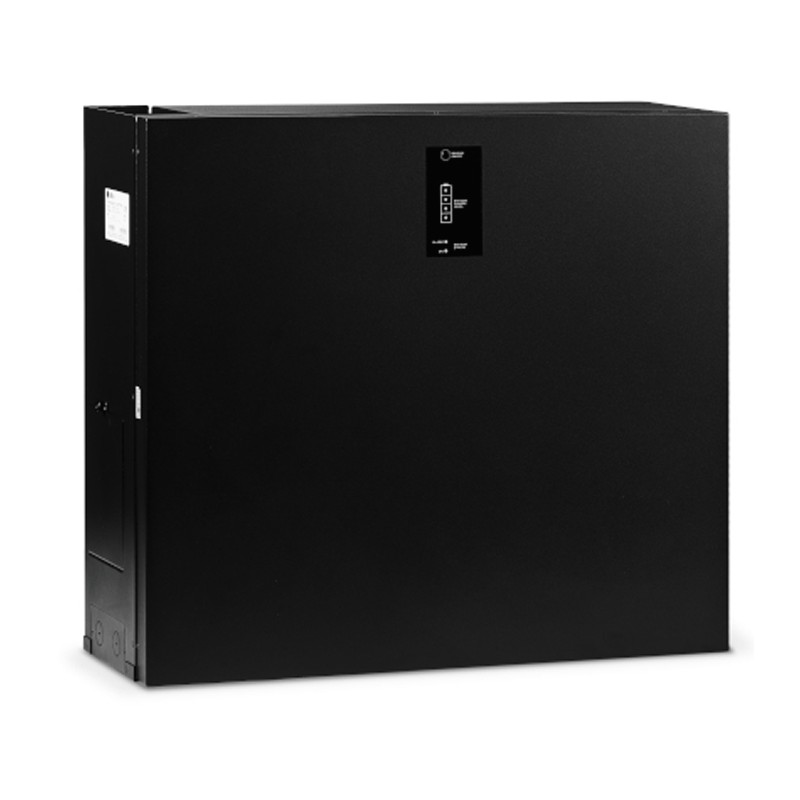

Battery Module for Photovoltaic Riello Aros BATLIO 4800 6WL1048100A

Brand: Aros

Cod: ARO 6WL1048100A EAN:

Riello Aros BATLIO 4800 photovoltaic battery module, compatible with Aros hybrid Rs inverters (6ES13K6A-6ES16K0A).

€3,404.68 Tax included

€3,404.68

€3,404.68
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 3

qty

€3,404.68

Buy it within and receive it from Wednesday, 12 November

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

ARO 6ES13K6A

€2,342.84

Features:

Li-Ion type
Total energy Wh 4800
Rated voltage Vdc 48
Full charge voltage FC Vdc 52.5
Full discharge voltage FD Vdc 34.5
Capacity Ah 100
Max charging current A 100
Max discharge current A 150
Recommended end-of-discharge voltage V 37.5
Recommended charging voltage V 52.5
Maximum battery connector voltage V 1000
Maximum battery connector current A 125
Maximum charging power W 1500 (with one battery module) / 2600 (with more than one battery module)
Maximum discharge power W 3600 (RS 3.6) 4800 (RS 6.0)
DOD 100%

General:

Standard charging method 0.2C DC (constant current) charge to FC, then CV (constant voltage FC) charge until charging current decreases to 0.05C
Operating temperature range Charging phase: 0 °C~50 °C - Discharge phase: 0 °C~+50 °C
BMS Protections, Circuit Breaker
Maximum charging current 50 A (0.5C) at battery module
Standard charging method 0.2C DC (Constant Current) charge from FC, CV (Constant Voltage FC) charge to decline current <0.05C
Weight kg 60
Dimensions (WxDxH) mm 620 x 210 x 550
Degree of protection IP 20
Recommended storage temperature 20 ± 5°C
Storage time -20 °C ~ 25 °C <18 months - 25 °C ~ 45 °C <3 months - 45 °C ~ 60 °C <1 month
Ambient unidarity range 20%RH-80%RH
