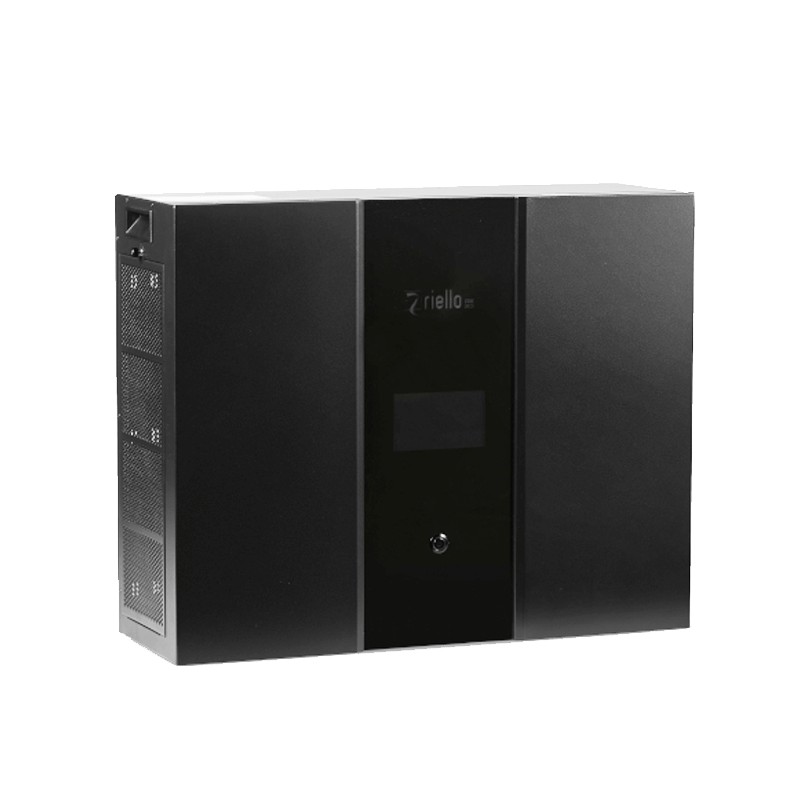

Riello Aros RS 3.6kW 2 MPPT Single-phase Hybrid Photovoltaic Inverter 6ES13K6A

Aros
Aros
ARO 6ES13K6A

Inverter for hybrid photovoltaic Riello Aros model RS 3.6:

  • Rated output power 3600W
  • Number of MPPTs 2
  • Maximum number of inputs 2
  • Single-phase grid connection
  • Built-in Wi-Fi communication, built-in RS485


Compatible with:

  • Li-Ion Battery Total energy Wh 4800 code 6WL1048100A
  • Aros RS-Hybrid Side connection cable kit for hybrid inverters code XES1RS01A

  • wifi
Request info about this product

Riello Aros RS 3.6kW 2 MPPT Single-phase Hybrid Photovoltaic Inverter 6ES13K6A

€2,342.84 Tax included
€2,342.84

Riello Aros RS 3.6kW 2 MPPT Single-phase Hybrid Photovoltaic Inverter 6ES13K6A

€2,342.84
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 3
Altre disponibilità dal produttore
qty

Riello Aros RS 3.6kW 2 MPPT Single-phase Hybrid Photovoltaic Inverter 6ES13K6A

€2,342.84

Buy it within and receive it from Monday, 17 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Strengths:

  • Plug & play installation
  • Max DC power 150% overload
  • LV lithium-iron-phosphate batteries
  • Connection of up to 6 battery modules for a total capacity of about 30 kWh
  • 100% discharge capacity
  • Suitable for AC-side retrofit
  • Integrated backup module

Riello Solartech: Hybrid inverters integrated to an Energy Storage system for residential applications:

  • Energy storage saves electricity for later use: when and where it is needed most. By introducing more flexibility into the grid, energy storage allows more solar energy resources to be integrated.

  • Riello Solartech's LEnergy Storage is a system that can both expand the functionality of an On Grid photovoltaic system with RS 3.6 and 6.0 HYBRID hybrid inverters coupled with 4.8 kWh Lithium-ion battery modules respectively, and create a backup with the ability to dedicate a preferential line of loads in the event of grid failure. With an attractive design and a simple plug & play installation, the system thanks to the energy storage (storage) scalable up to 6 modules of 4.8 kWh in parallel configuration, allows to store the energy produced by the photovoltaic system and not self-consumed, in order to use it in the evening hours or in periods of low solar irradiation, making the system independent from the electricity distribution network. This solution allows you to optimally manage the self-consumption of the energy produced by your PV system. Battery charging is done by the hybrid inverter.

RS HYBRID inverters are available in 3.6 and 6 kW ratings, equipped with DC, AC and battery side disconnect switches and cat. 2 surge arresters for immediate plug & play installation without the need for additional field switchboards.

Features:

Efficiency:

  • 96% max. efficiency
  • European weighted efficiency 95%
  • Maximum battery charge/discharge efficiency 93%.

DC input:

  • PV power max W 5400 (150% respecting DC input parameters)
  • Maximum input voltage V 550
  • Nominal input voltage V 360
  • Starting voltage V 116
  • MPPT operating voltage range V 120 ÷ 550
  • Maximum input current for MPPT A 2 x 13
  • Maximum short-circuit current A 2 x 15
  • Number of MPPTs 2
  • Maximum number of inputs 2

AC output:

  • Single-phase grid connection
  • Rated output power W 3600
  • Maximum apparent power VA 3960
  • Rated output voltage V 220 / 230 L + N + P
  • Rated AC mains frequency Hz 50 / 60
  • Maximum output current 17
  • Adjustable power factor 0.8 capacitive 0.8 inductive
  • Harmonic Distortion (THDI) <3% (rated power)
  • Backup power
  • W 3600 (module included)

Protections:

  • DC disconnect switch on PV array side Yes
  • DC disconnect switch on battery side Yes
  • Anti-islanding protection Yes
  • DC reverse polarity protection Yes
  • Ground fault detection Yes
  • DC overvoltage protection Type II (VDR) Yes
  • AC overvoltage protection Type II (VDR) Yes
  • Residual current monitoring Yes
  • AC overcurrent protection Yes
  • AC short-circuit protection Yes
  • Overheat protection Yes

General:

  • Operating temperature range -25 °C ÷ 60 °C
  • Relative operating humidity 0 ÷ 100%
  • Operating altitude 2000 m (max 4000 m with derating)
  • Cooling by internal fan

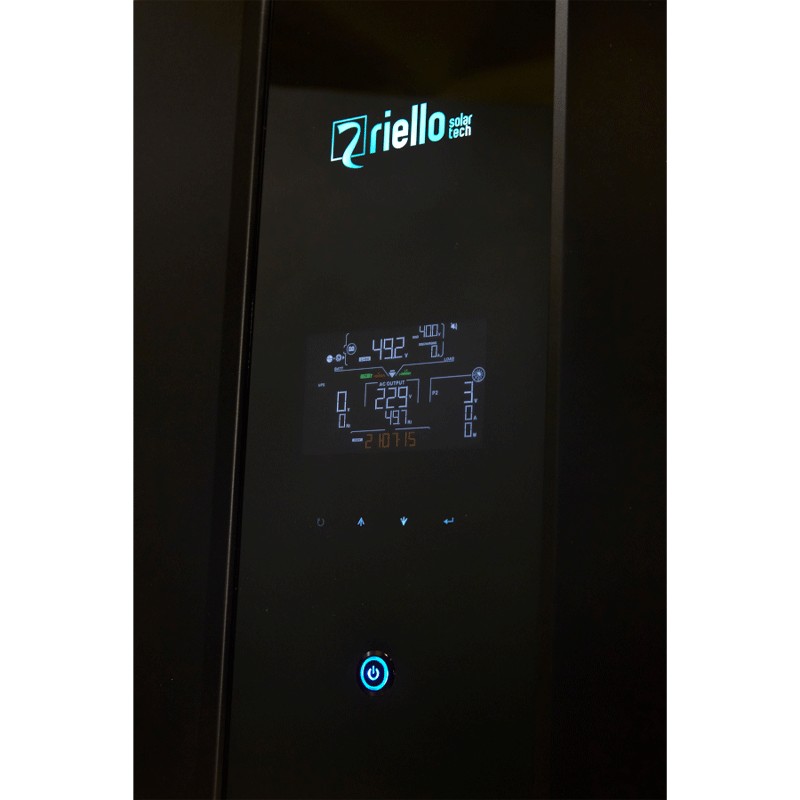

  • LED + LCD display
  • Communication Built-in Wi-Fi, built-in RS485, Ethernet (optional)
  • Dimensions (WxDxH)
  • mm 620 x 210 x 500
  • Weight kg 24
  • Degree of protection IP 21
  • Nighttime power consumption < 1W
  • On-board contacts 1

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
Model:
Hybrids
WIFI:
Integrated
MPPT:
2
Connection:
Single-phase
