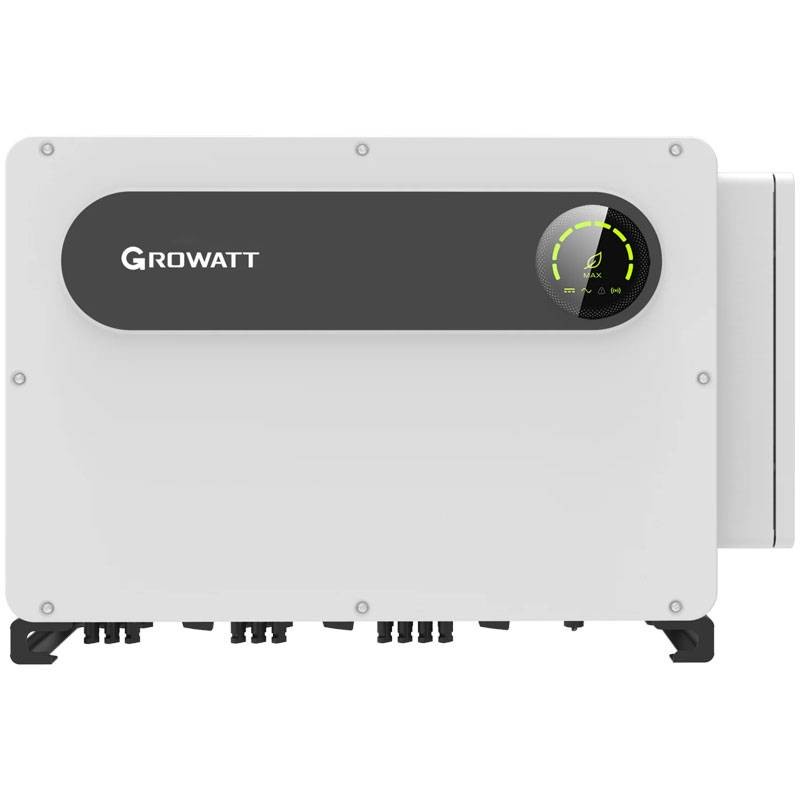

Growatt 125KW 10MPPT Three-Phase Photovoltaic Inverter GWMAX125KTL3XLV
GRW GWMAX125KTL3XLV
Growatt Max TL3 series photovoltaic inverter, suitable for commercial rooftop and large ground-mounted installations, the 10 MPP trackers ensure high efficiency:
- Rated AC output power 125000W
- Rated AC voltage 400V/380V (340-440VAC)
- Number of MPPT trackers 10
- Built-in USB and RS485 interfaces
Growatt 125KW 10MPPT Three-Phase Photovoltaic Inverter GWMAX125KTL3XLV
€8,062.44
Tax included
€8,062.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
Pay in installments with Klarna
Advantages:
- 10 MPPT of the Fuseless type
- Intelligent string monitoring
- Type II AC and DC arresters
- IP66 protection
- I/V curca diagnosis and monitoring
Features:
Input parameters (DC):
- Maximum DC voltage 1100V
- Trigger voltage (V start) 195V
- Rated voltage 600V
- MPPT voltage range 180-1000V
- Number of MPP trackers 10
- Strings for MPP 2 trackers
- Max. input current for MPPT 32A
- Max dc current for MPPT 40A
Output parameters (AC):
- Nominal AC output power 125000W
- Max AC apparent power 137500VA
- Rated AC voltage AC 400/380V (340-440VAC)
- AC mains frequency 50/60 Hz
- Maximum output current 198.5A-400V - 208.9-380V
- Configurable power factor 0.8 in advance ...0.8 in retardation
- Total harmonic distortion THDI <3%
- AC connection 3W/N/PE
Conversion efficiency:
- Maximum Efficiency 98.8%
- Euro Efficiency 98.5%
- MPPT Efficiency 99.9%
Safety features:
- DC reverse polarity protection
- DC disconnect switch
- AC/DC overvoltage protection Type II / Type II
- Insulation resistance monitoring
- AC short-circuit protection
- Ground fault detection device
- String monitoring
- Anti-PID protection
- AFCI protection
General data:
- Dimensions (W / H / D) in mm 970x640x345mm
- Weight 84Kg
- Operating temperature range -30 Degrees...+60 Degrees
- Power consumption: night mode <15W
- Topology Transformerless
- Cooling system Controlled ventilation
- Environmental protection rating IP66
- Relative humidity 0-100%
- Altitude 4000 meters
- DC H4/MC4 connection (Max.6 mm2)
- AC connection Eyelet terminals (Max. 240 mm2)
- LED Display/WIFI+APP
- Built-in USB/RS485 Interfaces
There are no reviews
Data sheet
- Type: Inverter
- Power: 100KW to 200KW
- Degree of protection: IP66
- MPPT: 10
- Connection: Three-phase
