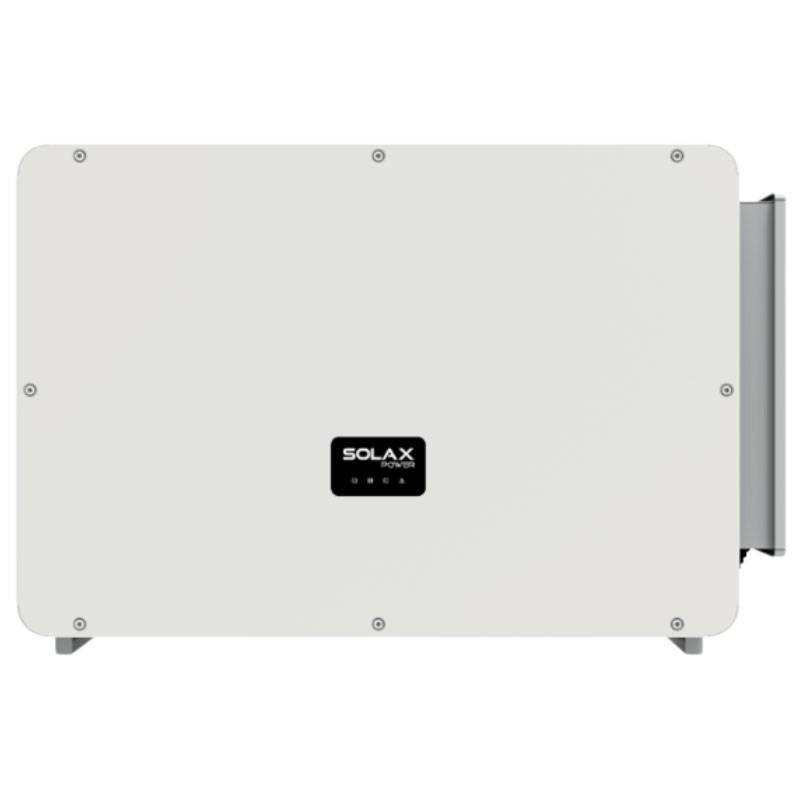

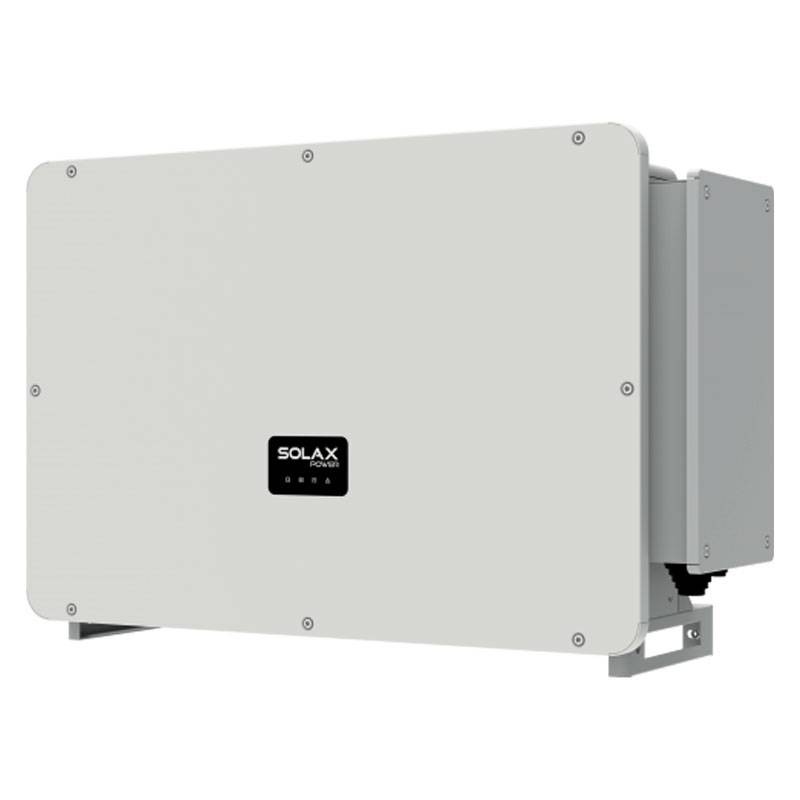

Sunerg Solar 100KW Three-Phase Photovoltaic Inverter 9MPPT X3-FORTH-100K

Sunerg Solar
Sunerg Solar
SUS X3-FORTH-100K

Sunerg Solar photovoltaic inverter model X3-FORTH On-grid:

  • Rated output power: 100KW
  • Rated AC voltage 220/380, 230/400, 3/N/PE, 3/PE
  • Connection: three-phase
  • Number of MPPT inputs: 9
  • Communication systems RS485 / Bluetooth / USB

Request info about this product

Sunerg Solar 100KW Three-Phase Photovoltaic Inverter 9MPPT X3-FORTH-100K

€6,941.42 Tax included
€6,941.42

Sunerg Solar 100KW Three-Phase Photovoltaic Inverter 9MPPT X3-FORTH-100K

€6,941.42
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 3
Altre disponibilità dal produttore
qty

Sunerg Solar 100KW Three-Phase Photovoltaic Inverter 9MPPT X3-FORTH-100K

€6,941.42

Buy it within and receive it from Tuesday, 23 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Safety:

  • IP66 degree of protection
  • AC terminal temperature sensing
  • SPD type III for AC and DC, SPD type I optional not integrated

Easy maintenance and saving:

  • Integrated export power control
  • Remote setup and update
  • Smart IV Curves diagnosis supported
  • AC connection with aluminum cable
  • Current measurement for each PV string
  • SVG function supported (optional not integrated)
  • AC connection with aluminum cable
  • 24/24 monitoring
  • Powerline communication (PLC) (optional not integrated)
  • Fuse-free design with intelligent current monitoring
  • Advanced dissipation technology for a 50% lighter and smaller device


Features:


DC input:

  • Maximum DC input power Wp 150
  • Maximum input voltage. V 1100
  • Starting voltage V 200
  • Nominal input voltage V 580/600
  • MPP voltage range V 180~1000
  • Number of MPP inputs 9
  • Strings per MPP input 2
  • Input current for MPP max 32A
  • Short-circuit current for MPP max 46A

AC output:

  • Rated output power 10KW
  • Nominal output current 151.6/145A
  • Apparent AC power output 110A
  • Max. output current 166.7/159.5A
  • Nominal AC voltage 220/380, 230/400, 3/N/PE, 3/PE V
  • Rated mains frequency/Range 50/60 Hz
  • Power phase shift factor 0.8 in advance~0.8 in retardation
  • THDi (rated power) <3%.



System Data:

  • MPP efficiency grade 99.9%
  • Max efficiency rating 98.6%
  • Protection class IP66
  • Operating temperature range -25 ~ +60 (reduced to 45°C) degrees
  • Max operating altitude 4000 (reduced to 3000) meters
  • Humidity 0~100%
  • Dimensions (W/H/D) 985x660x327.5mm
  • Net weight 83kg
  • Cooling system Intelligent cooling fan


Protection devices:

  • Over/under voltage protection
  • DC isolation protection
  • Mains monitoring
  • DC injection monitoring
  • Residual current detection
  • Anti-isolation protection
  • String failure detection
  • SPDs (DC/AC) Type II / Type II
  • Temperature sensing output terminals

Safety standards:

  • Safety Standards IEC/EN 62109-1; IEC/EN 62109-2: NB/T 32004
  • EMC IEC/EN 61000: NB/T 32004
  • Certifications EN 50549; AS4777.2; VDE4105; IEC 61727; IEC 62116; IEC 61683; IEC 60068; EN 50530; NB/T 32004

There are no reviews

Data sheet

Type:
Inverter
Power:
61KW to 100KW
Degree of protection:
IP66
MPPT:
9
Connection:
Three-phase
