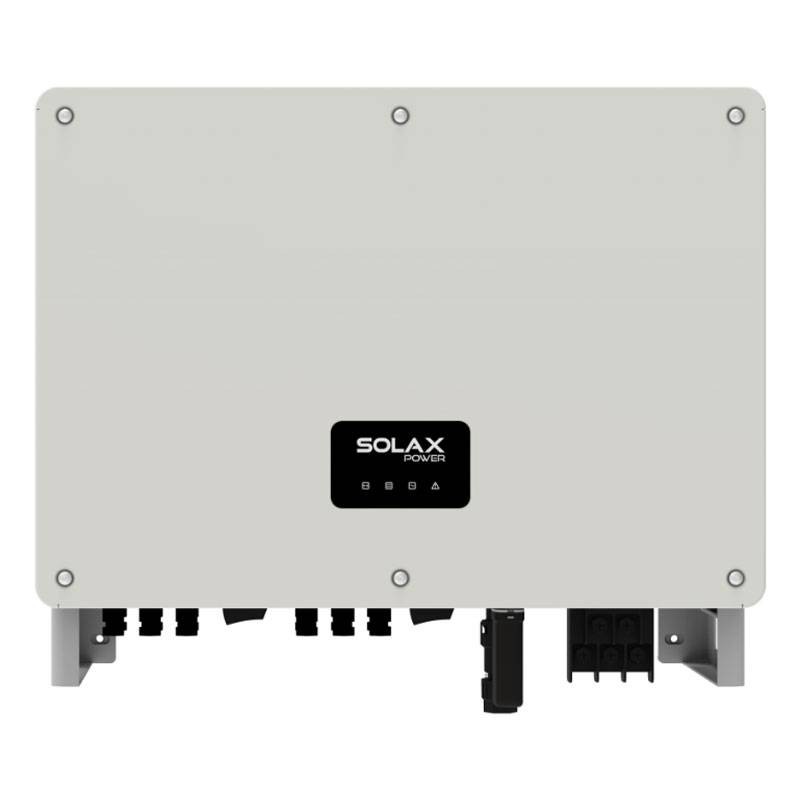

Sunerg Solar 50KW Three-Phase Photovoltaic Inverter 5MPPT X3-MEGA-5OK-5X
SUS X3-MEGA-5OK-5X
Sunerg Solar X3-MEGA G2 series photovoltaic inverter:
- Rated output power 50KW
- Nominal AC Voltage 220/380V, 230/400V, 3/N/PE, 3/PE
- Connection: Three-phase
- Number of MPPT inputs: 5
- Communication systems RS485 / Bluetooth / USB
Sunerg Solar 50KW Three-Phase Photovoltaic Inverter 5MPPT X3-MEGA-5OK-5X
€3,769.34
Tax included
€3,769.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Easy maintenance and savings:
- Integrated export power control
- Remote setup and update
- Smart IV Curves diagnosis supported
- AC connection with aluminum cable
- Current measurement for each PV string
- SVG function supported
- 24/24 monitoring
- Powerline communication (PLC) (optional not integrated)
- Fan cooling
- Advanced dissipation technology for a 110% lighter and smaller device
- Maximum current 32A per MPPT, 16A per string
- Oversized PV input by 150%, overloaded output by 110%
- IP66 degree of protection
Features:
DC INPUT:
- Maximum DC input power 75 Wp
- Max. input voltage 1100V
- Starting voltage 200V
- Nominal input voltage 600V
- MPP voltage range 180-1000V
- Number of MPP inputs 5
- Strings per MPP input 2
- Input current for MPP max 32A
- Short-circuit current for MPP max 46A
.
AC OUTPUT:
- Rated output power 50KW
- Nominal output current 75.8/72.5 A
- Apparent AC output power 55 A
- Max. output current 83.3/79.7A
- Nominal AC Voltage 220/380V, 230/400V, 3/N/PE, 3/PEV
- Rated mains frequency/Range 50/60 Hz
- Power phase shift factor 0.8 in advance~0.8 in retardation
- THDi (rated power) <3%
SYSTEM DATA:
- Efficiency grade 98.4%
- European efficiency grade 98.1%
- Self-consumption (night) <2W
- Protection class IP66
- Operating temperature range -25 ~ +60 (reduced to 45°C)
- Max operating altitude 4000 meters (reduced 3000 meters)
- Humidity 1~100 %
- Dimensions (W/H/D) 630*521*286mm
- Net weight 44kg
- Cooling system Intelligent cooling fan
PROTECTION DEVICES:
- Over/under voltage protection
- Over current protection
- DC isolation protection
- Network monitoring
- DC injection monitoring
- Residual current detection
- Anti-isolation protection
- String fault detection
- Overtemperature protection
- SPD (DC/AC) Type II / Type II
SAFETY STANDARDS:
- IEC/EN 62109-1 safety standards; IEC/EN 62109-2: NB/T 32004
- EMC IEC/EN 61000: NB/T 32004
- Certifications VDE 4105: EN 50549; AS 4777.2; VDE 4105: IEC 61727; IEC 62116: IEC 61683: IEC 60068: EN 50530: NB/T 32004
There are no reviews
Data sheet
- Type: Inverter
- Power: 31KW to 60KW
- Degree of protection: IP66
- MPPT: 5
- Connection: Three-phase
