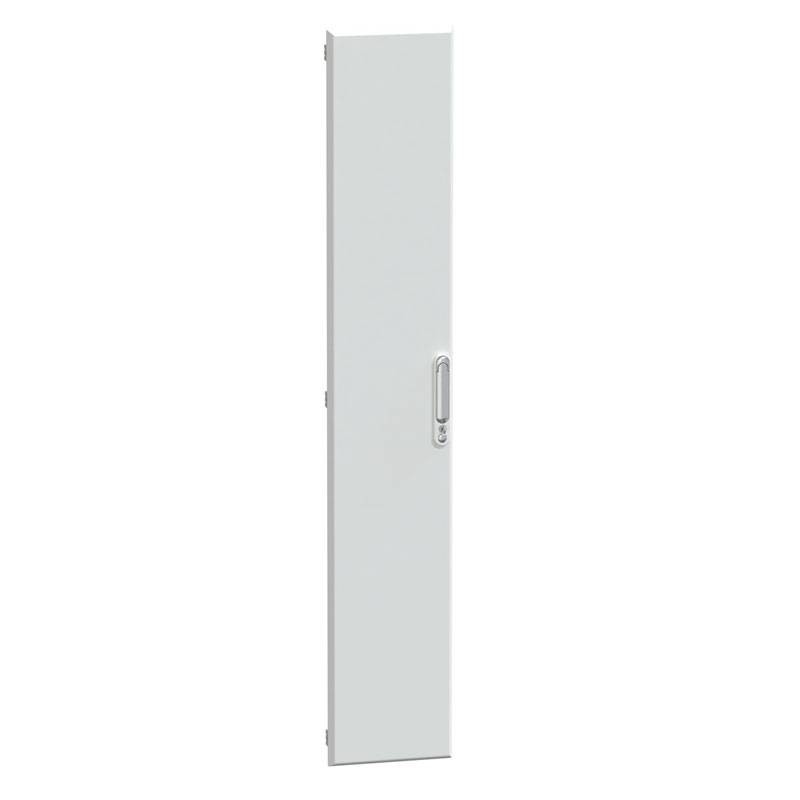

Schneider Prisma G W300 H1830mm 33M IP30 Smooth Ducted Door LVS08284
SNR LVS08284
3606481878380
Schneider Prisma G W300 33M smooth ducted door with the following features:
- Product range: PrismaSet G
- Product type or component: Door
- Range compatibility: PrismaSet G ducted
- Door type: Plain
- Door opening side: Reversible
- Number of locks: 3
- Degree of protection IP30
- Door opening angle: 130°
- Number of vertical modules (50 mm) 33
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
Schneider Prisma G W300 H1830mm 33M IP30 Smooth Ducted Door LVS08284
€210.48
Tax included
€210.48
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 1
Pay in installments with Klarna
IP rating:
- IP43 with IP43 door, canopy and gasket
- IP30 without door
- IP40 with door
- IP41 with door and canopy
Housing material:
- Handle: polyamide
- Cover frame: treated sheet steel
Equipment provided:
- Door handle
- Key lock (key 405)
- Other key lock and insert to be ordered separately
- 3 hinges

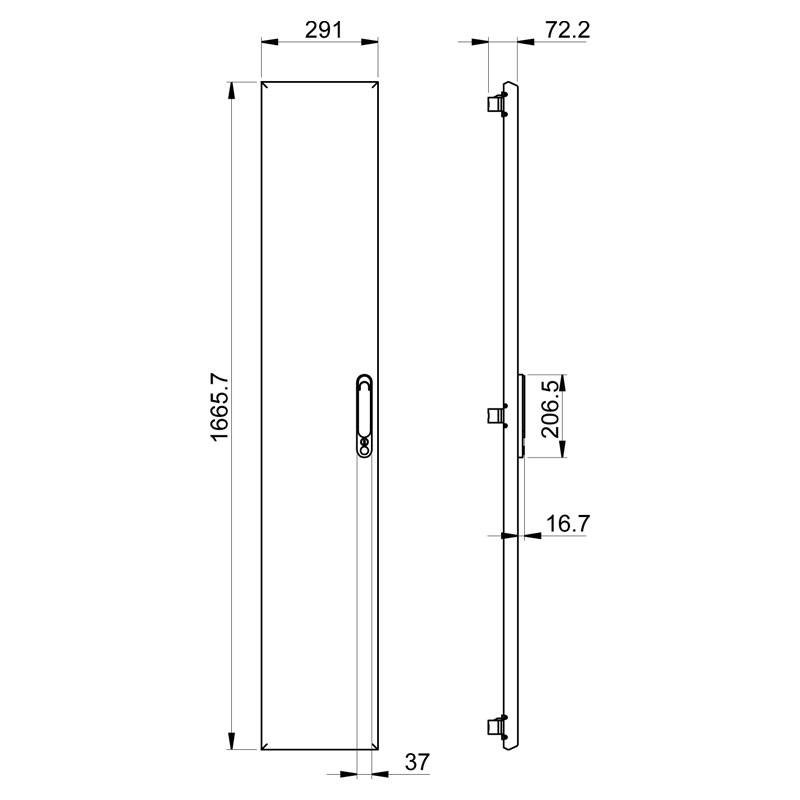

Dimensions and weight:
- Height: 1830 mm
- Width: 300 mm
- Depth: 33 mm
- Weight: 6.48 kg
There are no reviews
Data sheet
- Type: Doors
- Modules: 33
- Degree of protection: IP30
