Schneider PrismaSet G W600 33M IP30 LVS08234 Transparent Panelboard Door
SNR LVS08234
3606481878267

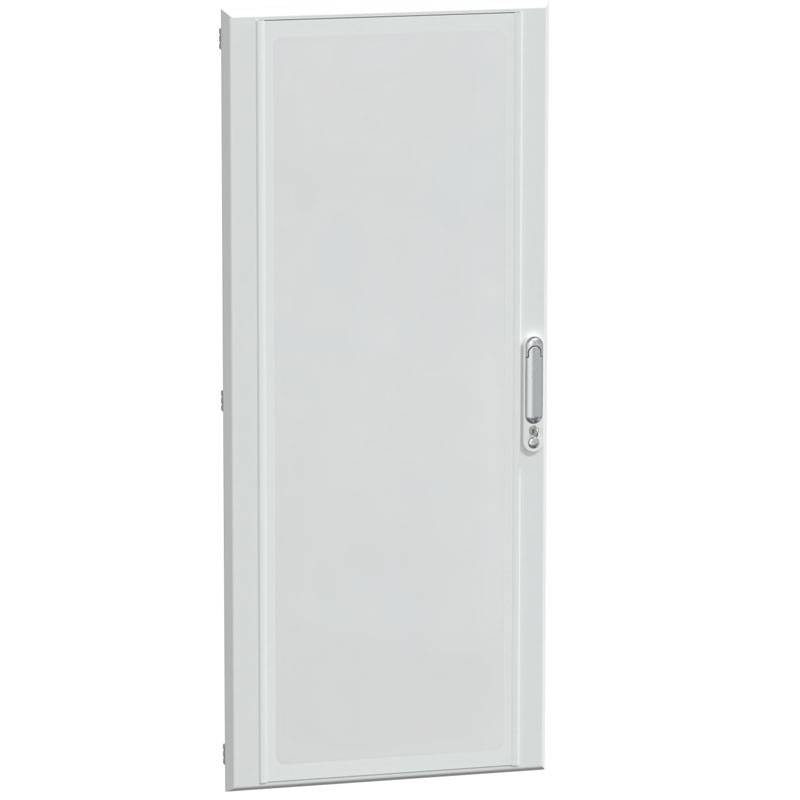

Schneider PrismaSet G W600 33M IP30 transparent door with the following features:
- Product range: PrismaSet G
- Product type or component: Door
- Range Compatibility: PrismaSet G housing
- Door Type: Transparent
- Door opening side: Reversible
- Number of locks: 3
- Degree of protection: IP30
- Degree of protection IK: IK08 in accordance with EN/IEC 62262
- Door opening angle: 130°
- Number of vertical modules (50 mm) 33
- Protective treatment: electrophoresis treatment and heat-cured polyester epoxy powder
Schneider PrismaSet G W600 33M IP30 LVS08234 Transparent Panelboard Door
€572.04
Tax included
€572.04
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 2
Pay in installments with Klarna
IP rating:
- IP43 with IP43 door, canopy and gasket
- IP30 without door
- IP40 with door
- IP41 with door and canopy
Installation description:
- Wall-mounted cabinet width 600 mm
- Extension cabinet width 600 mm
Enclosure material:
- Handle: polyamide
- Glass
- Cover frame: treated sheet steel
Equipment provided:
- Door handle
- Key lock (key 405)
- Other key lock and insert to be ordered separately
- 3 hinges

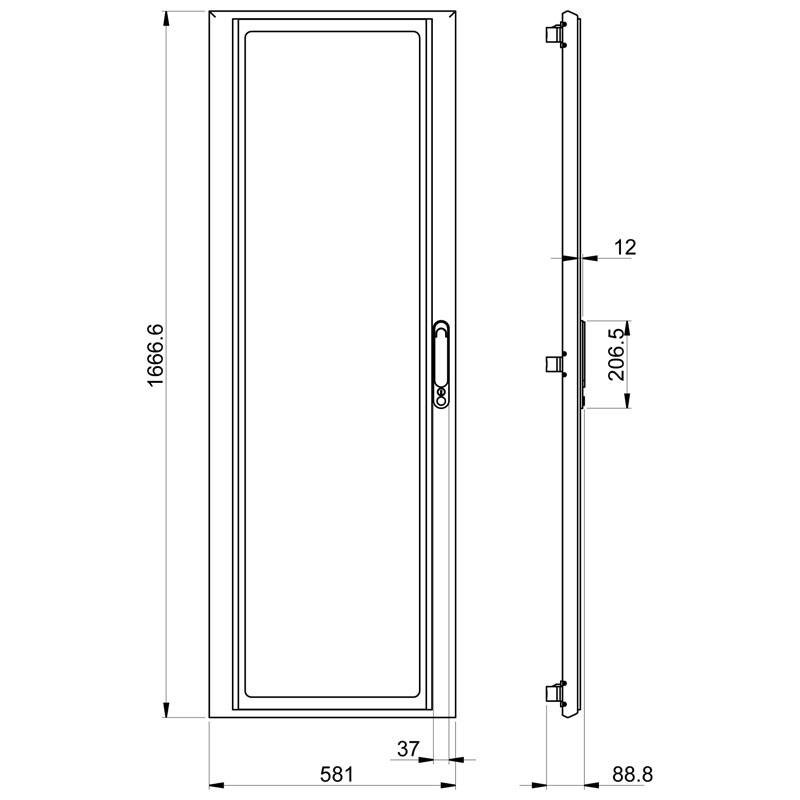

Dimensions and weight:
- Height: 1830 mm
- Width: 600 mm
- Depth: 33 mm
- Weight: 11.54 kg
There are no reviews
Data sheet
- Type: Doors
- Modules: 33
- Degree of protection: IP30
