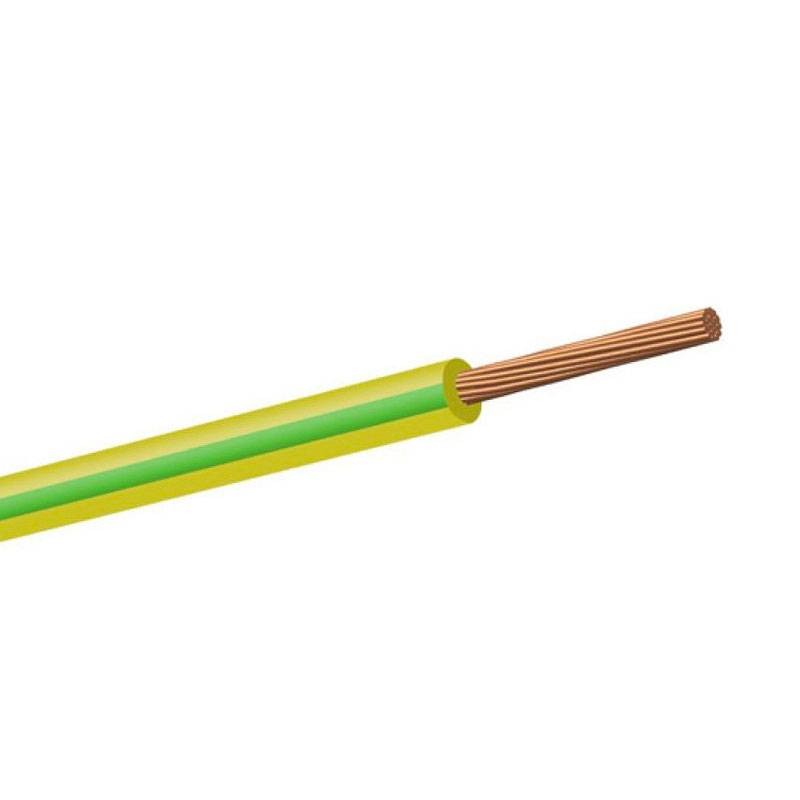

FG17 cable 1x120 sq. mm 450/750 V with Yellow/Green blue

Cavi
9X9 FG171X120GV

FG17 1x120 sq mm 450/750 V cable with Blue Yellow/Green with the following characteristics:



  • Conductor diameter: 13.7 mm
  • Insulation thickness: 1.6 mm
  • Production diameter: 16.9 mm
  • Maximum electrical resistance at 20°C: 0.161 ohm/ km
  • Current carrying capacity at 30°C in air tube: 312A



Sale per meter.


The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Request info about this product

FG17 cable 1x120 sq. mm 450/750 V with Yellow/Green blue

€19.85 Tax included
€19.85

FG17 cable 1x120 sq. mm 450/750 V with Yellow/Green blue

€19.85
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 947
logo priority: 501
Altre disponibilità dal produttore
qty

FG17 cable 1x120 sq. mm 450/750 V with Yellow/Green blue

€19.85

Calculate shipping cost
Buy it within and receive it from Thursday, 6 November
klarna Pay in installments with Klarna
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Energy cable insulated with G17-quality elastomeric compound, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).



Features:

  • Rated voltage Uo/U: 450/750 V
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -30°C (in the absence of mechanical stress)
  • Minimum installation temperature: -15°C
  • Maximum short-circuit temperature: 250°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 4 times the maximum outer diameter



Conditions of use: Especially suitable in places with fire hazards and high presence of people. For installation within exposed or recessed piping or similar closed systems. For fixed and protected installation within lighting fixtures or switching and control equipment. When the installation is protected within switchgear and control equipment these cables are permitted for voltages up to 1000 V AC or 750 V DC to ground. The 1 mm² cross-section is intended only for electrical circuits of elevators and hoists or for internal connection of switchgear for signaling and control. Not suitable for outdoor installation. (ref. IEC 20-40).

There are no reviews

Data sheet

Colour:
Yellow Green
Section:
120mmq
With yellow/green:
Yes
Number of cables:
1
