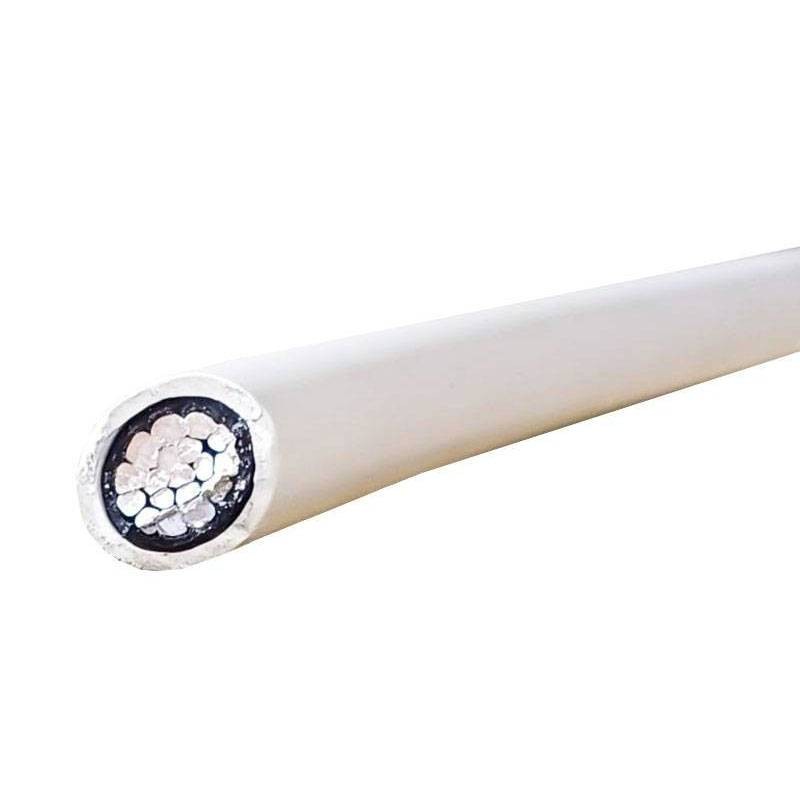

Single-core ARG16R16 aluminum conductor cable 1x120 sq. mm 0.6/1KV

Cavi
9X9 ARG161X120

Single-core ARG16R16 aluminum conductor 1x120 sq mm 0.6/1KV cable with the following characteristics:



  • Conductor diameter: 13.1 mm
  • Insulation thickness: 1.2 mm
  • Sheath thickness: 1.5 mm
  • Production diameter: 18.5 mm
  • Maximum electrical resistance at 20°C: 0.253 ohm/km
  • Current carrying capacity in free air: 310A
  • Current rating in air tube: 250A
  • Current flow rate underground: 277A
  • Current flow rate in buried pipe: 238A



Sold per meter.


The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Request info about this product

Single-core ARG16R16 aluminum conductor cable 1x120 sq. mm 0.6/1KV

€4.03 Tax included
€4.03

Single-core ARG16R16 aluminum conductor cable 1x120 sq. mm 0.6/1KV

€4.03
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 113
logo priority: 22
Altre disponibilità dal produttore
qty

Single-core ARG16R16 aluminum conductor cable 1x120 sq. mm 0.6/1KV

€4.03

Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Single-core energy cable with aluminum conductor, insulated with high-modulus ethylene-propylene rubber of G16 quality, under PVC sheath, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).



Features:

  • Conductor: rigid aluminum cord, class 2
  • Insulation: High-modulus ethylpropylene rubber compound, quality G16
  • Outer sheath: PVC compound of R16 quality
  • Rated voltage Uo/U: 0.6/1 kV
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (in the absence of mechanical stress)
  • Minimum installation temperature: 0°C
  • Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 6 times the maximum outer diameter




Conditions of use: For energy transport in industrial and/or residential construction. Suitable for use indoors in even wet rooms or outdoors; fixed laying on masonry and metal structures. Also permitted for underground laying.

There are no reviews

Data sheet

Colour:
Grey
Diameter:
13,1mm
Type:
Aluminum cables
Section:
120mmq
With yellow/green:
No
Number of cables:
1
