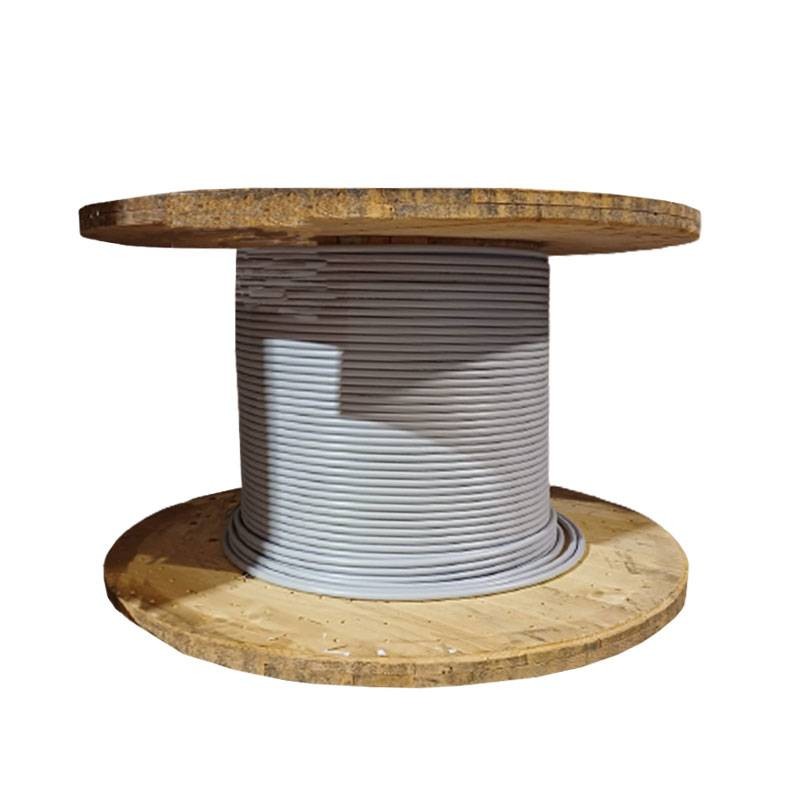

Single-core ARG16R16 aluminum conductor cable 1x70 sq. mm 0.6/1KV

Brand: Cavi

Cod: 9X9 ARG161X70 EAN:

Single-core ARG16R16 aluminum conductor cable with the following characteristics:

Rated voltage Uo/U: 0.6/1 kV
Conductor diameter: 9.9mm
Insulation thickness: 1.1mm
Sheath thickness: 1.4mm
Approximate production diameter: 14.9mm
Maximum electrical resistance at 20°: 0.443 ohm/km
Current carrying capacity In free air: 218A
Current rating In pipe in air: 175A
Current flow rate buried 20°: 204A
Current flow rate In buried pipe 20°: 173A

The selling price is intended per meter.

Data sheet ARG161X70 IT-EN

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable

Single-core ARG16R16 aluminum conductor cable 1x70 sq. mm 0.6/1KV

€2.64 Tax included

€2.64

Single-core ARG16R16 aluminum conductor cable 1x70 sq. mm 0.6/1KV

€2.64
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 625

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

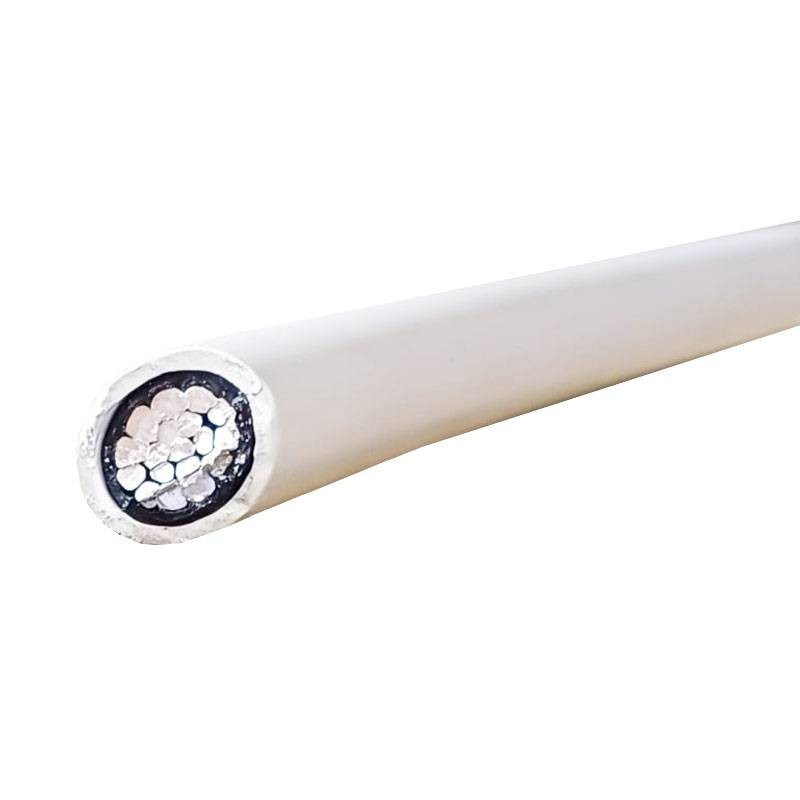

Single-core energy cable with aluminum conductor, insulated with high-modulus ethyl propylene rubber of G16 quality, under PVC sheathing, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).

Features:

Conductor: rigid aluminum cord, class 2
Solant: High-modulus ethyl propylene rubber compound, quality G16
Outer sheath: PVC compound of R16 quality
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C (in the absence of mechanical stress)
Minimum installation temperature: 0°C
Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 6 times the maximum outer diameter

Conditions of use:

For energy transport in industrial and/or residential construction
Suitable for use indoors in even wet rooms or outdoors; fixed installation on masonry and metal structures
Also permitted for underground laying
