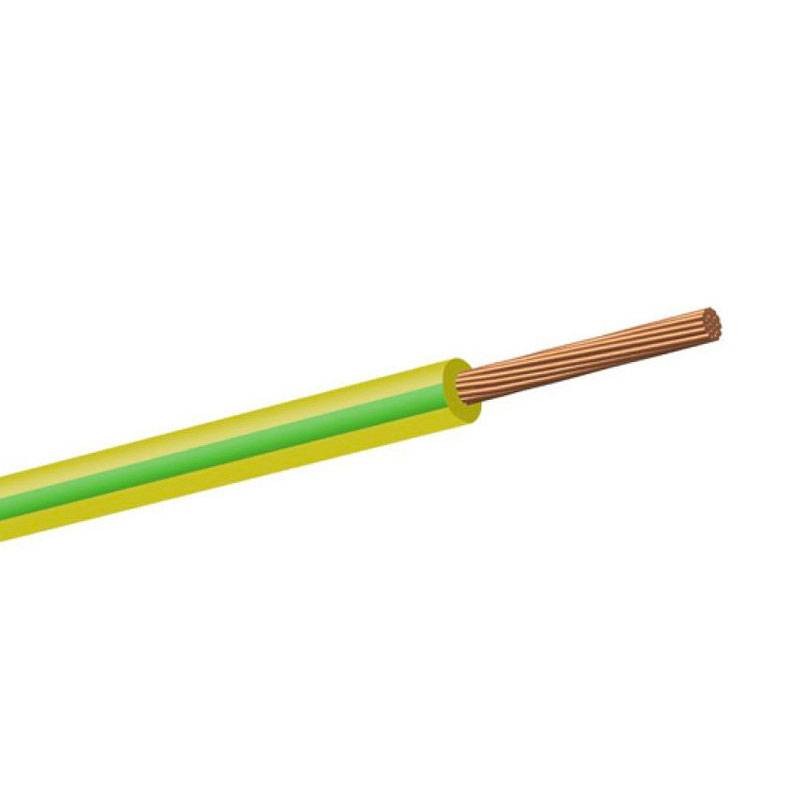

FG17 Cable 1x70 mmq 450/750 V with Yellow/Green
9X9 FG171X70GV
FG17 1x70 sq mm 450/750 V cable with Yellow/Green with the following characteristics:
- Diameter: 16 mm
- 1 conductor
- 70 sq. mm cable section
- Max electrical resistance at 20°C: 0.206 ohm/ km
- Current carrying capacity at 30°C in tube in air: 269A
Sold by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
FG17 Cable 1x70 mmq 450/750 V with Yellow/Green
€11.96
Tax included
€11.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1149
: 123
Pay in installments with Klarna
Two-year warranty
Energy cable insulated with G17-quality elastomeric compound, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).
Features:
- Rated voltage Uo/U: 450/750 V
- Maximum operating temperature: 90°C
- Minimum operating temperature: -30°C (in the absence of mechanical stress)
- Minimum installation temperature: -15°C
- Maximum short-circuit temperature: 250°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
Conditions of use: Especially suitable in places with fire hazards and high presence of people. For installation within exposed or recessed piping or similar closed systems. For fixed and protected installation within lighting fixtures or switching and control equipment. When the installation is protected within switchgear and control equipment these cables are permitted for voltages up to 1000 V AC or 750 V DC to ground. The 1 mm² cross-section is intended only for electrical circuits of elevators and hoists or for internal connection of switchgear for signaling and control. Not suitable for outdoor installation. (ref. IEC 20-40).
There are no reviews
Data sheet
- Colour: Yellow Green
- Section: 70mmq
- With yellow/green: Yes
- Number of cables: 1
