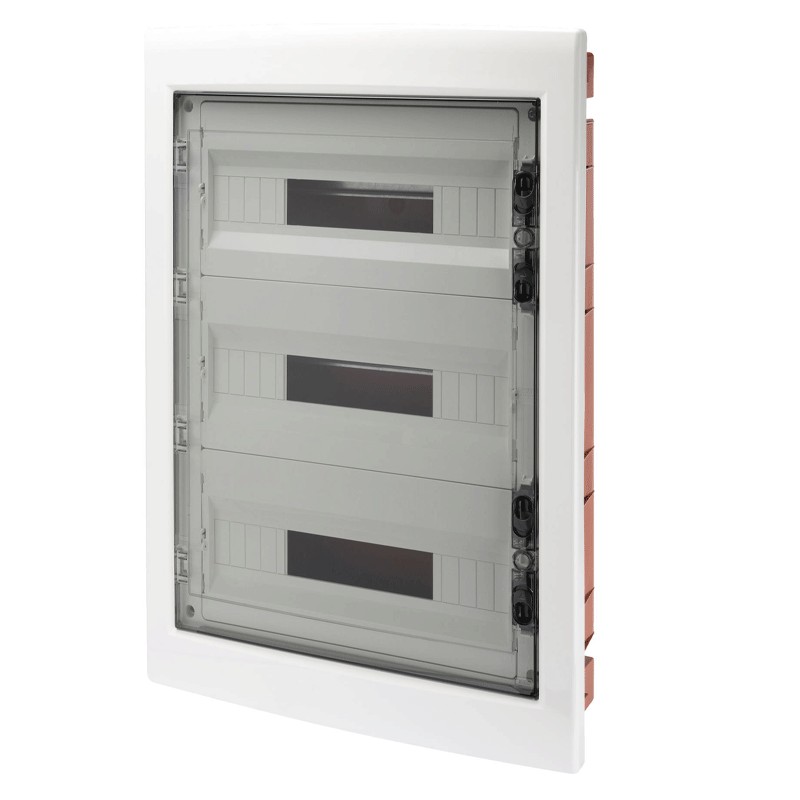

Flush-mounted switchboard Gewiss 18x3 modules transparent smoke IP40 GW40610
GEW GW40610
8011564062535
Gewiss flush-mounted switchboard, with the following features:
- 54 modules (on three rows)
- Degree of protection IP40
Article complete with recessed box
Flush-mounted switchboard Gewiss 18x3 modules transparent smoke IP40 GW40610
€108.78
Tax included
€108.78
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 72
: 3
Pay in installments with Klarna
Features:
- Gewiss Series
- Insulation voltage 750V
- Rated current 125A
- Rated voltage 400V
- Power dissipation 62W
- Glow wire resistance 650 °C
- 54 modules (on three rows)
- Degree of protection IP40
- Insulation class II (according to IEC 61140 standard)
- Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49
- Thermopressure with ball 70 °C
- Switchboard colour white RAL 9016
- Colour of door transparent smoke
- Operating temperature -15 +60 °C
- Type Material Halogen free according to EN 60754-2
- Impact resistance IK08
- Installation for masonry
- With windowed panels and removable frame
- External dimensions BxHxD 465x680x95 mm
- Article complete with recessed box
Data sheet
- Type: Recessed
- Modules: 18
- Degree of protection: IP40
- Model: With door
