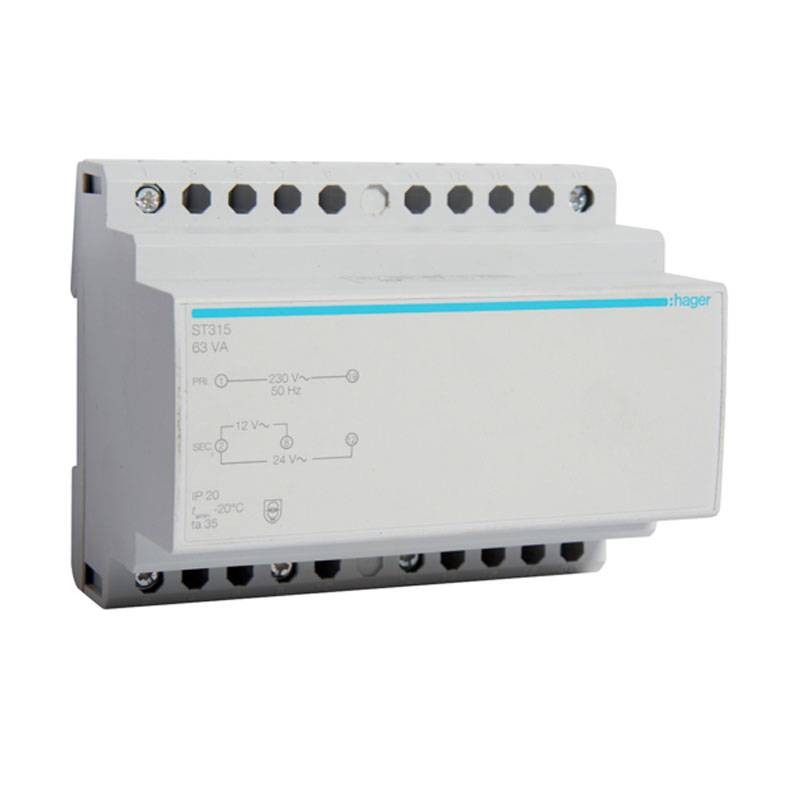

Hager Modular Transformer 230V 12 - 24V Ac 63 Va 6 Modules ST315
HAG ST315
Hager Modular Transformer with the following characteristics:
- VA power consumption 63VA
- Rated operating voltage AC 230V
- Rated insulation voltage 4000 V
- Secondary output voltage 2 24 V
- No-load voltage at secondary 14.2 / 26.5 V
- Rated voltage at secondary 12 / 24 V
Hager Modular Transformer 230V 12 - 24V Ac 63 Va 6 Modules ST315
€69.72
Tax included
€69.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Further Hager circuit breaker combinations:
Features:
- Mounting mode DIN rail type O (symmetrical)
- Suitable for DIN rail mounting
- Rated frequency 50 Hz
- Current at secondary 2: 2.63 A
- Current at secondary 5.25 A
- Safety transformer
- Dimensions: Depth of installed product 68 mm - Height of installed product 85 mm - Width of installed product 105 mm
- Tightening torque 1.2Nm
- Suitable for wall-mounted installation
- DIN rail mounting type
- Minimum cross-section with flexible cable 4mm²
- Minimum cross-section with rigid cable 6mm²
- Maximum cable length for gate opening 0.5 A max. 100 m
- Maximum cable length for gate opening 1 A max. 50 m
- Protected against short circuits
- Standards Text EN 61558-2-6 - Reference standards EN 61558-2-6
- Enclosure degree of protection IP20
- Thermal protection
- Operating temperature -20/+35 °C
There are no reviews
Data sheet
- Type: Modular Transformers
- Modules: 6
- Power: 63VA
- Vin: 230V
- Vout: 12V-24V
