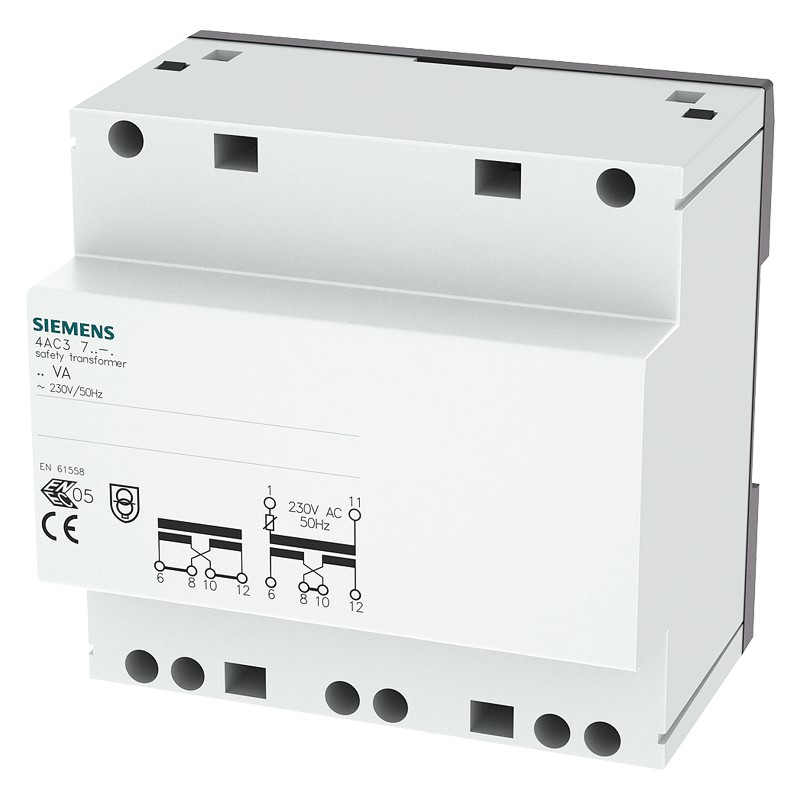

Siemens 63VA 2X12/24V safety transformer 4AC37630
SIE 4AC37630
4001869438368
Siemens safety transformer, with the following characteristics:
- Input voltage 230 Vac
- Exported active power / max 63 W
- Output voltage nominal value 12 V - nominal value 24 V
- Power dissipation at nominal current value with AC in hot operating state for each pole 14 W
- Output current max 5.2 A, nominal value 2.6 A
- 5 modules
Siemens 63VA 2X12/24V safety transformer 4AC37630
€97.50
Tax included
€97.50
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Pay in installments with Klarna
Features:
- Siemens series
- Input voltage 230 Vac
- Exported active power / max 63 W
- Output voltage nominal value 12 V - nominal value 24 V
- Power dissipation at current rating with AC in hot operating state per pole 14 W
- Output current max 5.2 A, nominal value 2.6 A
- 5 modules

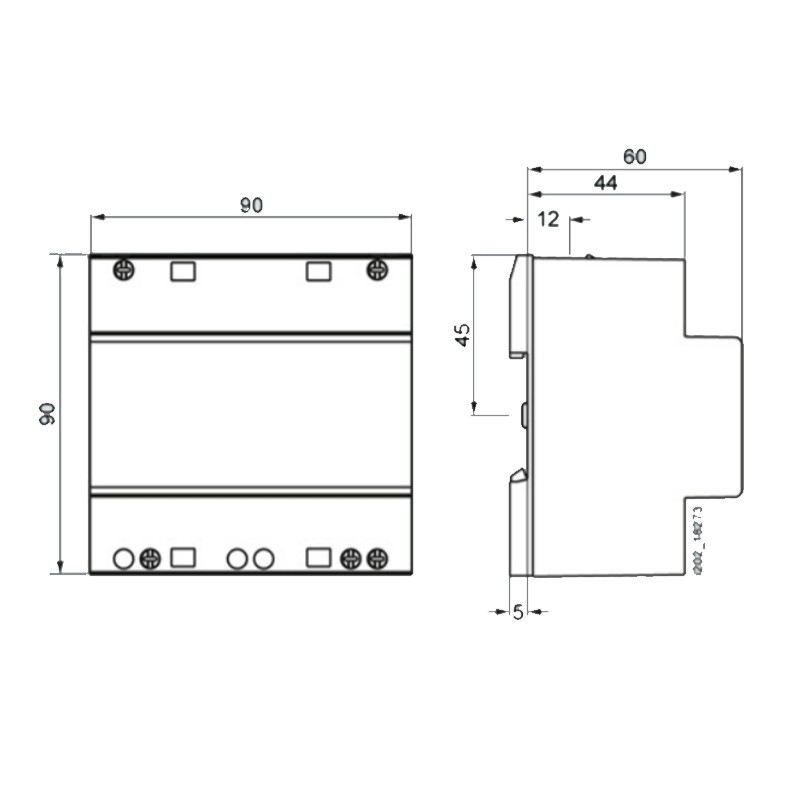

- Height 64 mm
- Width 90 mm
- Length 90 mm
- Fixing type row mounting yes
There are no reviews
Data sheet
- Type: Modular Transformers
