Fracarro signal shunt 1 output CAD11 220451
FRA 220451
8016978013944

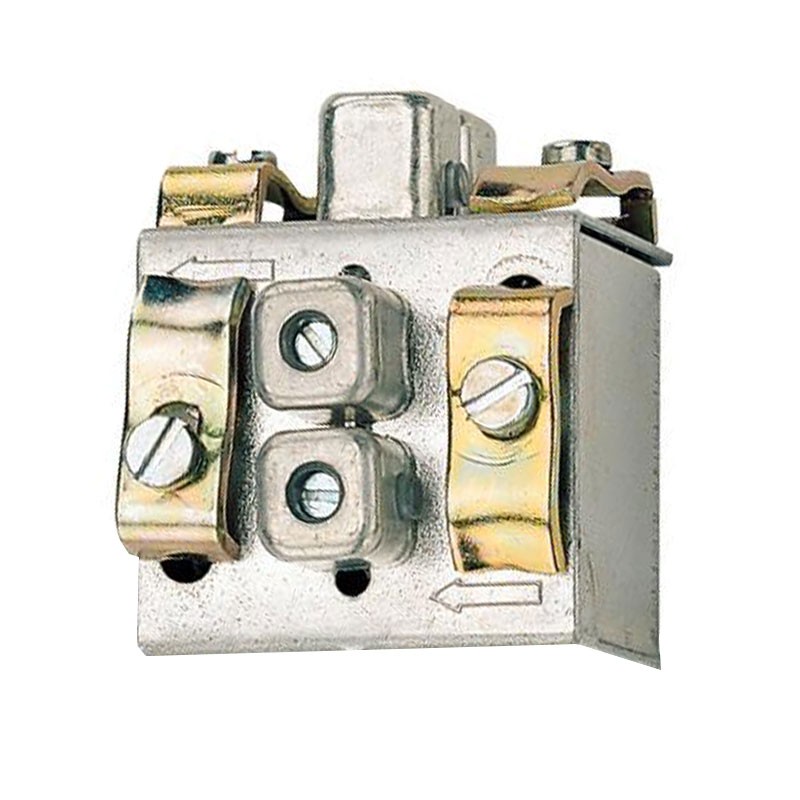

Fracarro CAD11 directional inductive shunt, 1-way in TV band (47-862MHz).
Fracarro signal shunt 1 output CAD11 220451
€7.69
Tax included
€7.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 100
: 1
Pay in installments with Klarna
Features:
- Fracarro series
- Passage loss Db: 0.1/0.7
- Input V.S.W.R.: <1.1
- Metal case with screw terminals for complete shielding
- High separation between the outputs and "tilted" frequency response to compensate for cable attenuation
- 1 input, 1 pass-through output and 1 derived output
Branch output separation
- 47-68 MHz dB: 27
- 174-230 MHz dB: 17
- 470-606 MHz dB: 11
- 606-862 MHz dB: 12
Output separation:
- 47-68 MHz dB: 45
- 174-230 MHz: dB 38
- 470-606 MHz: dB 36
- 606-862 MHz: dB 35
Ottimo prodotto affidabile - prezzo molto conveniente
prodotto ok secondo specifiche
Data sheet
- Type: Shunts
- Version: 1 output
