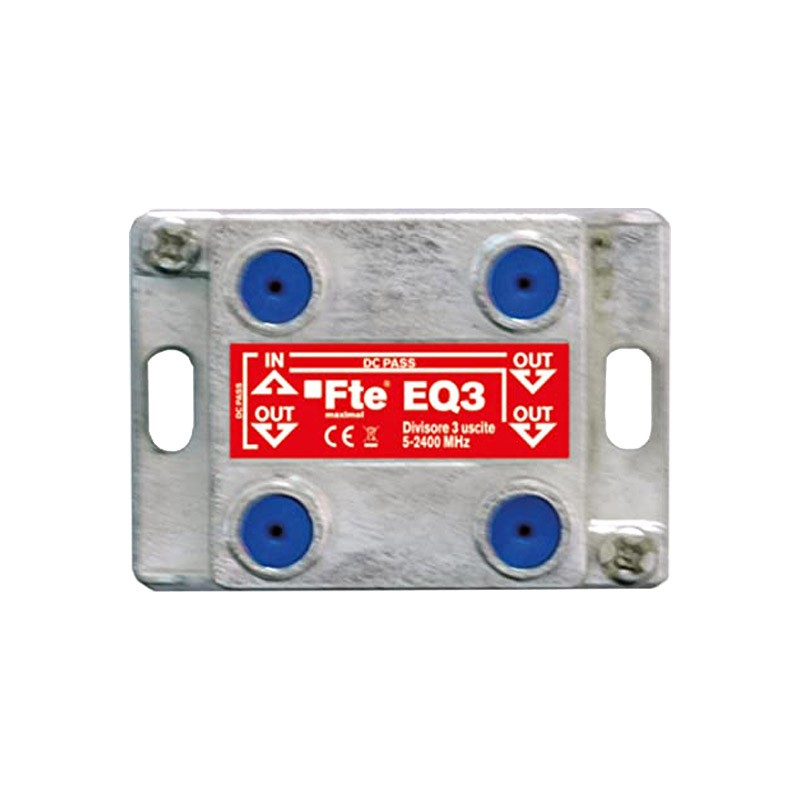

FTE Terrestrial and Satellite 3-Way Divider EQ3
FTE EQ3
8436018447902
Armored FTE inductive terrestrial and satellite divider from 5 to 2,400 MHz, with three outputs and typical attenuation of 6.5 dB.
FTE Terrestrial and Satellite 3-Way Divider EQ3
€5.77
Tax included
€5.77
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 52
: 5
Pay in installments with Klarna
Strengths:
- Working band 5 ÷ 2400 MHz
- Low passage loss
- High shielding efficiency, class A
- High isolation between outputs
- DC passage between outputs and input
- Compact dimensions.
Applications:
- Allows to divide the signal on multiple user sockets in the apartment, where they are to be installed and can also be used as a riser divider to distribute the signal for example in multi-storey apartment buildings or, in facilities where multiple riser sub-columns need to be created.
Technical Data
- N° outputs 3
- Working frequencies - MHz 5 ÷ 2400
- Loss of passage TV 47 ÷ 862 dB 7,5
- Loss of passage SAT 950 ÷ 2150 MHz - dB 10,5
- Type of connection F
- Isolation of TV outputs 47 to 862 dB 23
- Isolation of SAT outputs 950 ÷ 2150 - dB 18
- Current passage OUT-IN
- Electromagnetic shielding - dB > 100 (class A)
- Return loss - dB > 9
- Operating temperature - ° C -10 ÷ 55
- Dimensions ( W x H x D) - mm 45 x 27 x 35
- Weight - g 50
- Complies with EN 50083-2 standards.
There are no reviews
Data sheet
- Type: Dividers
