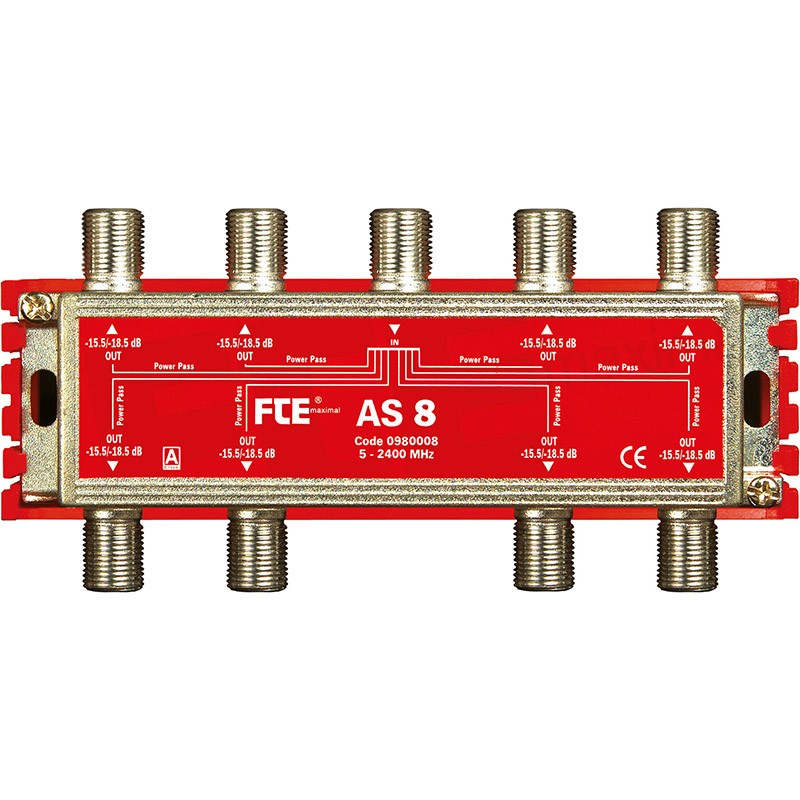

TV splitter FTE class A terrestrial and satellite 8 outputs 16 dB
FTE AS8
8436018440453
Inductive terrestrial and satellite FTE armored divider from 5 to 2,400 MHz, eight outputs with 16.5 dB typical attenuation
TV splitter FTE class A terrestrial and satellite 8 outputs 16 dB
€12.75
Tax included
€12.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 32
: 5
Pay in installments with Klarna
Strengths:
- Working band 5 ÷ 2400 MHz
- Low passage loss
- High shielding efficiency, class A
- High isolation between outputs
- DC passage between outputs and input
- Compact dimensions
Applications:
- Working band 5 ÷ 2400 MHz
- Low loss of passage
- High shielding efficiency, class A
- High isolation between outputs
- DC passage between outputs and input
- Compact dimensions
Technical Data
- No. of outputs 8
- Working frequencies - MHz 5 ÷ 2400
- Passage loss TV 47 ÷ 862 dB 13,5
- Passage loss SAT 950 ÷ 2150 MHz - dB 17
- Connection type F
- Isolation of TV outputs 47 to 862 dB 20
- Isolation of SAT outputs 950 to 2150 - dB 20
- Current passage OUT-IN
- Electromagnetic shielding - dB > 100 (class A)
- Return loss - dB 22
- Operating temperature - ° C -10 ÷ 55
- Dimensions ( W x H x D) - mm 122 x 60 x 27
- Weight - g 162
There are no reviews
Data sheet
- Type: Dividers
