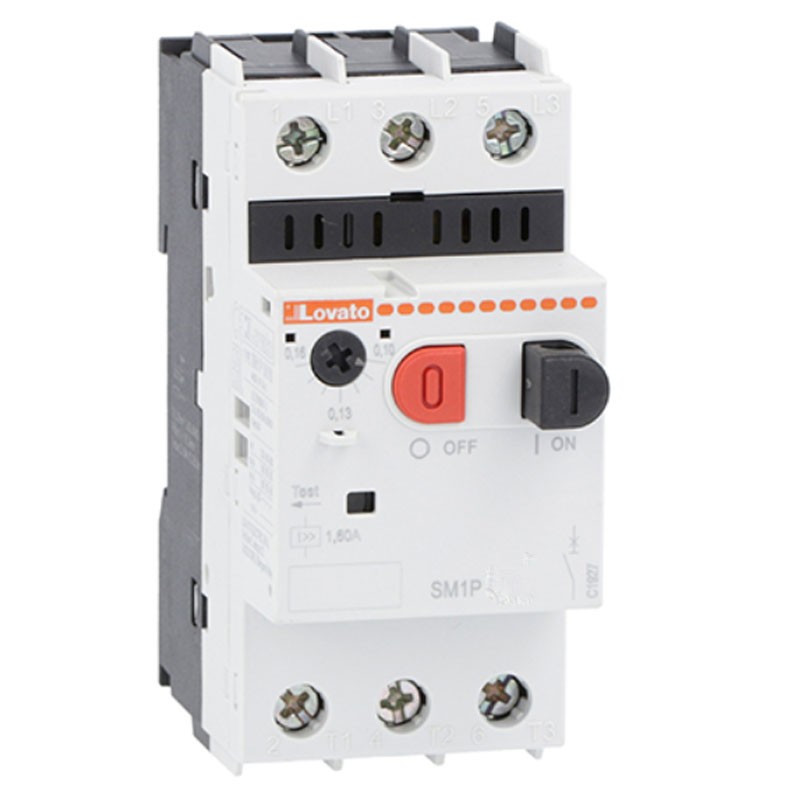

Lovato motor protector int. power A 400V 100kA 4 to 6.5A SM1P0650
LOV SM1P0650
8013975216187
Lovato motor protection switch, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp kV: 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 4...6.5
- Rated current (In): UN 6.5
- Magnetic trip: 13 x In
- Total power dissipation: 1.99W
- Number of Poles: 3
Lovato motor protector int. power A 400V 100kA 4 to 6.5A SM1P0650
€37.38
Tax included
€37.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 161
: 56
Pay in installments with Klarna
Other features:
- Lovato Series
- Magnetic protection: yes
- Thermal protection: yes
- Phase failure detection: yes
- Trip class: 10A
- IEC usage category: UN
- Mechanical life: 100000 cycles
- Electrical life: 100000 cycles
- Tightening torque for Nm terminals: min 2.5 - max 3
- Tightening torque for terminals Ibin :min 1.8b - max 2.2
- Screwdriver: PH2
- Protection of power terminals according to IEC/EN 60529: IP20
- Cable stripping length: main circuit mm: 1
- Maximum altitude m: 3000
- Normal operating position: Vertical plane - any permissible
- Fixing: Screw / DIN 35mm rail
- Weight: 350 grams
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C -50 - max °C +80
- Compensation temperature: min °C-20 - max °C +50
There are no reviews
Data sheet
- Type: Motor protection
- Poles: 3P
