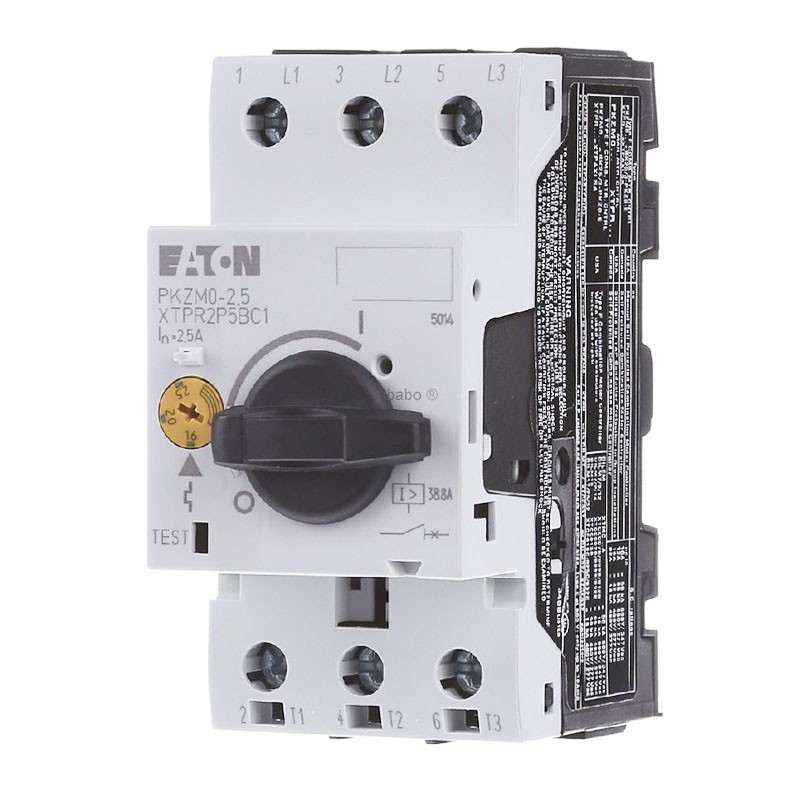

Motor protection Eaton PKZM0-2,5 1,6-2,5 3 Modules 3-Pole 072736
EAO 072736
4015080727361
The breaker for motor protection Motor protection Eaton PKZM0-2,5-Release overload pressure regulating 1,6-2,5 To 3 Modules 3-Pole, with overload thermal and adjustable magnetic release (instantaneous, sensitive to the lack of phase, screw mounting.
Motor protection Eaton PKZM0-2,5 1,6-2,5 3 Modules 3-Pole 072736
€71.22
Tax included
€71.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 17
: 2
Pay in installments with Klarna
Features:
- Height 93 mm
- without auxiliary switch integrated
- with thermal protection
- without undervoltage release integrated
- the current limit nominal switching to the short circuit at 400 V, AC: 150 kA
- nominal continuous current Iu: 2.5 A
- the execution of the drive element: knob
- degree of protection IP20
- the range of adjustment of the activator short-circuit non-time delay: 39-39 To
- adjustment range of trip unit overload: 1.6-2.5 A
- Width 45 mm
- poles 3
- operating power rated for AC-3, 230 V: 0.37 kW
- operating power rated for AC-3, 400 V: 0.75 kW
- depth: 76 mm
- sensitive to phase failure
- intervention technique: termomagnetico
- operating voltage nominal: 690-690 V
- type of connection circuit in the main electrical: screw connection
- the type of construction of the luminaire: recessed, a technique for fixed installation.
Data sheet
- Type: Motor protection
- Modules: 3
- Poles: 3P
- Power: 150KA
- Amps: 1.6-2.5 A
