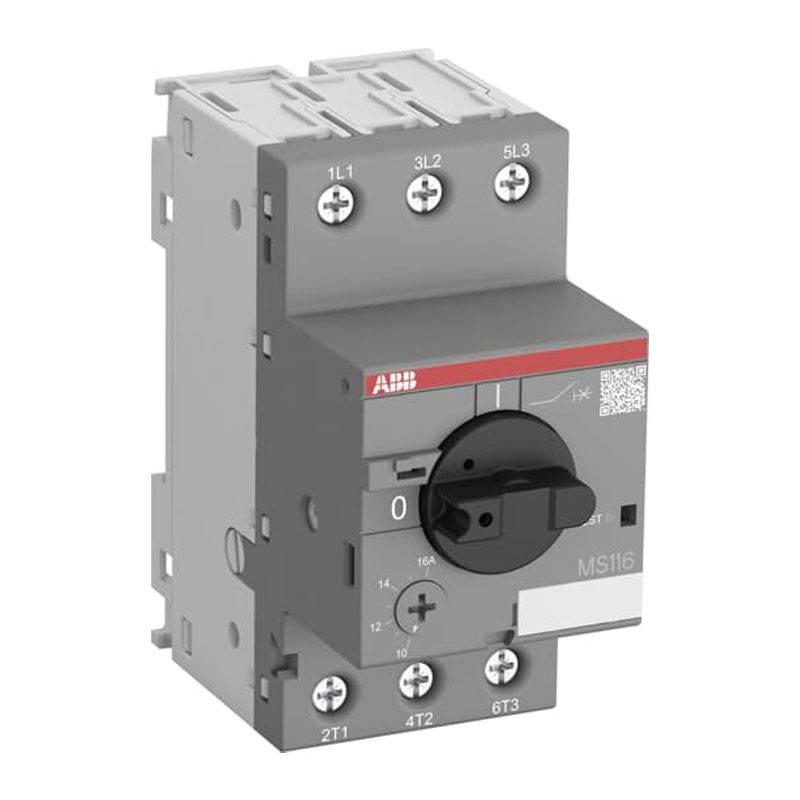

Abb MS116-6.3 4-6.3A 3P 2.5 modules EP 089 5 motor saver
ABB EP 089 5
4013614320323
Abb motor protection switch, MS116-6.3 series, with the following characteristics:
- Rated service short-circuit rating (230 Vac) 50 kA
- Rated extreme short-circuit rating (230 Vac) 75 kA
- Rated instantaneous short-circuit current setting 78.8 A
- Setting range 4/6.3A
- Rated operating voltage Main circuit 690 Vac
- Rated operating current: 6.3A
- Rated impulse withstand voltage (Uimp) Main Circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- 3 poles
- 2.5 modules
Abb MS116-6.3 4-6.3A 3P 2.5 modules EP 089 5 motor saver
€56.88
Tax included
€56.88
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 84
: 2
Pay in installments with Klarna
The motor saver is installed on the cable supplying the motor and, when the motor stalls due to a mechanical effect or (in three-phase systems) because a phase fails, it detects excessive absorption and automatically shuts off the electrical power, safeguarding the integrity of the motor.
Characteristics:
- Rated operating current AC-3 (Pe) (400 V) Three phases 2.2 kW
- Rated operating current AC-3e (Pe) (400 V) Three Phases 2.2 kW
- Rated operating current AC-3 (Ie) 6.3 A
- Rated operating current AC-3e (Ie) 6.3 A
- Rated operating current DC-5 (Ie) 6.3 A
- Rated Frequency Main Circuit 50 Hz/60 Hz
- Rated impulse withstand voltage (Uimp) Main Circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- Power loss at Rated Operating Conditions per Pole 0.7 ... 1.8 W
- Conventional free air thermal current (Ith) Main Circuit 6.3A
- Degree of protection housing IP20 - Main Circuit Terminals IP10
- Pollution degree 3
- Electrical life 100000 cycles
- Mechanical life 100000 cycles
- Terminal type Screw terminals
- Main Circuit Tightening Torque 0.8 ... 1.2 N-m
- Main circuit cable stripping length 9 mm
- Recommended screwdriver Pozidriv 2
- Mounting position Position 1 to 6
- Type of actuator rotary handle
- Contact position indication ON / OFF / TRIP
- Ambient temperature Operating -25 ... +70 °C - In storage -50 ... +80 °C
- Maximum allowable operating altitude 2000 m
- Width: 45 mm
- Height: 90 mm
- Depth: 85.6 mm
- Weight: 265 grams
Cable sections-main circuit:
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
- Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
- Flexible 1/2x 0.75 ... 2.5 mm²
- Rigid 1/2x 1 ... 4 mm²
DIN rail mounting:
- TH35-15 (35 x 15 mm Mounting Bar) according to IEC 60715
- TH35-7.5 (35 x 7.5 mm Mounting Bar) according to IEC 60715
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 2.5
- Poles: 3P
- Power: 50KA
- Amps: 4-6.3A
