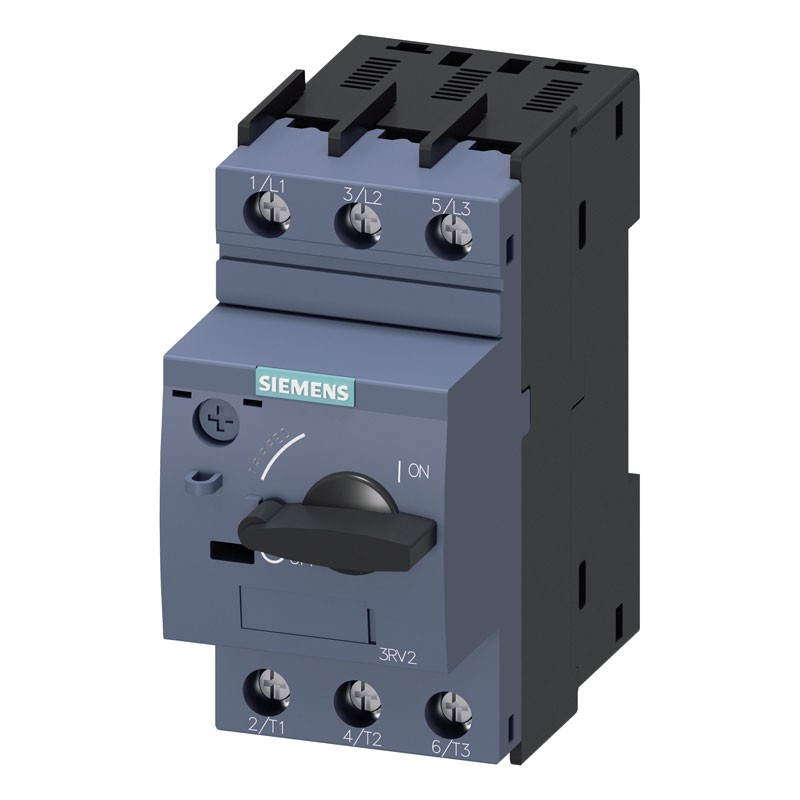

Siemens S00 3RV1 0.7 - 1A 100KA motor circuit breaker 3RV20110JA10
SIE 3RV20110JA10
4011209712393
Siemens motor protection switch with the following characteristics:
- Insulation voltage with pollution degree 3 with AC rated value: 690 V
- Rated value impulse withstand voltage: 6 kV
- Number of poles per main circuit: 3
- Settable trip value for current-dependent overload release current: 0.7 ... 1A
- Rated value frequency of use: 50 to 60 Hz
- Rated value operating current: 1A
Siemens S00 3RV1 0.7 - 1A 100KA motor circuit breaker 3RV20110JA10
€39.64
Tax included
€39.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 147
: 22
The motor saver is installed on the cable supplying the motor and, when the motor stalls due to a mechanical effect or (in three-phase systems) because a phase fails, it detects excessive absorption and automatically shuts off the electrical power, safeguarding the integrity of the motor.
Features:
- Siemens series
- Insulation voltage with pollution degree 3 with AC rated value 690 V
- Impulse withstand voltage rated value 6 kV
- Utilization voltage rated value 690 V
- Frequency of use rated value 50/60 Hz
- Power dissipation with AC current rated value in hot operating state 5.5W - in AC in hot operating state for each pole 1.8W
- Design size S00
- Mechanical service life (switching cycles) of main contacts tip 100 000 - of auxiliary contacts tip 100 000
- Installation altitude for altitude above sea level max 2000 m
- Ambient temperature during operation -20/+60 °C - during storage -50/+80 °C - during transport -50/+80 °C
- Short-circuit service interrupting capacity (Ics) at AC 100 kA
- Front side degree of protection IP20
- Pozidriv screwdriver bit size 2
There are no reviews
Data sheet
- Type:
- Motor protection
- Modules:
- 2.5
- Poles:
- 3P
- Power:
- 100KA
- Amps:
- 0,7 - 1A
