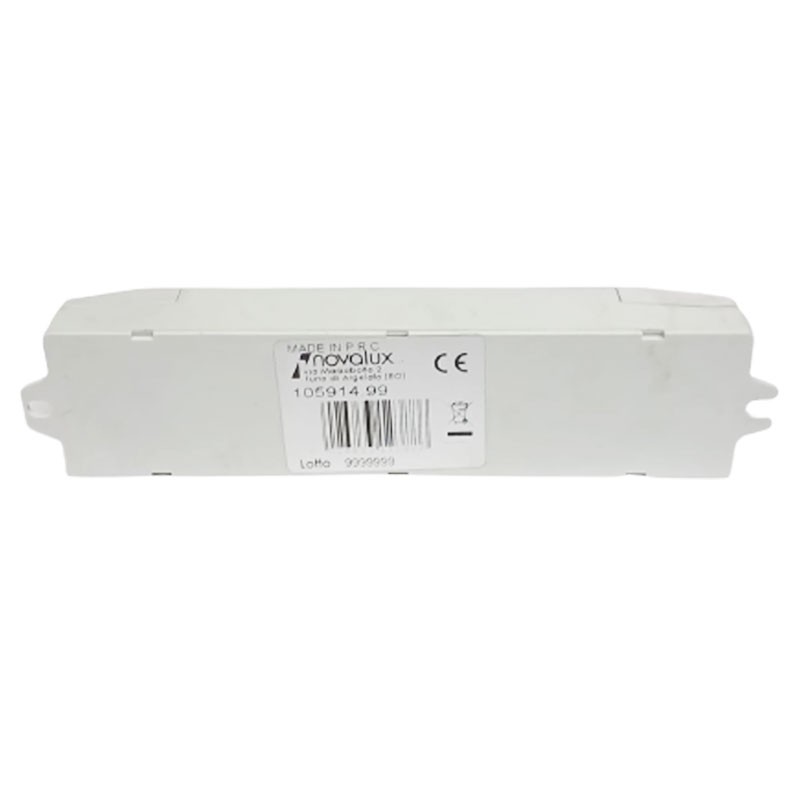

Novalux Dimmer Controller Interface for led strip 12-48V 105914.99
NOX 105914.99
8026833123886
Novalux Dimmer Controller Interface for led strip, DALI/1-10V/0-10V/PUSH dimming
- Actual luminaire power: MAX 12A - 24V 288W - 48V 576W
- Supply voltage: 24-48 Vdc
Novalux Dimmer Controller Interface for led strip 12-48V 105914.99
€62.77
Tax included
€62.77
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 28
: 3
Frequently bought together
Brightness controller for LED drivers in 12-24-48V voltage:
- DALI operating modes, Push,
- 1-10V, 0-10V, Slave
- Operation mode is selected via DIP SWITCH located below the terminal cover
- Logarithmic brightness adjustment 0- 100% via DALI signal, via Push function,
- 1-10V or 0-10V interface (the minimum level in Push is different from 0 to distinguish it from OFF)
- Possibility to select the frequency of the output PWM
- Dimensions Length 164mm - Thickness 38mm - Height 25mm - Diameter 44mm
There are no reviews
Data sheet
- Type:
- Dimmer
