Best seller

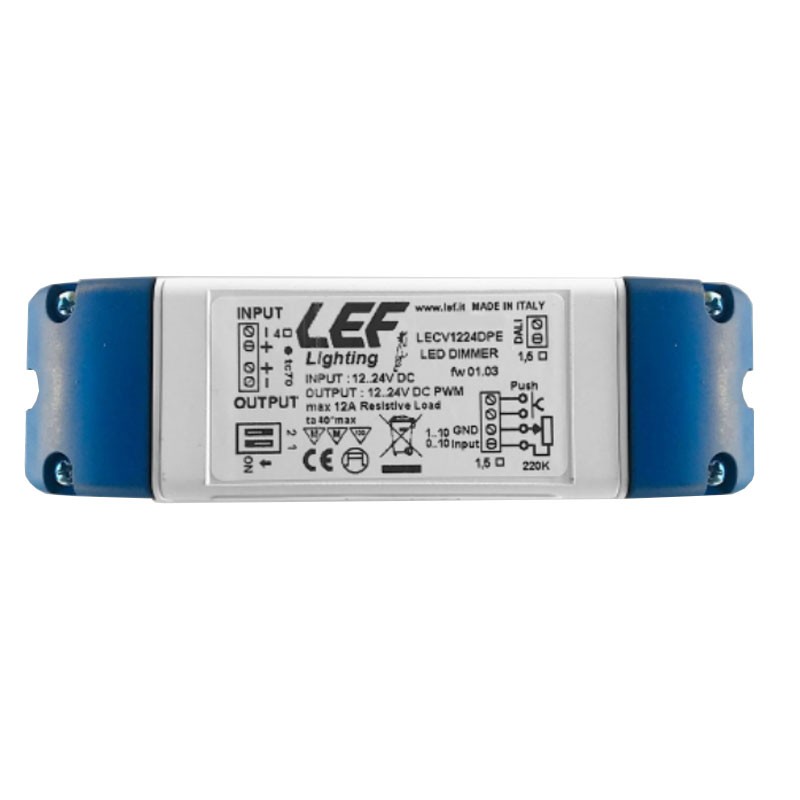

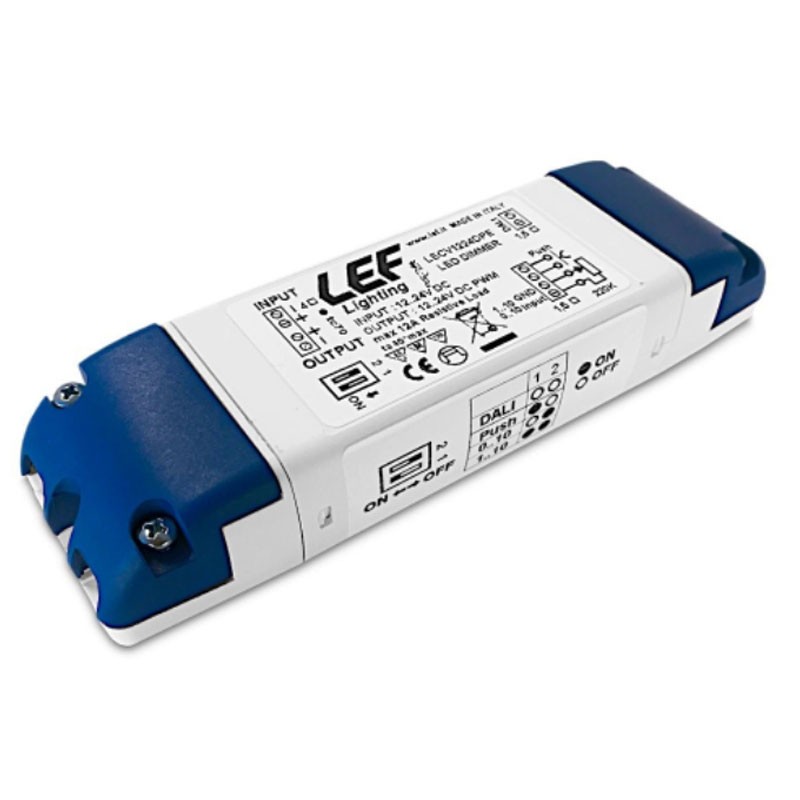

LEF 12-24VDC Led Dimmer with Button and Dali LECV1224DPE
LEF LECV1224DPE
8054521532351
Dimmer interface for LEF LED modules in 12-24VDC voltage with push button and Dali:
- Input voltage 12-24Vdc
- Output voltage 12-24Vdc
- Output current 12A
- Output power 144W (12v) - 288W (24V)
- Master version
LEF 12-24VDC Led Dimmer with Button and Dali LECV1224DPE
€25.86
Tax included
€25.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 26
Brightness adjustment by:
- push button (PUSH no voltage)
- DALI signal
- 1-10V signal (active or passive)
- 0-10V signal (active or passive)
- 220KOhm potentiometer (Linear/Logarithmic) (selection via micro-switches, see Dimming Modes table)
- SLAVE function via LEPWM-REP
Features:
- Plastic enclosure
- Device for independent use
- Electrical class of protection II
- Degree of protection IP20
- PWM output voltage frequency: 300Hz
- Input voltage: 12-24Vdc
- Output voltage 12-24Vdc
- Over temperature protection (OTP)
- Short circuit protection (SCP)
- Open circuit protection (OCP)
- Power factor factor (PFC) 0.93
- Operating temperature: Ta -10°C/+40°C
- Maximum temperature at point Tc 70°C
There are no reviews
Data sheet
- Type:
- Dimmer
- Voltage:
- 12/24V
- Shape:
- Rectangular
- Degree of protection:
- IP20
- Amps:
- 12A
- Dimmable:
- Si
