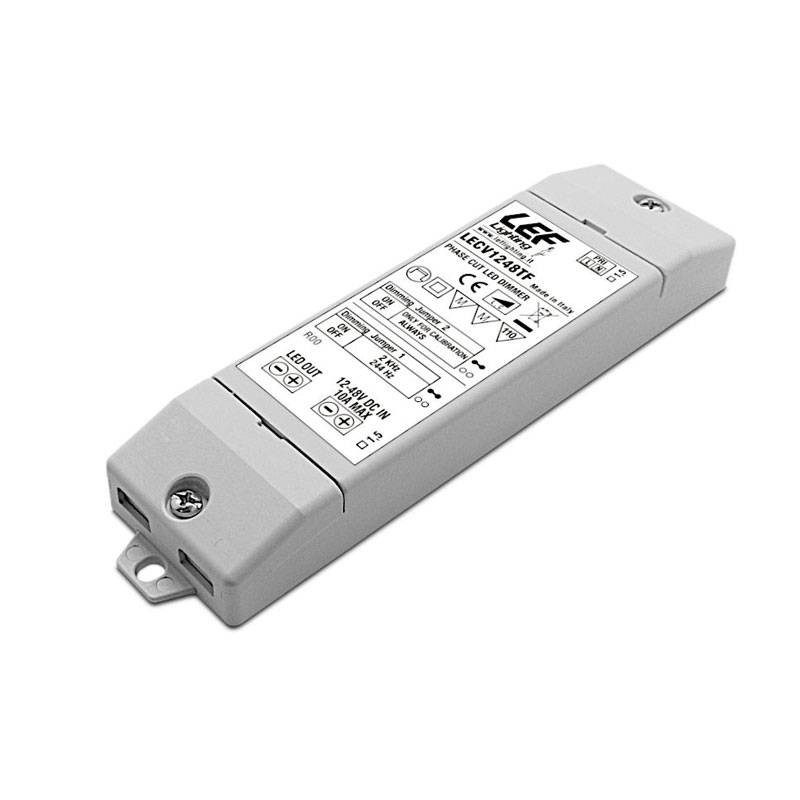

LEF 12-24-48Vdc IP20 LECV1248TF dimmer interface repeater
LEF LECV1248TF
8054521539275
Repeater for LEF LED dimming interface with Phase Cut (TF) control with the following characteristics:
- Input voltage: 12-24-48Vdc
- Output voltage: 12-24-48Vdc
- Output current 12-24-48 Vdc: 10A
- Output power 12-24-48 Vdc: 120-240-480W
- Brightness controller for LED modules 12-24-48Vdc
- Phase-cut brightness control with modes: TRIAC Leading-Edge - IGBT Trailing-Edge
- PWM output voltage frequency: 244Hz - 2000Hz (2KHz)
- Degree of protection: IP20
LEF 12-24-48Vdc IP20 LECV1248TF dimmer interface repeater
€39.65
Tax included
€39.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
Pay in installments with Klarna
Features:
- Plastic container
- Device for independent use
- Electrical protection class II
- Degree of protection IP20
- Possibility of adapting the dimming range to the DIMMER used (settable by jumper)
- Open circuit protection (OCP)
- Overtemperature protection (OTP)
- Short circuit protection (SCP)
- Ambient operating temperature Ta -25°C ÷ +50°C
- Maximum temperature at point Tc 70°C
There are no reviews
Data sheet
- Type: Dimmer
- Voltage: 12-24-48V

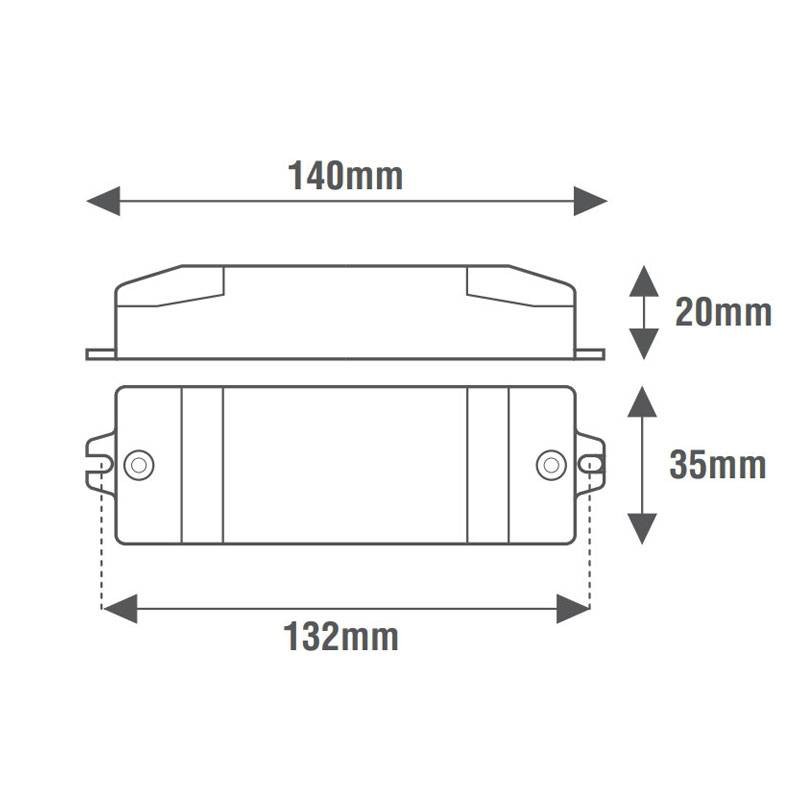

- Shape: Rectangular
- Degree of protection: IP20
- Watts: 201 to 500W
- Amps: 10A
