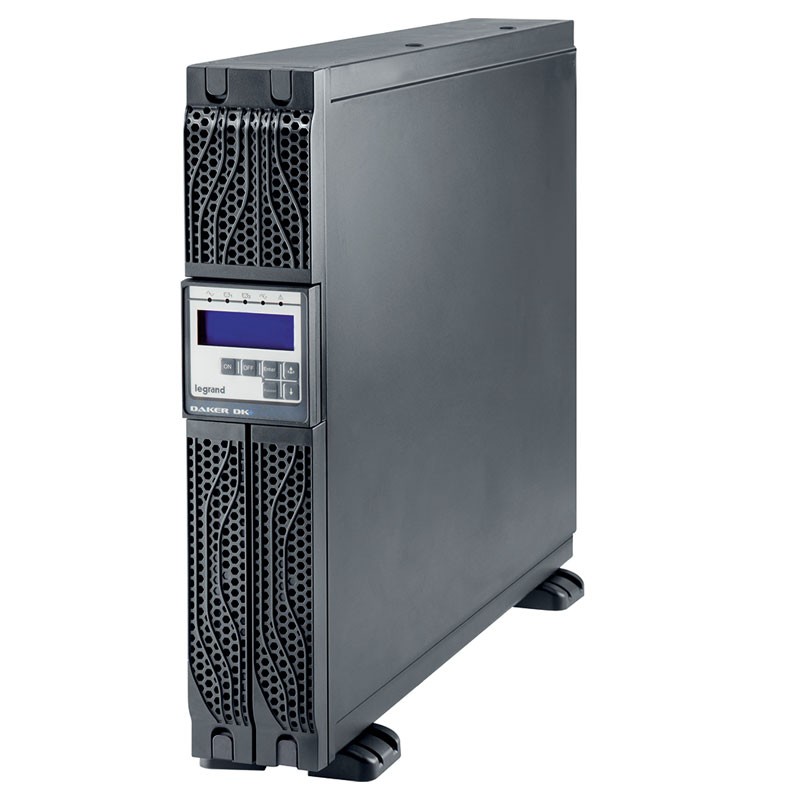

UPS Bticino Legrand Uninterruptible Power Supply DAKER DK 3000VA 310172
LEG 310172
3414970826947
Bticino Legrang single-phase convertible Uninterruptible power supply
UPS DAKER DK Plus 3000VA, with the following characteristics:
- Reference Standard: EN 62040-1/2/3
- Rated power: 3000 VA
- Active power 2700W
- Degree of protection IP21
- Operating temperature: 0/+40°C
- Relative humidity (%) 20÷80 % non-condensing
- 8 minutes of operating time
- Model: with batteries
- Noise level at 1 mt (dBA) < 50
- Heat Dissipation (BTU/h) 818
- EN Standards: 62040-1, EN 62040-2, EN 62040-3
- Dimensions in mm: Height 440 - Width 88 - Depth 600
- Net Weight: 30 Kg
- Technology: On Line Double Conversion VFI-SS-111
- Wave Form: Sinusoidal
- UPS architecture: convertible tower and 19" rack
UPS Bticino Legrand Uninterruptible Power Supply DAKER DK 3000VA 310172
€1,125.68
Tax included
€1,125.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
: 2
Pay in installments with Klarna
The Legrand UPS model Daker DK Plus 3000 is an uninterruptible power supply with high-frequency PWM technology, On Line Double Conversion type, through-neutral, Nominal Power 3,000VA - 2700W, equipped with valve-regulated, hermetic type storage batteries, contained within the UPS in a special compartment or in one or more external cabinets, sized to ensure a minimum runtime of 8 minutes at 80% load. Electronics and batteries are contained in only two rack units.
This UPS has an architecture such that it can be installed either in Tower configuration or inside Rack cabinets.
The UPS rectifier consists of a control and regulation circuit (PFC), which in addition to normal rectifier functions provides:
- Automatically correct the load power factor to return it to a value >0.99 already with an applied output load of 20% of the rated load
- Power the inverter without requiring battery power even at very low line voltage
- Ensure total harmonic distortion of the input current THDIin <3% without the addition of additional filters or components
The bypass circuit is designed and implemented in accordance with the following:
- Electromechanical switch
- Microprocessor-controlled command and control logic that provides:
- Automatically transfer the load directly to the primary grid without power interruption when the conditions of overload, overtemperature, out-of-tolerance DC voltage, and inverter fault occur
- Automatically re-transfer the load from primary grid to inverter line, without power interruption, upon the restoration of normal load conditions
- If the primary grid and inverter are not synchronized, the bypass will have to be disabled
Diagnostic and shutdown software (UPS Communicator), when properly installed in a PC connected to the UPS, allows access to all operating data, make adjustments and settings of special functions, and control shutdown of Windows and Linux operating systems. Optional software (UPS SuperviSor) allows hierarchical multiserver shotdown and remote UPS management for any operating system in a heterogeneous network (Windows, Novell, Linux, and popular Unix).
Daker DK Plus 3000 is microprocessor-controlled and is capable of displaying via a control panel and LCD display, alarms and operating modes as described below:
- normal operation
- output frequency not synchronized with input
- battery operation
- bypass operation
- power module failure
- overload
- general fault
- wrong neutral connection
- standby reserve
- end of autonomy
The Daker DK Plus 3000 Static Continuity System has CE marking in accordance with Directives 2014/35, 2104/30 and is designed and manufactured in accordance with the following standards:
- EN 62040-1 "General and safety requirements for UPS used in operator accessible areas"
- EN 62040-2 "Electromagnetic compatibility (EMC) requirements."
- EN 62040-3 "Performance requirements and test methods"
Input:
- 230V Input Voltage
- Input Frequency 50-60 Hz ±5% Autosensing
- Input Voltage Range 160V - 288V at full load
- Input Current THD < 3%
- Input power factor > 0.99
Output:
- 230V Output Voltage ± 1%
- Output Frequency (nominal) 50/60 Hz (settable from LCD panel) +/- 0.1%
- Crest Factor 1:3
- Output Voltage THD < 3%
- Output Voltage Tolerance ±1%
- Bypass Internal automatic bypass (included)
- External maintenance bypass (optional)
Batteries:
- Expansion Autonomy yes
- Number of batteries 6
- Battery type/voltage series 12V 9Ah
- Load autonomy 80% 8 minutes
Communication and Management:
- Display and Signaling Six buttons and five LEDs for real-time monitoring of UPS status
- Communication Ports Serial ports RS232, USB
- Remote Management Available
- SNMP network interface slot
There are no reviews
Data sheet
- Type: Uninterruptible Power Supply UPS
- Rated Power: 3000VA
- Active Power: 2700W
- Endurance: 8 minutes
