Riello Sentinel Dual SDU 5000VA/5000W 14 Online UPS Sentinel UPS CSDU5K0AA700RUA
RIE CSDU5K0AA700RUA
8023251006784
Riello Sentinel Dual SDU Uninterruptible Power Supply UPS:
- Rated power 5000VA
- Active power 5000W
- Rated voltage 220 / 230 / 240220 / 230 / 240V
- VRLA AGM lead acid battery, maintenance free
- Charging time 4-6 hours
Accessory to be purchased separately Riello Multicom CEI 016 interface card for UPS code YSKCC03A.
Riello Sentinel Dual SDU 5000VA/5000W 14 Online UPS Sentinel UPS CSDU5K0AA700RUA
€1,896.91
Tax included
€1,896.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 26
: 1
Frequently bought together
Features:
Input:
- Voltage tolerance V 230 ±20%.
- Minimum voltage V 184
- Rated frequency
- Hz 50 / 60 ±5
- Power factor >0.98
- Current distortion ?5%
BYPASS:
- Voltage tolerance
- V 180 / 264 (selectable in ECO or SMART ACTIVE mode)
- Frequency tolerance Selected frequency ±5% (user selectable)
- Overload times <110% continuous, 130% for 1 hour, 150% for 10 min, over 150% for 3 seconds
OUTPUT:
- Rated power 5000VA
- Active power 5000W
- Rated voltage V 220 / 230 / 240 selectable
- Voltage distortion <1% with linear load / <3% with nonlinear load
- Frequency
- Hz 50 / 60 selectable
- Static variation 1.5%
- Dynamic variation ?5% in 20 msec
- Sinusoidal waveform
- Crest factor
- Ipeak/irms 3:1
BATTERIES:
- VRLA AGM lead-acid type, maintenance-free
- Charging time 4-6 hours
GENERAL SPECIFICATIONS:
- Net weight 45kg
- Gross weight 53kg
- Dimensions (WxDxH) mm 131x640x448 tower - 19x640x3U rack
- Efficiency up to 95% in ON LINE mode, 98% in ECO mode
- Protections Overcurrent - short circuit - overvoltage - undervoltage - thermal - excessive battery discharge
- Communications USB / RS232 / slot for communication interface / REPO + input contact
- Input connection Terminal block
- Output sockets Terminal block + 2 IEC 320 C19 - PDIST: Terminal block + 8 IEC 320 - C13 + 2 IEC 320 C19
- Standards European Directives: L V 2014/35/EU Low Voltage Directive EMC 2014/30/EU Electromagnetic Compatibility Directive
- Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; to RoHS standard
- Classification according to IEC 62040-3 (Voltage Frequency Independent) VFI - SS - 111
- Ambient temperature for the UPS 0 °C to +40 °C
- Recommended temperature for battery life +20 °C to +25 °C
- Relative humidity range 5-95% non-condensing
- Color Black RAL 9005
- Noise level at 1 m (ECO mode) dBA <48
- Standard equipment SB cable; handle kit
Sentinel Dual is the best solution for powering Mission Critical electromedical applications and devices that require maximum energy reliability.
Simplified installation:
- Possibility of floor installation (tower version) or rack cabinets (rack version). Display panel can be rotated (using the included key);
- Low noise (<48 dBA): can be installed in any environment due to high-frequency switching inverter and load-dependent digitally controlled PWM fan;
- External bypass option for maintenance-free switching;
- Guaranteed operation up to 40 °C (components are designed to operate at high temperatures and are therefore subject to lower stress at normal temperatures);
- Built-in IEC output sockets with thermal protection
Operating mode selection:
Functions are programmable via software or manually via the display panel:
- ON LINE: efficiency up to 95%;
- ECO mode: to increase efficiency (up to 98%), allows selection of LINE INTERACTIVE (VI) technology to power, from the grid, insensitive loads;
- SMART ACTIVE: the UPS independently decides the operating mode (VI or VFI) according to the quality of the mains power supply;
- STANDBY OFF: the UPS can be set to operate only when mains power is absent (emergency mode only);
- Frequency converter operation (50 or 60 Hz).
High-quality output voltage:
- High quality even with nonlinear loads (IT loads with crest factor up to 3:1);
- High short-circuit current on bypass;
- High overload capacity: 150% from inverter (even with no grid);
- Filtered, stabilized and reliable voltage (ON LINE double conversion VFI technology according to IEC 62040-3 standard) with atmospheric noise suppression filters;
- Load rephasing: UPS input power factor close to 1 and sinusoidal current absorption
Other features:
- Selectable output voltage (220/230/240 V);
- Dual input power supply configuration (SDU 10000 DI and SDU 10000 DI ER);
- Auto restart on mains return (software programmable);
- Bypass activation: at power off, the unit automatically switches to bypass mode and battery charging;
- Minimum load shutdown;
- Low battery warning;
- Start up delay;
- Total microprocessor and DSP control;
- Automatic bypass without interruption;
- Use of custom power module

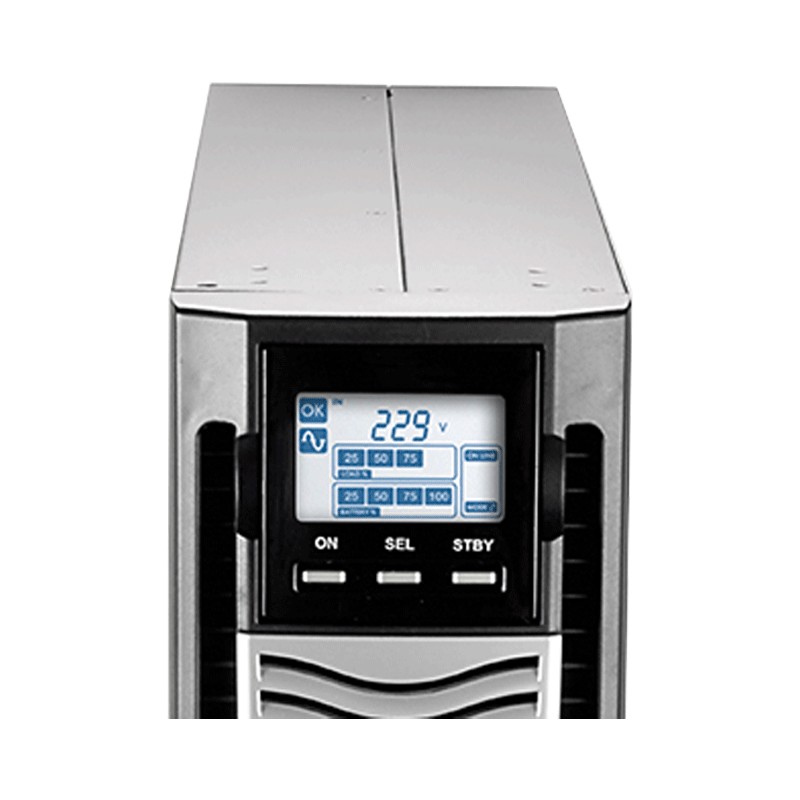

- Status indications, measurements and alarms available on standard backlit display;
- Digital UPS upgrade (flash upgradeable);
- Output outlet protection by resettable thermal switch;
- Back feed protection as standard: to prevent power returns to grid;
- Manual switching to bypass mode.
There are no reviews
Data sheet
- Type:
- Uninterruptible Power Supply UPS
- Rated Power:
- 5000VA
- Active Power:
- 5000W
