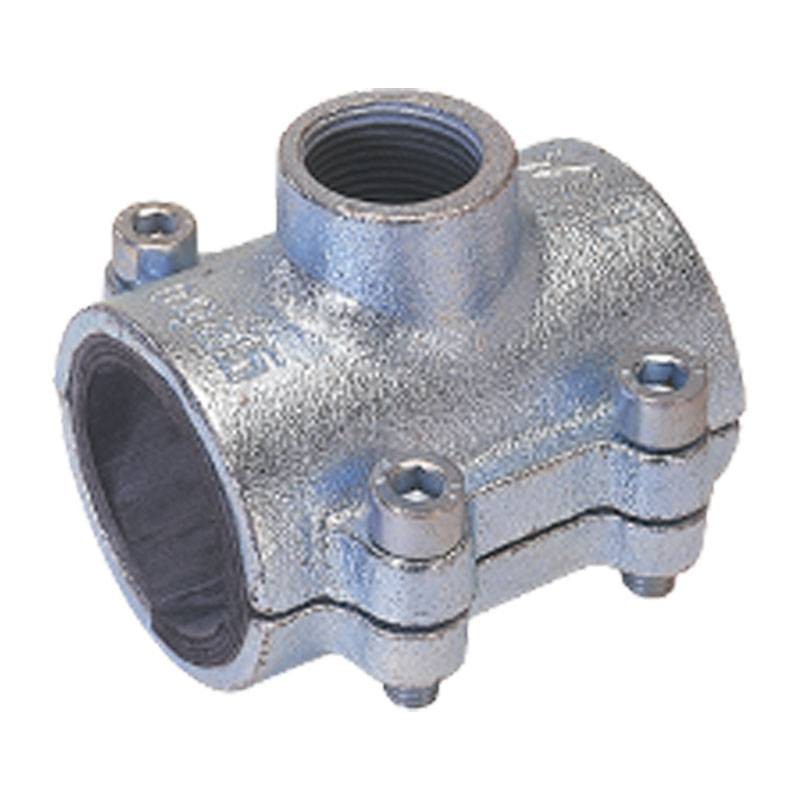

Gebo Cast iron Tapping clamp for F 2-inch steel pipe 01.261.28.0603
GBO 01.261.28.0603
4019576002390
Cast iron Tapping clamp for Gebo steel pipes with female thread Type ANB with the following characteristics:
- Connection: Female
- Fittings: 2 in. x 60.3 mm
- Material: Cast iron
Applications:
- Potable water up to 25 degrees
- Heating water up to 90 degrees
- Oil-free compressed air
Gebo Cast iron Tapping clamp for F 2-inch steel pipe 01.261.28.0603
€20.93
Tax included
€20.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
: 4
Pay in installments with Klarna
Applications:
- Drinking water up to 25 degrees
- Heating water up to 90 degrees
- Oil-free compressed air
Scope of application: to create deflections from pipes. The seal complies with current standards and drinking water requirements
Materials used:
- Upper part of the clamp: spheroidal graphite cast iron DIN EN 1563 respectively malleable cast iron DIN EN 1562
- Lower part of the clamp: spheroidal graphite cast iron DIN EN 1563 respectively malleable cast iron DIN EN 1562
- Bolts/nuts: Galvanized steel, strength 8.8t
- Gasket: EPDM
- Galvanizing: galvanic zinc plating
- Connecting threads: according to ISO 7/1 and/or DIN EN 10226/1
All GEBO clamps and branch brackets are designed to ensure continuous operation.
Operating pressure/temperature: Water: 10 bar/60 degrees, 6 bar/90 degrees - Compressed air: 10 bar/70 degrees.
Recommendations: for central drilling of pipe, use of keyhole saws is recommended to avoid damage to threads.
Data sheet
- Diameter: 60mm
- Type: Tapping clamps
- Connection: F
- Model: Threaded
- Hoses: 2
- Material: Cast iron
