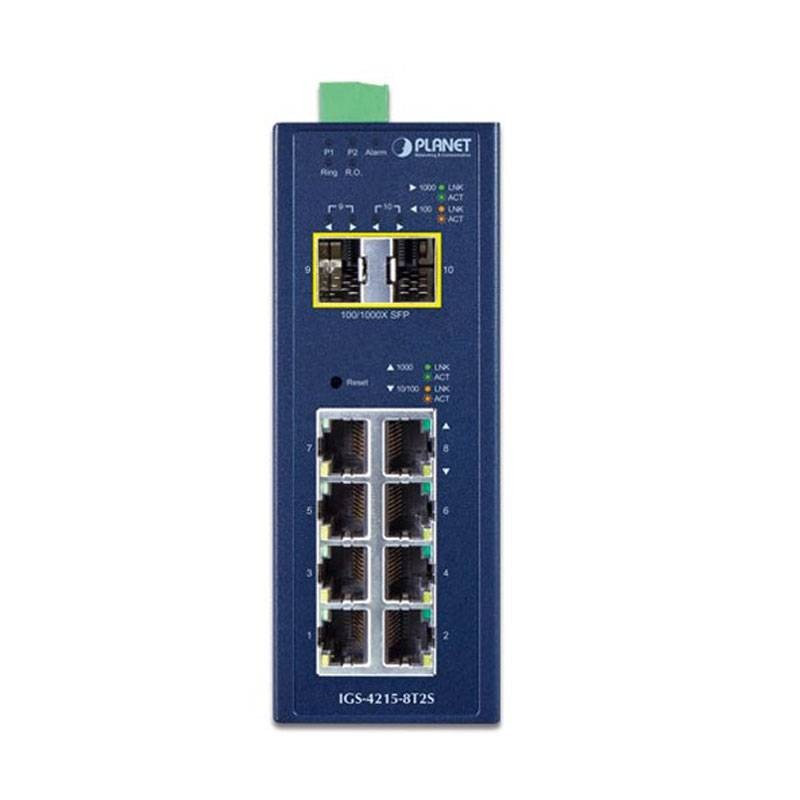

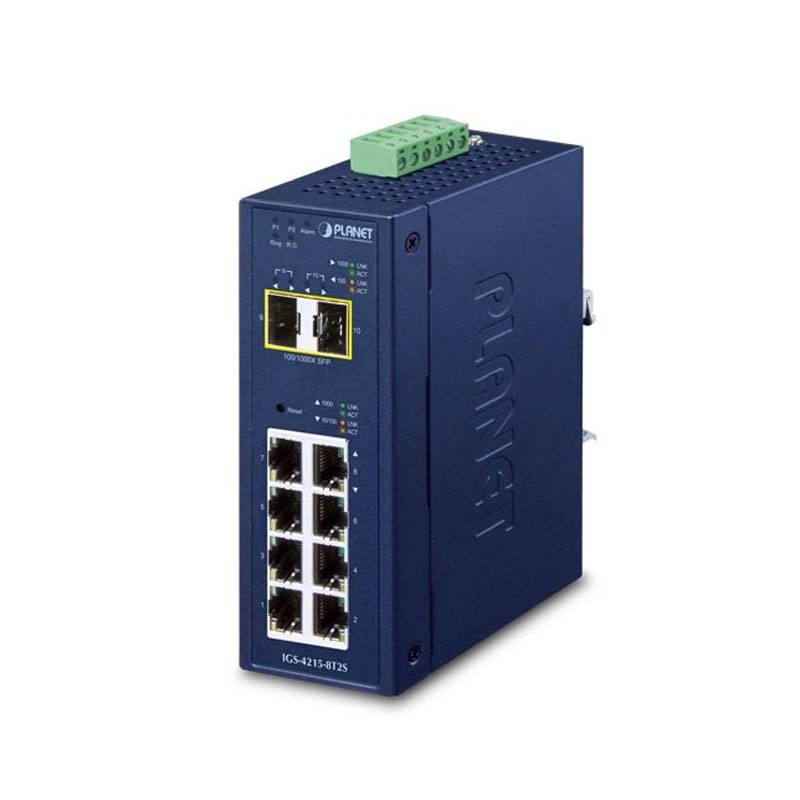

Switch 4 Power 8-Port 10/100/1000T + 2 Port 100/1000X SFP IGS42158T2S

Brand: 4power

Cod: 4PW IGS42158T2S EAN: 4711605286275

4 Power Switch with the following features:

8 copper ports 10/100/1000BASE RJ45 auto-MDI/MDI-X
Gigabit SFP slots: 2 SFP 100/1000BASE-SX/LX/BX interfaces
Power Requirements: Dual 9 - 48V DC - 24V AC
Power Consumption: DC input: max. 1.98 watts/6.7 BTUs (system on) - max. 6.93 watts/23.6 BTUs (full load)
Power consumption: AC input: max. 1.4 watts/4.7 BTUs (system on) - max. 5.7 watts/19.4 BTUs (full load)
Installation: DIN rail kit and ear for wall mounting
ESD protection: 6KV DC

€436.13 Tax included

€436.13

€436.13
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 1

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Features:

Reset button: < 5 sec: system restart - > 5 sec: factory setting
Removable 6-pin terminal block for power input: Pin 1/2 for Power Supply 1, Pin 3/4 for fault alarm, Pin 5/6 for Power Supply 2
One relay output for power failure
Alarm relay current rating: 1 A at 24 VDC
IP30 metal housing

Switching Specifications:

Change Architecture: Store-and-Forward
Change Fabric: 20 G/bps (non-blocking)
MAC address table: 8,000 entries
Shared data buffers: 4.1 Mbit
Flow control: IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Giant Frame: 9K

Layer 2 features:

Port mirroring: Monitor TX/RX/both, Many-to-1, Up to 4 sessions
VLAN: 802.1Q tag-based VLAN.
Tunneling Q-in-Q 802.1ad (stacking VLAN) Voice VLAN protocol Private VLAN (protected port) GVRP Up to 256 VLAN groups, over 4094 VLAN IDs
Link aggregation: IEEE 802.3ad LACP and static trunk
Cisco Ether-channel (Static Trunk)
Up to 5 line bundles Up to 10 ports per line bundle with 20 Gbps bandwidth
Spanning Tree protocol: IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping: IPv4 IGMP Snooping v1, v2, v3 IGMP Interrogator IGMP snooping port filtering, Up to 256 multicast groups
MLD snooping: IPv6 MLD snooping v1, v2, Up to 256 multicast groups QoS: Input/output rate limit per port Bandwidth control, 8-level priority for switching

Security features:

Access control list: IPv4/IPv6 IP-based ACL/ MAC-based ACL, IPv4/IPv6 ACE IP-based/MAC-based ACE
Security: IP-MAC port association, MAC Static MAC address, DHCP relay and DHCP 82 option, STP BPDU protection, BPDU filtering and BPDU forwarding, DoS attack prevention, ARP inspection, IP source protection, Broadcast-Multicast-Unicast storm control support
Integrated RADIUS client to collaborate with the RADIUS server
Network access control: IEEE 802.1X port-based authentication RADIUS/TACS+ user access authentication

Environment:
