4Power Switch 8 ports 10/100/1000Mbps + 2 100/1000X SFP GSD-1002M
4PW GSD-1002M
4711605280082

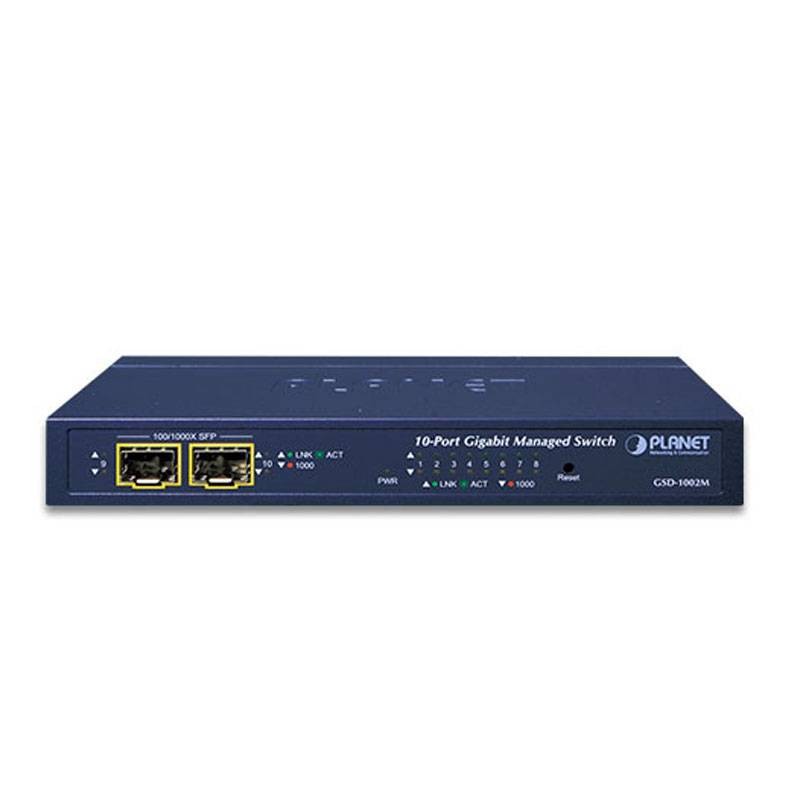

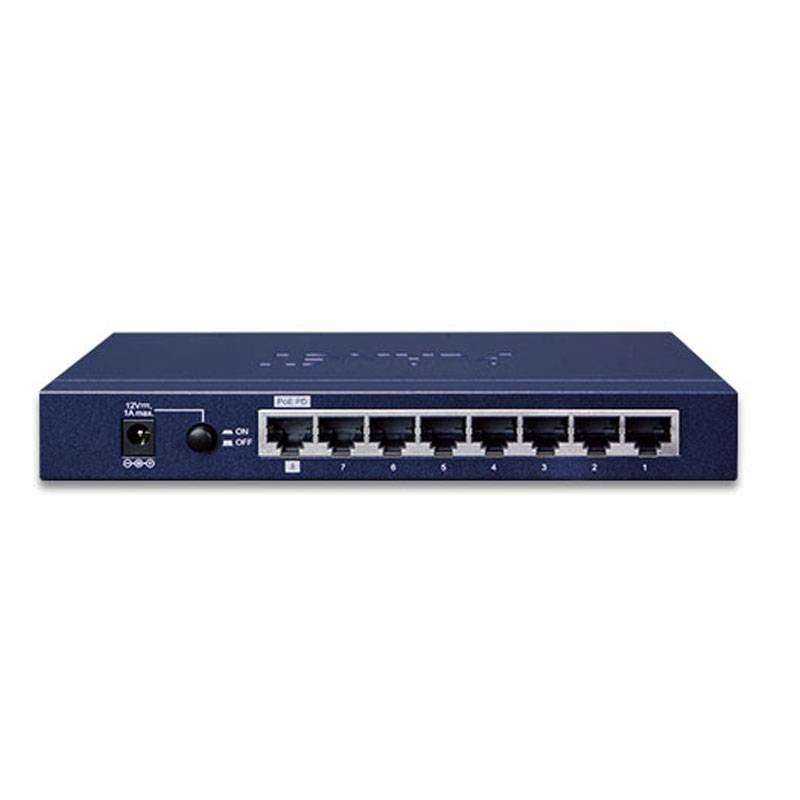

4Power managed desktop 8-port 10/100/1000Mbps + 2-port 100/1000X SFP switch with the following features:
- 8 Gigabit Ethernet 10/100/1000Mbps ports with auto-MDI/MDI-X supported
- 1 port (port 8) supports 802.3af/at PoE 48 - 56V DC line power supply
- 2 100/1000BASE-X mini-GBIC/SFP slots
- 10/100 Mbps, half/full duplex and 1000 Mbps full duplex hardware-based modes, automatic flow control and negotiation, and automatic MDI/MDI-X
- Features store-and-forward mode with wire-speed filtering and forwarding speed
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
- Supports IGMP Snooping v2 and v3
- Supports MLD Snooping v1 and v2
- Supports IGMP query mode
- IGMP snooping port filtering
- MLD snooping port filtering
4Power Switch 8 ports 10/100/1000Mbps + 2 100/1000X SFP GSD-1002M
€189.08
Tax included
€189.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
PLANET GSD-1002M is an 8-port 10/100/1000Mbps + 2-port 100/1000X SFP managed desktop switch specially designed to build a reliable full Gigabit backbone to transmit and forward data to the remote network via fiber optics. It provides 8 copper 10/100/1000BASE-T ports and 2 extra 100/1000BASE-X SFP fiber optic interfaces with dual power system. In addition to support for 20 Gbps switch fabric to handle extremely high amounts of video, voice and big data in a secure topology, the GSD-1002M offers intuitive yet advanced IPv6/IPv4 management interfaces and numerous L2/L4 switching features. It is the best investment for enterprises/SOHOs expanding or upgrading their network infrastructure.
The GSD-1002M supports SSHv2 and TLS protocols to provide effective protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , Dynamic ARP Inspection , 802.1x port-based network access control , RADIUS and TACACS+ user account management , SNMPv3 authentication and so on to complete it as a complete protection solution.
The GSD-1002M has a strong rapid automatic recovery capability to prevent external disruptions and intrusions. It incorporates Spanning Tree protocol (802.1s MSTP), automatic circuit protection and dual power system (PoE In + 12 V DC) in the customer's automation network to improve system reliability and uptime. In the example below, the PoE power supply has been interrupted due to cable drop, and the DC power supply will automatically perform the hardware failover function to continue to power the switch without any loss.
The GSD-1002M can be programmed for advanced switch management features such as dynamic link aggregation to ports, 802.1Q VLAN and VLAN Q-in-Q, Multiple Spanning Tree (MSTP) protocol , loop protection and BPDU , IGMP snooping and MLD snooping . Through link aggregation, the GSD-1002M enables the combination of high-speed trunk operation with multiple ports and also supports failover. In addition, Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices in the local transmission domain.
PLANET GSD-1002M offers full IPv4/IPv6 from Layer 2 to Layer 4 Access Control List (ACL) to strengthen security all the way to the periphery. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports, or typical network applications defined. Its protection mechanism also includes 802.1X port-based device and user authentication , which can be implemented with RADIUS and TACACS+ to provide port-level security and block illegal users. With the secure port function , communication between edge ports can be prevented to ensure user privacy. In addition, the port security function allows you to limit the number of network devices on a given port.
The GSD-1002M provides high-performance edge services and plug-and-play design for Fiber to the Desktop (FTTD) solutions. FTTD service is fiber optic cabling with reliable and expandable cabling architectures with low cost and long distance capabilities. The GSD-1002M supports dual-speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber optic modules to connect fiber access points, with high flexibility to be installed in the communication closet or main SME computer room.
Since port 8 of the GSD-1002M provides in-line PoE PD power and 12V DC interface, it can obtain PoE power from any 802.3af/at PoE PSE equipment. The GSD-1002M has a non-blocking design and handheld size and extends 100BASE-FX/1000BASE-SX/LX SFP fiber optic modules to 8 10/100/1000Mbps Gigabit Ethernet ports and 2 ports, bringing network infrastructure higher flexibility but lower cost.
The GSD-1002M supports free configuration and grounding and provides high-performance edge service. To build network infrastructure with a quick and easy installation option, you can reduce attenuation and crosstalk problems for lossless data transfer.
Features:
- Power requirements: IEEE 802.3af/at PoE 48V - 56V DC inline power supply 12V DC power adapter
- ESD protection 6KV DC
- Power Consumption / Dissipation: 10.9 watts / 37.2 BTUs
- Operating: Temperature: 0 - +50 degrees
- Relative humidity: 5 - 95% (non-condensing)
- Storage: Temperature: -20 - +70 degrees
- Relative humidity: 5 - 95% (non-condensing)
- Dimensions: 191 x 86 x 26 mm (W x D x H)
- Weight: 396 grams
There are no reviews
Data sheet
- Type: Network Switch
- Doors: Eight
