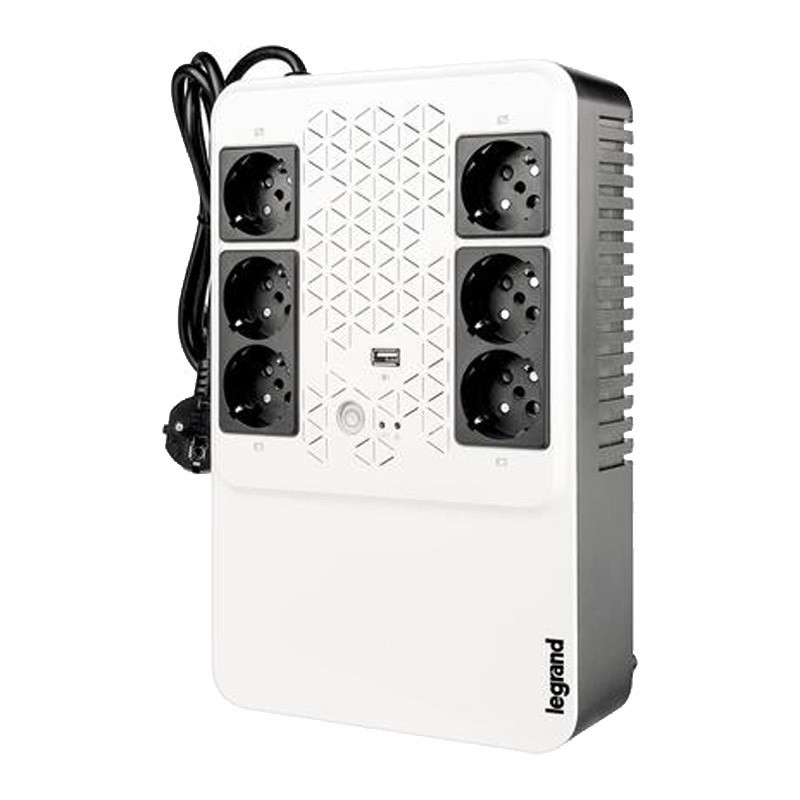

Legrand KEOR MULTIPLIUG single-phase UPS 600VA with German sockets 310081
LEG 310081
3414971227248
Legrand Bticino KEOR MULTIPLIUG Single-phase UPS 600VA, with the following features:
- With 6 standard German and USB sockets
- Autonomy up to 15 minutes
- Input voltage 230V
- Input voltage range 170 - 290V
- Frequency (Hz) 50 - 60 ± 5Hz
- Power 360W
- Height 190mm
- Width 89.5mm
- Depth 296mm
- Reference Standard EN 62040-1/2/3
- Technology Line interactive VI
- Pseudo sinusoidal waveform
Legrand KEOR MULTIPLIUG single-phase UPS 600VA with German sockets 310081
€93.48
Tax included
€93.48
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 29
: 1
Pay in installments with Klarna
The UPS Legrand model Keor MULTIPLUG 600 is an uninterruptible power supply with line interactive technology. It delivers a CPU-controlled active power of 360W, and is equipped internally with valve-regulated hermetic lead acid batteries to ensure a minimum runtime of 10 minutes with a typical workstation. The presence of an electronic stabilizer (AVR) inside the UPS provides the connected load with an effective protection against any interference in the network.
The UPS is also equipped with a USB charging port for mobile devices.
Keor MULTIPLUG 600 is operated by a microprocessor and is able to display the following alarms and operating modes via a "smart" LED bar:
- normal operation
- battery operation
- overload
- general fault
- autonomy reserve
- end of autonomy
The Keor MULTIPLUG is CE marked in accordance with European Directives 2014/30 and 2014/35.
It has also been designed and manufactured in accordance with the following standards:
- EN 62040-1 "General and safety requirements for UPS used in operator accessible areas".
- EN 62040-2 "Electromagnetic compatibility (EMC) requirements".
Other features:
- Full protection: Overload, short circuit, deep discharge, overcharge and overvoltage
- Fuse Type
- Number of Batteries 1
- Battery Type / Voltage VRLA 7 Ah
- Interface LED bar (green / orange / red)
- USB HID Type B
- Alarms Visual (LED bar), Audible (buzzer)
- Operating temperature (°C) 0 /+40
- Relative humidity (%): < 95 (non-condensing)
- Noise level (dB): ≤ 40
- Weight: 5 Kg
Output:
- Socket type: German version: Backup: 4*CEE 7/3 - Overvoltage: 2*CEE 7/3
- French version: Backup: 4*CEE 7/5 - Overvoltage: 2*CEE 7/5
- USB Charging / Voltage: Type A / 5V (1A)
- Voltage (V): 230 ± 10%
- Frequency (Hz): 50 - 60 ± 1Hz (battery operated)
There are no reviews
Data sheet
- Type: Uninterruptible Power Supply UPS
- Model: Schuko sockets
- Rated Power: 600VA
- Active Power: 360W
- Endurance: 15 minutes
