KIT Secondary column Urmet Sinthesi Steel 2VO Video 1783/739
UTD 1783/739
8021156071210

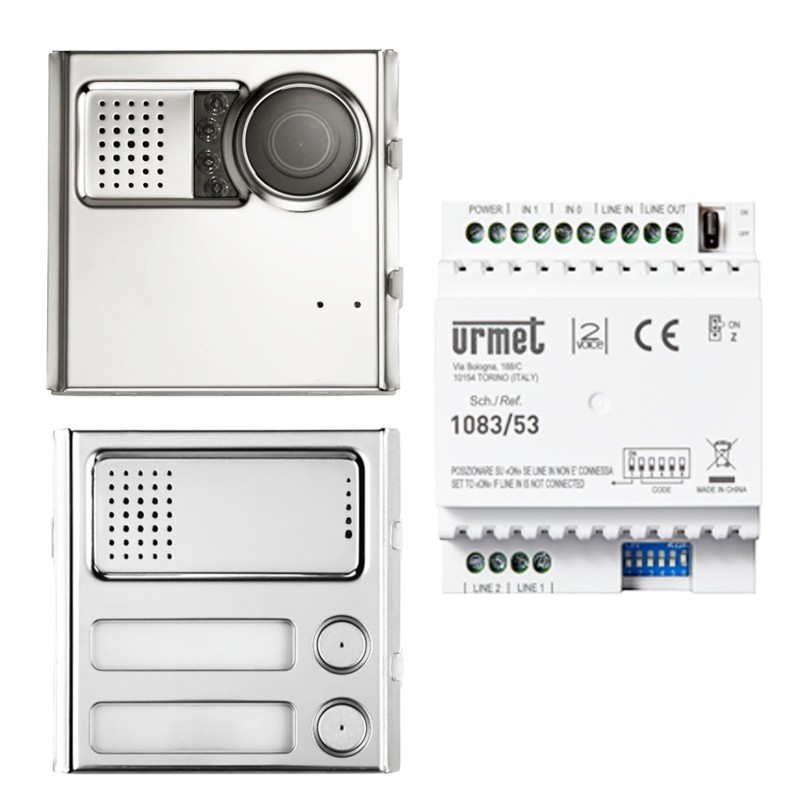

KIT Secondary column Urmet Sinthesi Steel 2VO Video composed by:
- 1 Audio door station 1083/64
- 1 Camera module 1758/83
- 1 Column distributor 1083/53.
KIT Secondary column Urmet Sinthesi Steel 2VO Video 1783/739
€429.09
Tax included
€429.09
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
Pay in installments with Klarna
It is the minimum unit for creating a secondary staircase with video door station in a 2Voice system with Sinthesi Steel button panel. Expandable with further button modules and/or accessories, flush-mounting boxes and frames to complete the 2Voice common parts.
Sinthesi Steel, 2Voice audio module with 2 buttons 1083/64:
- On a Sinthesi Steel module, it is equipped with loudspeaker, microphone and 2 call buttons. Output for door opening; second output with relay contact for opening of a second driveway entrance.
- Input for local door opening button. Second input for open door detection contact. Dip switch for configuration of module address, door opening mode from 2Voice extensions (free or after call). Possibility to program the door opening time. Prepared for ILA hearing aid module and for voice and visual signalling module.
- Loudspeaker, microphone and 2 call buttons
- Possibility to program the door opening time
- Prepared for ILA hearing aid module and for voice and visual signalling module.
Sinthesi Steel, 2Voice colour camera module 1758/83:
- Colour camera with LED lighting. Selection jumper for 50-60Hz operation. To be used with 1083/64 in video systems.
Column distributor 2Voice Urmet 1083/53:
- DIN rail mounting (4 modules)
- Two bus outputs to divide the column signal on 2 risers
- Can manage up to 2 push button panels dedicated to the staircase or building of competence.
There are no reviews
Data sheet
- KIT: Basic Kit Video Doorphones
