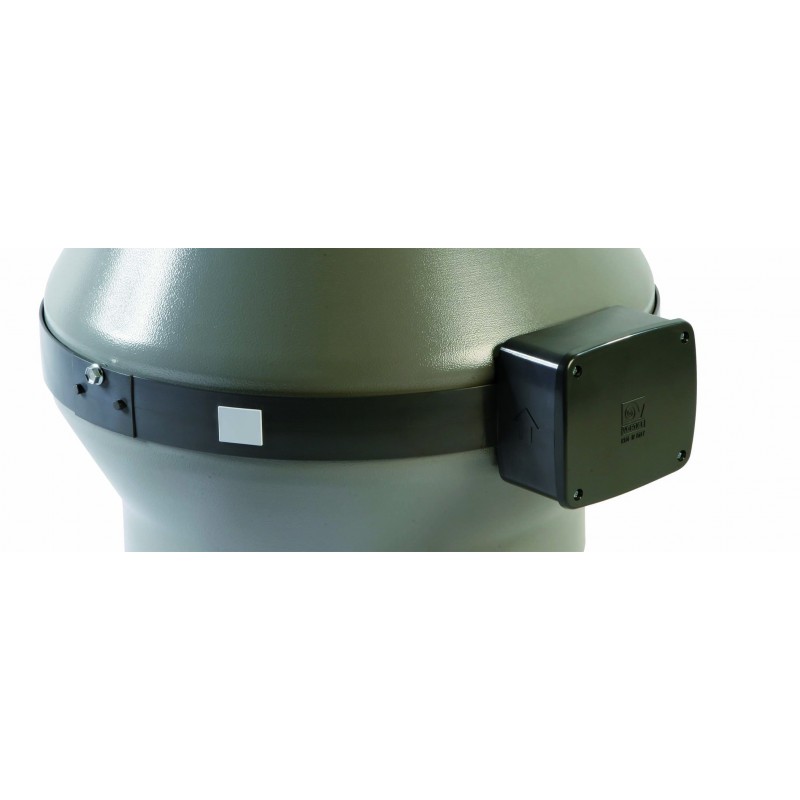

Vortice Centrifugal Axial Vacuum Cleaner diameter 100 16150
VOR 0000016150
8010300161501
Air and odor aspirator Vortice model CA 100 MD centrifugal steel axial duct, Rated diameter 100 mm.
Vortice Centrifugal Axial Vacuum Cleaner diameter 100 16150
€194.43
Tax included
€194.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 22
: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Steel casing pickled, phosphated and painted with polyester powder against the aggressive action of the weathering agents
- Rated diameter 100 mm
- 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support and reverse blade centrifugal impeller
- Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
- Metal brackets for wall mounting in galvanized steel.
Technical specifications:
- Max. absorbed current at max. speed (A) 0,22
- Max. current consumption at min. speed (A) 0.06
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- Degree of protection IP 44
- Insulation Class II
- Weight (Kg) 2.97
- Max. power consumption at max speed (W) 51
- Max. power consumption at min. speed (W) 13
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 81
- Max. flow rate at max. speed (m³/h) 293
- Max. flow rate at min. speed (l/s) 22.7
- Max. flow rate at min. speed (m³/h) 82
- Max pressure at max speed (mmH2O) 37,4
- Max pressure at max speed (Pa) 367
- Max. pressure at min. speed (mmH2O) 16.9
- Max. pressure at min. speed (Pa) 166
- RPM max 2400
- RPM min 980
There are no reviews
Data sheet
- Diameter: 100
- Type: Centrifugal
