Vortice Centrifugal Duct Vacuum Cleaner 100 for outdoor 16091
VOR 0000016091
8010300160917

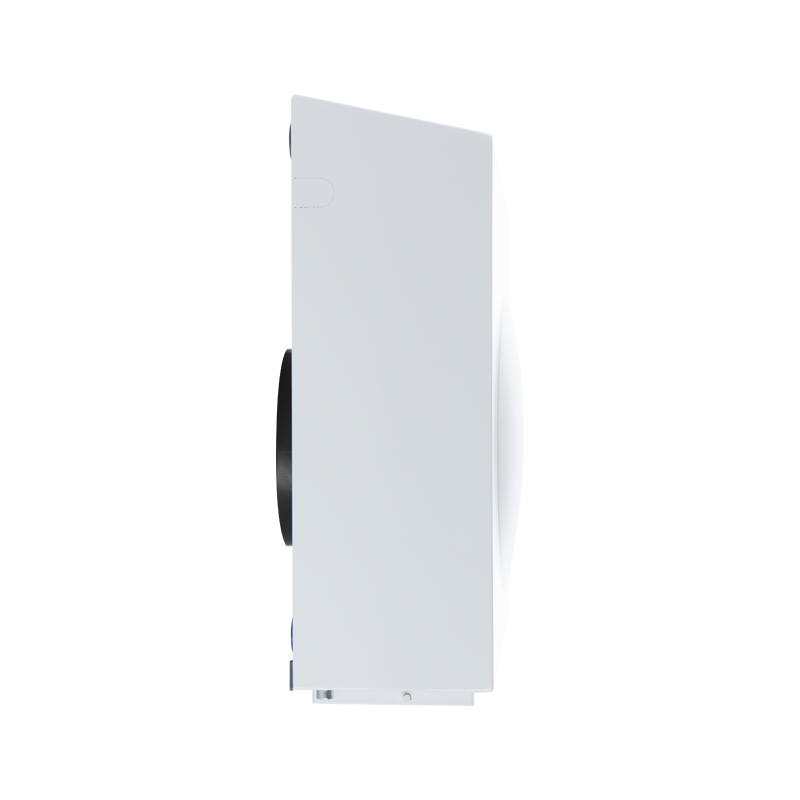

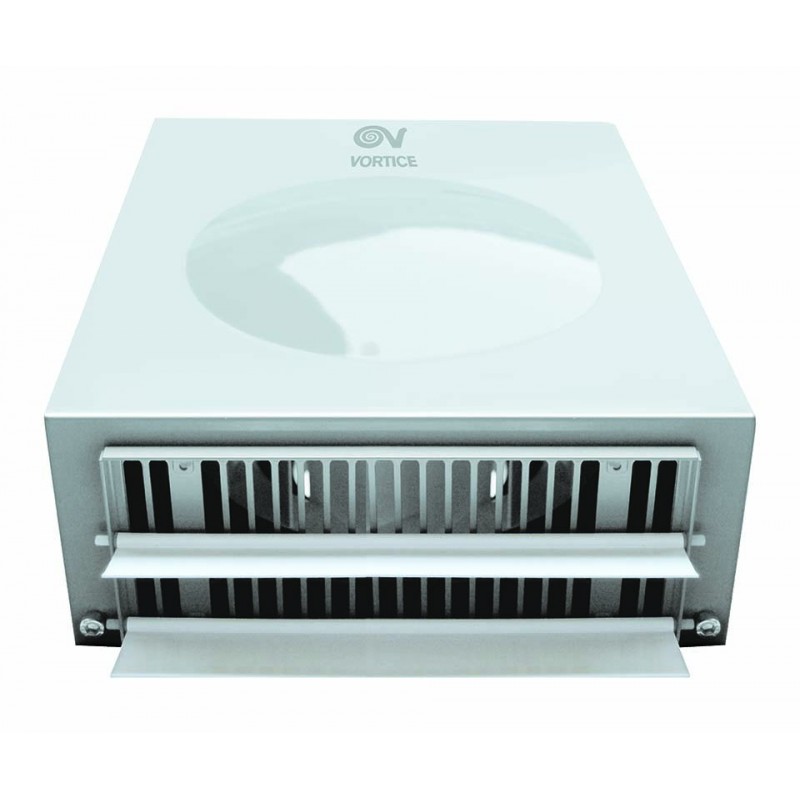

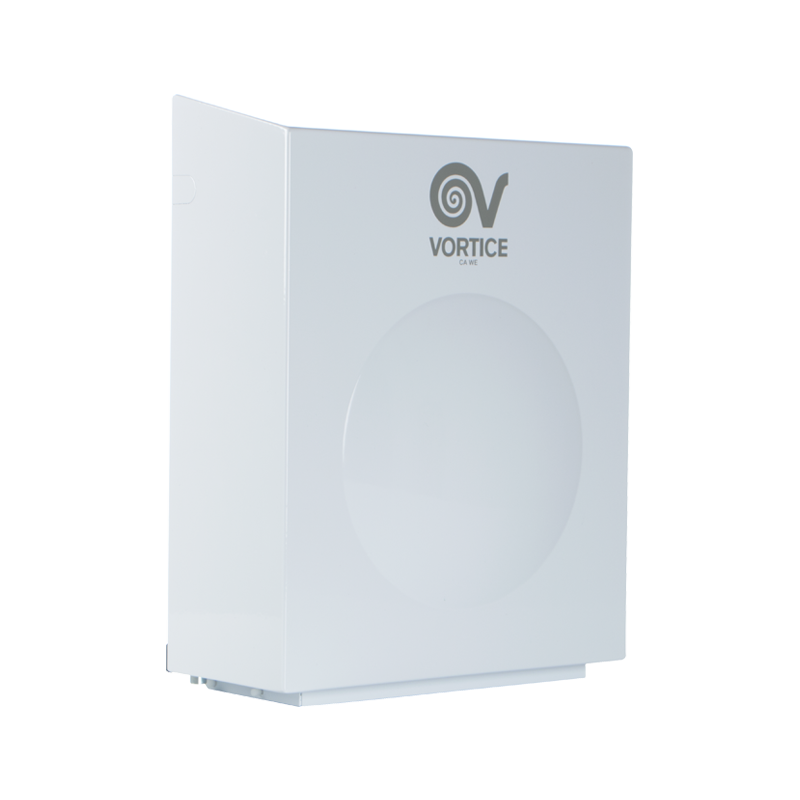

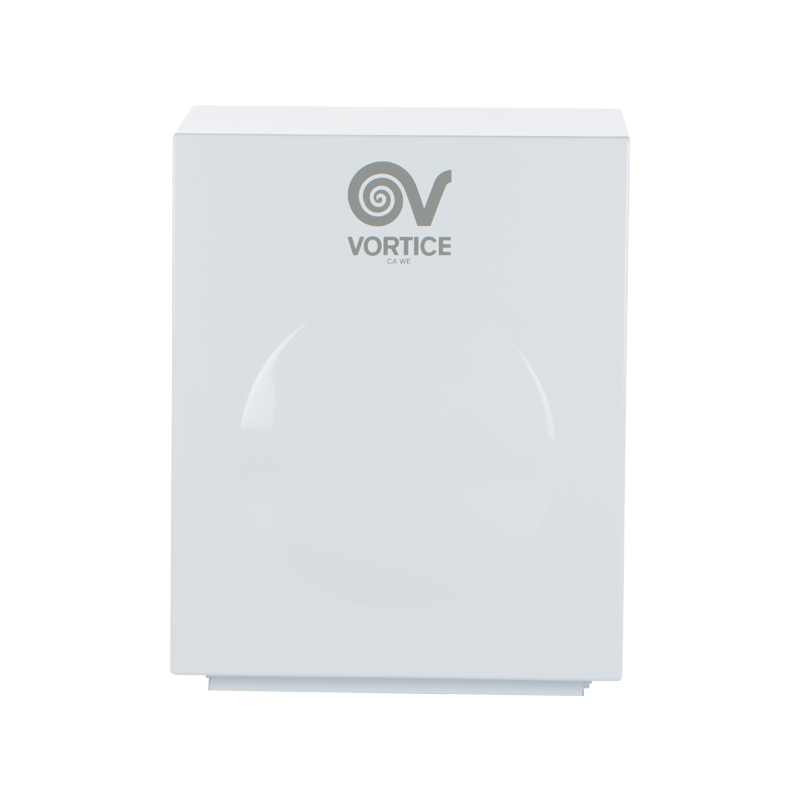

Vortice Air and odor extractor fan Model CA 100 WE D centrifugal duct vortex for outdoor installation, Rated diameter 100 mm
Vortice Centrifugal Duct Vacuum Cleaner 100 for outdoor 16091
€268.53
Tax included
€268.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 4
Pay in installments with Klarna
Frequently bought together
Characteristics:
- Outer casing in P04 pressed steel sheet and painted with weatherproof polyester paint
- Rated diameter 100 mm
- 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support, reverse blade centrifugal impeller
- Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence.
Technical specifications:
- Max. current consumption at max speed (A) 0.23
- Max. current consumption at min. speed (A) 0,13
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- Protection degree IP X5
- Insulation 1st class
- Weight (Kg) 4,5
- Max. power consumption at max speed (W) 50
- Max. power consumption at min speed (W) 12
- Max. ambient temp. continuous operation (°C) 60
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 70
- Max. flow rate at max. speed (m³/h) 252
- Max. flow rate at min. speed (l/s) 18.8
- Max flow rate at min speed (m³/h) 68
- Max pressure at max speed (mmH2O) 38.6
- Max pressure at max speed (Pa) 379.4
- Max. pressure at min. speed (mmH2O) 18.3
- Max. pressure at min. speed (Pa) 180
- Sound pressure Lp [dB (A)] 3m - max vel 50.1
- Sound pressure Lp [dB (A)] 3m - min vel 38.3
- RPM max 2390
- RPM min 925
Silencieux avec 3 vitesses
Impeccable !
Correspond à mes attentes : silencieux en mode petite vitesse et de bonne facture.
Appareil fonctionne très bien,,,,,,
Prodotto che soddisfa le mie aspettative. Come pensavo, Vortice non delude.
Data sheet
- Diameter: 100
- Type: Centrifugal
