Vortice VORTKAPPA Vacuum cleaner for hood diameter 100 10950
VOR 0000010950
8010300109503

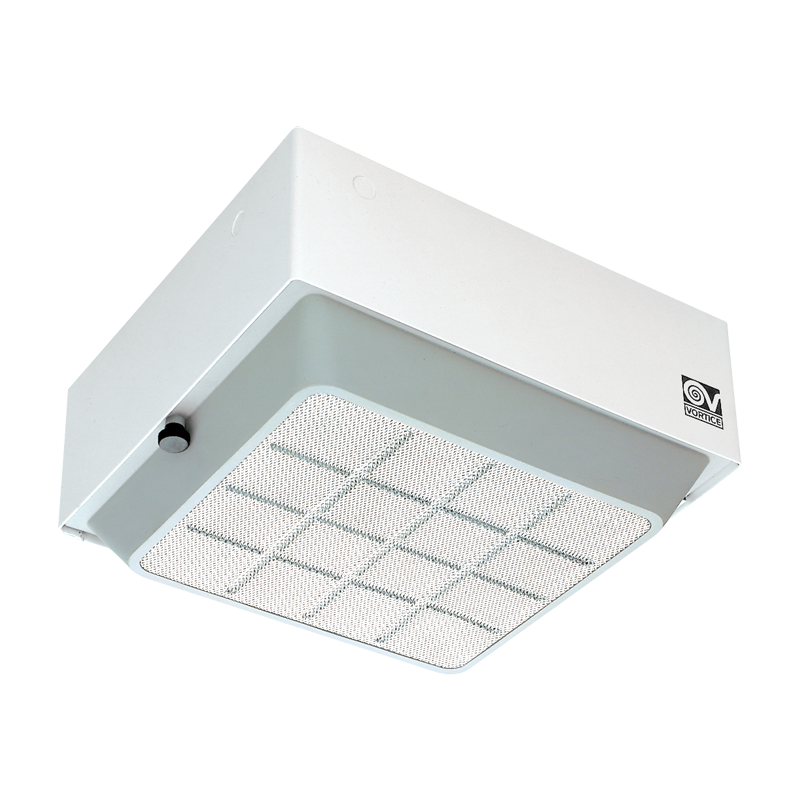

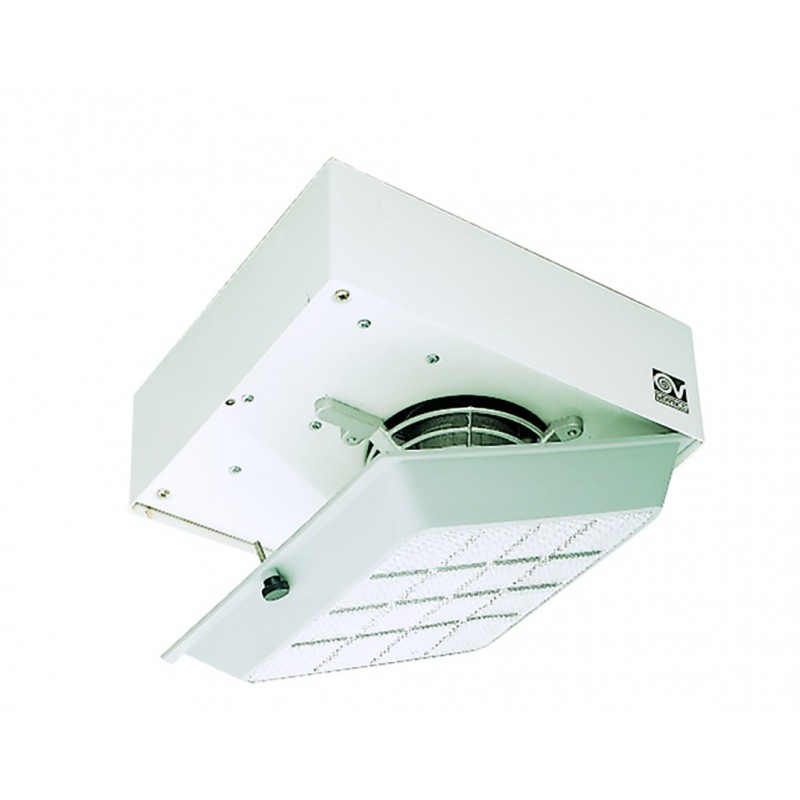

VORT KAPPA Vortice vacuum cleaner model from under hood, centrifugal Rated Duct Diameter 100 mm.
Vortice VORTKAPPA Vacuum cleaner for hood diameter 100 10950
€276.01
Tax included
€276.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Pay in installments with Klarna
Features:
- Suitable for intermittent ventilation of small domestic kitchens
- Metal case, frame and engine holder; auger
- Impeller and shut-off valves made of heat-resistant, self-extinguishing and anti-drip material
- High efficiency electronic commutated motor (EC), combined with a centrifugal impeller, which ensures a wide range of adjustments and a significant reduction in consumption, with the same performance output

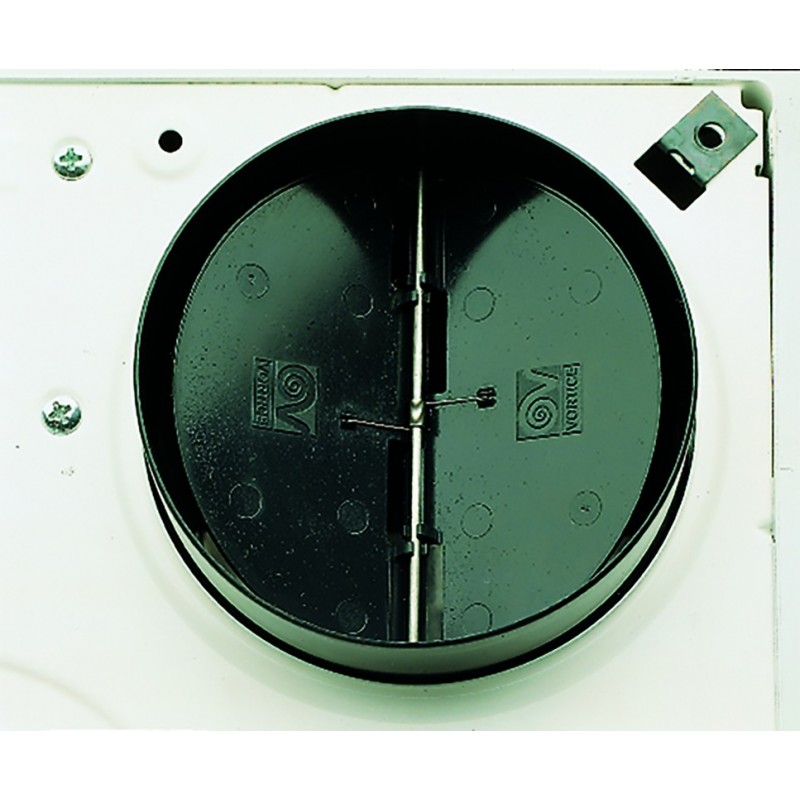

- Automatic butterfly closure to prevent air from re-entering when the appliance is switched off
- Saturated filter signalling device
- Speed controllable by potentiometer or optional 3-speed controller.
Technical specifications:
- Rated current max. speed (A) 0,55
- Rated current min. speed (A) 0.1
- Nominal Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP Protection Grade X0
- Insulation 1st class
- Ø Exhaust (mm) 97
- Weight (Kg) 2.7
- Max. power consumption at max speed (W) 60
- Max. power consumption at min speed (W) 9
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 75
- Max. flow rate at max. speed (m³/h) 270
- Max. flow rate at min. speed (l/s) 28
- Max. flow rate at min. speed (m³/h) 100
- Max pressure at max speed (mmH2O) 35,5
- Max pressure at max speed (Pa) 348
- Max. pressure at min. speed (mmH2O) 7.3
- Max. pressure at min. speed (Pa) 72
- Sound pressure Lp [dB (A)] 3m - max vel 55.3
- Sound pressure Lp [dB (A)] 3m - min vel 35.8
- Sound pressure Lp in free field [dB(A)] 1 m 64.8
- Sound pressure Lp in free field [dB(A)] 3 m 55.3 db
- RPM max 2270
- RPM min 1050
Data sheet
- Diameter: 100
- Type: Centrifugal
