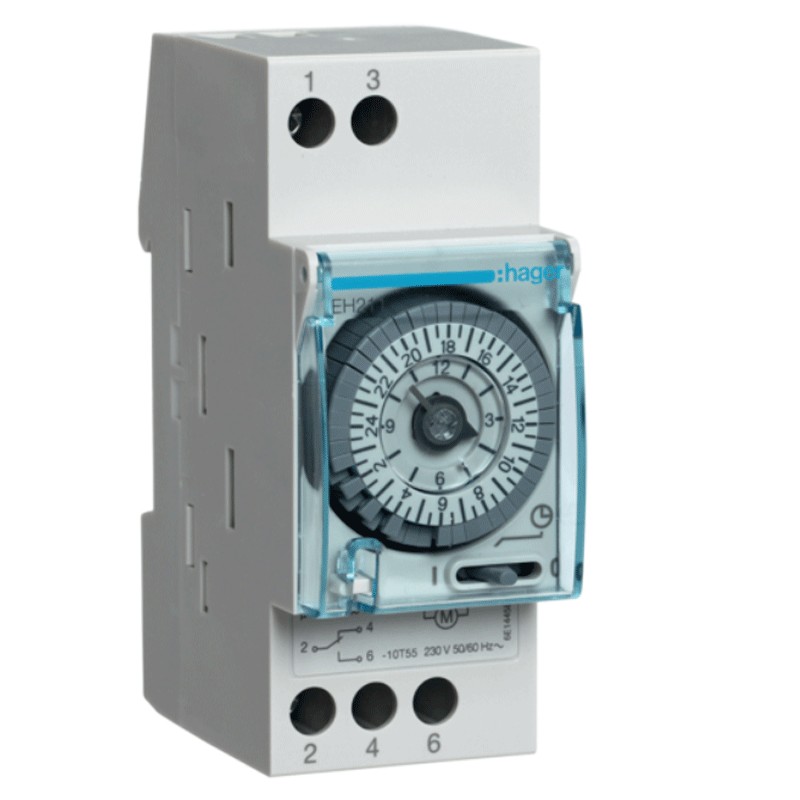

Hager mechanical daily time switch 16A EH211
HAG EH211
3250612282111
Electromechanical daily time switch from Hager with the following features:
- Operating voltage 230 V
- Rated frequency 50/60 Hz
- Current In 16A
- DIN rail mounting
- With power reserve
- 2 modules
- DIN rail fixing mode
- With slide switch / permanent ON
Hager mechanical daily time switch 16A EH211
€43.13
Tax included
€43.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Features:
- Hager series
- Technical version Changeover contact, time step 30 minutes
- Number of function channels 1
- Switching cycles min. 50000
- Operating reserve: 200 hours
- Maximum power at cos phi 0.6 3 A
- Switching current at cos φ = 0.6 max. 3 A
- Power consumption in VA 0.5 VA
- Power consumption (in operation) 0.5 VA
- Total power loss 1 W
- Full load power loss 1 W
- Coil power loss 0.5 W
- Accuracy ± 1 s/day
- Charge times for reserve in hours 120
- Maximum power with incandescent lamps 1000 W
- Incandescent and halogen lamps 230 V max. 1000 W
- Mounting type projecting
- Mounting type for DIN rail mounting
- Minimum cross-section with flexible cable 1 / 4 mm²
- Minimum cross-section with rigid cable 1 / 4 mm²
- Conductor cross section (flexible) 1...4 mm²
- Conductor cross-section (rigid) 1...4 mm² Number of contacts
- Number of contacts 1
- Type of contact 1 switching
- Type of screw connection: ( With screw terminals - with potential-free contact)
- Number of program steps 96
- Time change summer/winter: manual
- Programming fineness 30 mn
- Programming type analogue
- Programming cycles Programming cycle: 24 hours
- Programming cycle 24H
- Number of functions 1
- Number of switching times for switching on/off 96
- Operating reserve in hours 200 h
- Switching cycles cos φ = 0.6 min 20000
- Daily cycle
- Degree of protection of the housing IP20
- Operating temperature -10...55 °C
- Operating accuracy 6 mn / year
- Storage/transport temperature -20...70 °C
- Main design line LIGHT CONTROL
Dimensions
- Depth 58 mm
- Height 90 mm
- Width 36 mm
Facile d'utilisation et conforme aux attentes
C'est HAGER que dire de plus, Lancienne avait 24ans de service.
Data sheet
- Type: Switches
- Version: Time
- Model: Daily
- Installation: Din
