Giacomini tubular extension for valve 2-1/2 - 3 R749TX004
GIA R749TX004
8009902039523

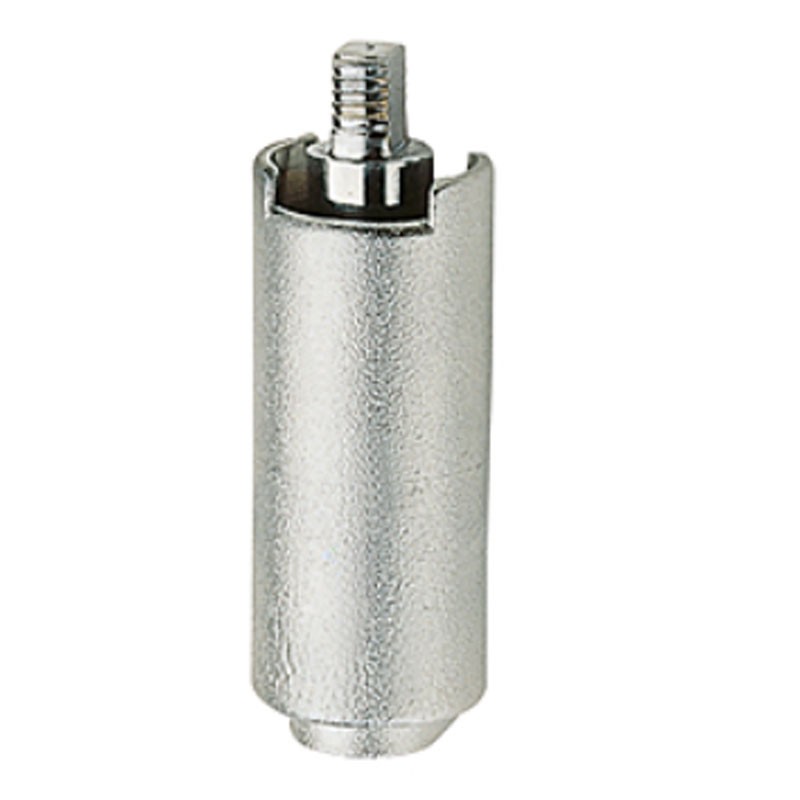

Giacomini tubular extension, in chromed brass, for lever or butterfly handle of ball valves. Dimensions 2 1/2"- 3".
Giacomini tubular extension for valve 2-1/2 - 3 R749TX004
€16.13
Tax included
€16.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Pay in installments with Klarna
The need to achieve energy saving motivated by the protection of the environment, by the increase in the cost of fuels and by the need to be able to deliver to the point of use the vector fluid at the temperature actually needed, has led to a significant increase in the use of insulating materials on the distribution lines of sanitary systems, heating, cooling and air conditioning systems. Just to allow an easy operation of the ball valves installed on the insulated lines, Giacomini has developed the tubular elevations for ball valves.
The particular configuration of Giacomini's ball valves and R749T tubular elevations allows to apply these last ones also on already installed ball valves, without having to interrupt the flow of fluids, vapours, gas or hydrocarbons circulating in the system. Depending on the type of valve installed and its size, the appropriate R749T tubular elevation must be chosen.
Characteristics:
- Giacomini series
- Inner rod, cylindrical protection extension, rod guide washer in brass UNI EN 12165 CW617N
- PTFE packing ring
There are no reviews
Data sheet
- Type: Extension pipes
- Hoses: 2-1/2
3
