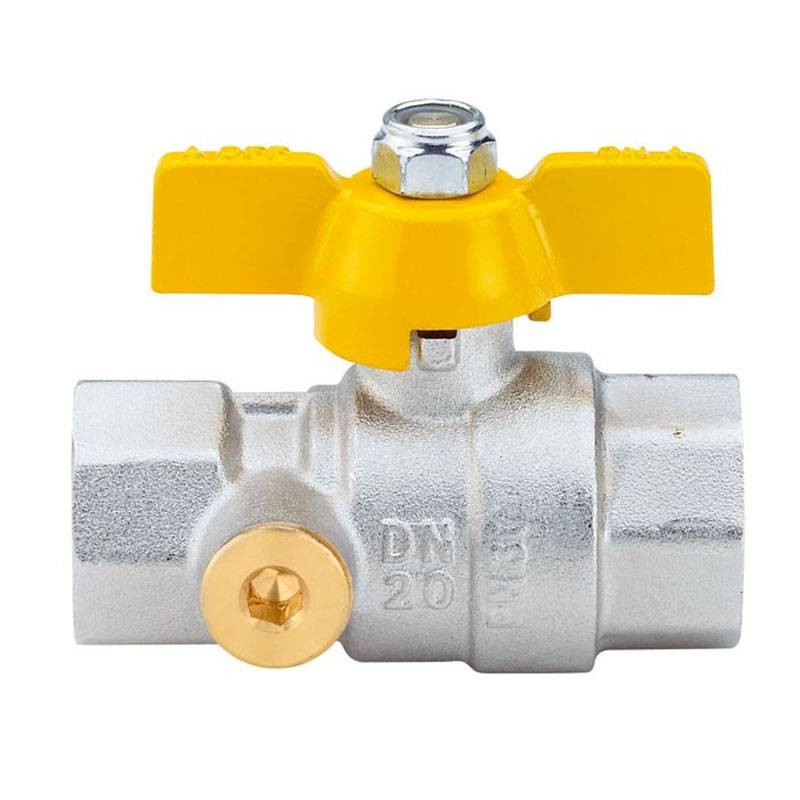

Enolgas Fuel Gas Top Test Butterfly Ball Valve F/F 1/2 S1437N34
06X S1437N34
Enolgas Top Test fuel gas butterfly valve with 1/4 pressure tap with the following features:
- Connection: Female/Female
- Fittings: 1/2
- Material: Steel
- Lever color: Yellow
- Thread: UNI EN 10226 threaded ends
Uses: city gas, natural gas, liquid gas. Top Test ball valves, are also suitable for use with hot and cold water, compressed air, oils and hydrocarbons in general.
Enolgas Fuel Gas Top Test Butterfly Ball Valve F/F 1/2 S1437N34
€9.21
Tax included
€9.21
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Pay in installments with Klarna
The Top test series, gas valves with pressure tapping, is designed following the entry into force of the 2008 Uni CIG 7129 standard which requires the use of the gas valve limited exclusively to the user concerned. For this purpose, if necessary, taps with keys, niches and cabinets with keys for exclusive use, other similar devices are considered suitable.
The range of gas valves belonging to the Top test series includes different combinations: straight, angle and with meter connection. All models are equipped with a pressure tap for testing the system in addition to a delinquency lock.
The pressure tap must be positioned downstream of the plug with respect to the flow direction of the system. Top test valves supplied by Enolgas where equipped with a plug with gasket, are assembled and tested relative to the tightness of the same, so no liability is accepted for improper use by third parties.
Top test ball valves are for full-pass combustible gases with pressure tapping and UNI EN 10226 threaded ends. They are suitable for all types of gas (city, natural gas and liquid gas) as well as hot and cold water and compressed air distribution systems. Top test series gas ball valves are approved according to EN 331.
Features:
- Thread: Threaded ends UNI EN 10226
- Working pressure: For combustible gases 5 MOP - For other uses PN 40 (1/2) to PN 30 (2)
- Temperature limits: For combustible gases -20°C to +60°C - For other uses -20°C to +100°C with cap
The pressure tap must be positioned downstream of the plug with respect to the flow direction of the system. Valves supplied by Enolgas where equipped with a plug with gasket, are assembled and tested relative to the tightness of the same, so no liability is accepted for improper use by third parties.
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Gas
- Hoses: 1/2
