Giacomini thermostatic head liquid sensor quick coupling R470X001
GIA R470X001
8009902095581
Giacomini thermostatic head with low thermal inertia, with liquid sensor, quick coupling system CLIP CLAP. Adjustment positions from * to ☼, corresponding to temperature range 8÷30 °C. Temperature range in combination with valve bodies 5÷110 °C. Maximum working pressure in combination with valve bodies 10 bar.
Giacomini thermostatic head liquid sensor quick coupling R470X001
€11.53
Tax included
€11.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1502
: 233
In order to use heating energy only where and when it is actually needed, the simplest, cheapest and most reliable independent temperature control solution is to equip each radiator in the building with thermostatic valves and thermostatic heads. The thermostatic heads have the function of keeping constant, at the set value, the room temperature of the room in which they are present.
The R470 thermostatic head is equipped with a liquid sensor and Clip Clap quick coupling system to the valve body.
Operation:
The change in temperature of the environment causes a consequent change in the volume of the liquid contained in the sensor inside the head. This volume variation involves the movement of an internal mechanism with consequent closing or opening of the valve and therefore with modulation of the water flow rate entering the heating body. When the desired temperature is being reached in the compartment, the head progressively closes the valve, allowing the minimum amount of water necessary to keep the room temperature constant to pass through, thus saving energy.
Features:
- Giacomini series
- Installable on all thermostatically controlled valves TG, D, F series
- Temperature range in combination with valve bodies: 5÷110 °C
- Storage temperature range: -20÷55 °C
- Maximum working pressure in combination with valve bodies: 10 bar
- Maximum differential pressure in the valve: 1.4 bar (3/8", 1/2"); 0.7 bar (3/4")
- Minimum head setting: 8 °C in position
- Maximum head setting: 30 °C in position

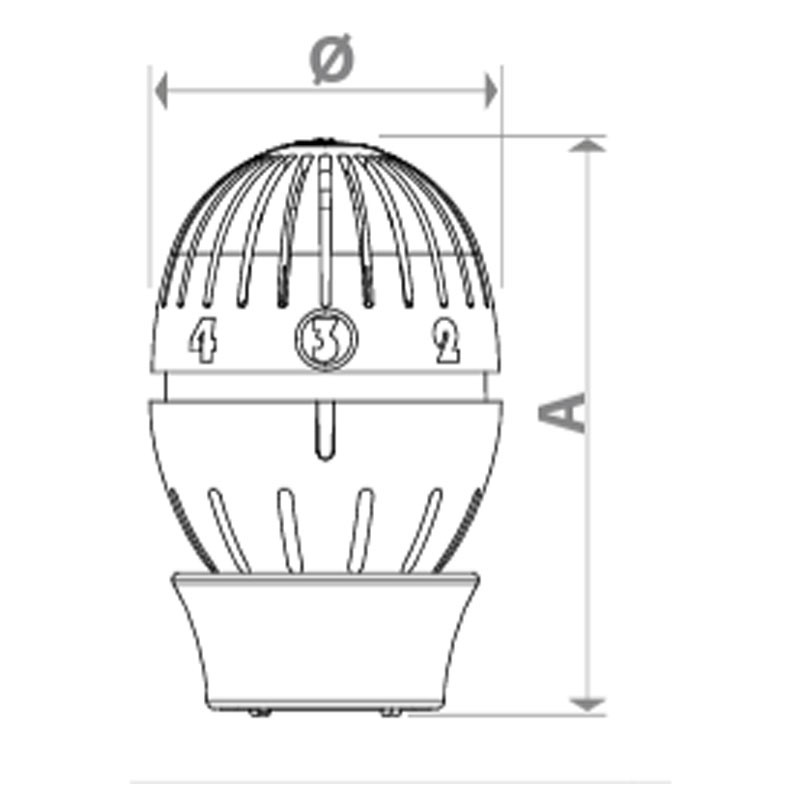

- Dimensions: Height 80 mm - diameter 49 mm
Tutto ottimo come da ordine, le valvole sono inballate in scatoli originali.
Semplici da installare e funzionali. A essere ipercritico, cosa che oggi va molto di moda, i numeri delle posizioni sono poco leggibili in penombra.
Funciona perfectamente y es como se anuncia
Muy fácil la conexión, es sacar uno y poner otro
El producto es el original y es exactamente igual que el comprado en España pero casi a mitad de precio. Por poner una pega diré que el envío economy a tardado 12 días en llegar, pero dentro del plazo estipulado. Volveré a comprar en Elettonew.
Ottimo acquisto ad un prezzo super competitivo
Je viens de l installer, je préfère attendre avant de laisser un commentaire.
De bonne qualité, origine giacomini,.
Produit conforme. Livraison rapide. Prix compétitifs.
Justo lo que necesitaba , es perfecto todo según descripción
Data sheet
- Type:
- Thermostatic Radiator Valves
