Vimar Plana Connected Dual Control for roller shutters White 14594.0
VIW 14594.0
8007352628540

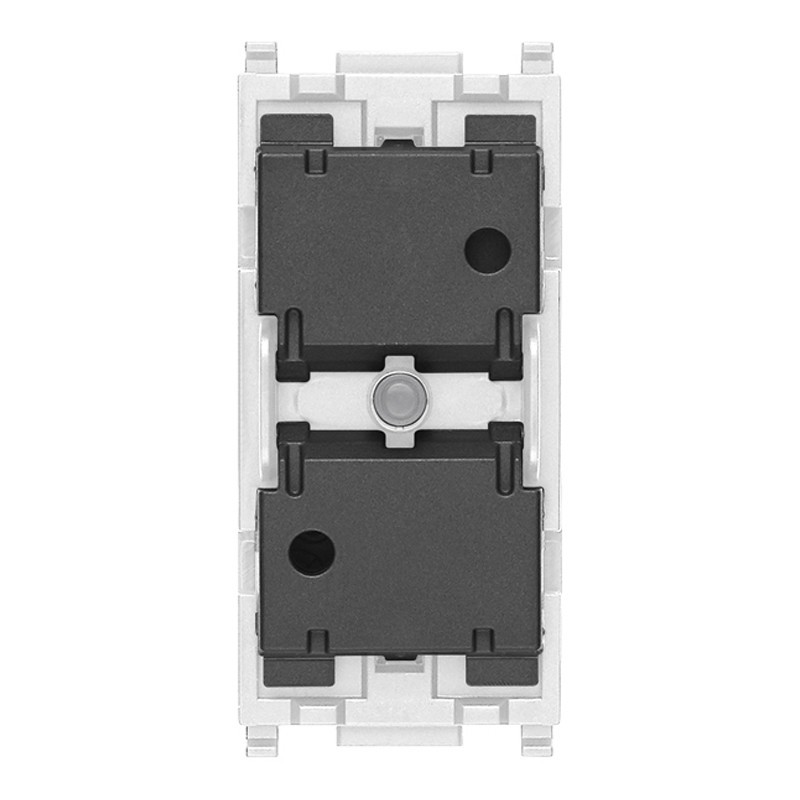

Vimar Plana Wireless VIEW Connected Dual Control for 1 roller shutter, White colour. To be completed with two interchangeable half-buttons 1 Plana module 14755.2
Vimar Plana Connected Dual Control for roller shutters White 14594.0
€47.00
Tax included
€47.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 257
: 28
Pay in installments with Klarna
Frequently bought together
Electronic control device VIEW Wireless for 1 roller shutter with slat orientation with relay output in exchange for motor cos 0,6 2 A 100-240 V~ 50/60 Hz, local control with push button or remote control, double IoT technology on Bluetooth 5.0 standard for realization of VIEW Wireless mesh system and on Zigbee 3 standard.0, 1 input for external button to recall a scenario, preferred position recall function, RGB LED dark detection with intensity adjustment, power supply 100-240 V 50/60 Hz, to be completed with two interchangeable half-buttons 1 Plana module.
ADVANTAGES
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology
- Compatible with Alexa, Google Home and IFTTT, through the appropriate gateway or Zigbee hub.
The device allows you to control the roller shutter/lamp through the keys on board and via a wireless connection.
The device has the possibility to be controlled with two different radio standards (exclusive between them): Bluetooth mesh (default) or Zigbee (settable through APP VIEW Wireless).
The Bluetooth mesh network implies the presence of the 20597-19597-16497-14597 gateway while for the dialogue via Zigbee you need a Zigbee gateway (such as Amazon Echo Plus, Echo Show or Echo Studio). It is equipped with a 2 monostable relays output with interlocked drive, i.e. with mutually exclusive activation of the relays with minimum interlocking time.
In case of power failure the relays both remain open.
The front keys of the device control only the roller shutter actuator on board: - Short pressure: if the roller shutter is stopped, the slat rotation occurs; if the roller shutter is moving, it stops. - Long pressure: the upper button raises the shutter while the lower button lowers it. - Double pressure on any of the two buttons: recall the preferred position (storage is done using the VIEW Wireless App).
Features:
- Rated supply voltage: 100-240V~, 50/60Hz
- Power dissipation: 0.55 W
- RF power transmitted:
Facile da installare e configurare, funziona perfettamente sia dall'app vimar sia con Alexa
prodotto in linea alle aspsettative , consigliato
Ottimo prodotto, semplice da installare e configurare. Consigliato.
Data sheet
- Main Commands: Rolling shutters
