Contact Bipolar Modular Terminal Block 2P 125A 11-hole CM1152
IIC CM1152
8028045003055
Contact Bipolar Modular Terminal Block with the following features:
- Number of holes per rod: 7 (Ø 5.5) - 2 (Ø 7.5 - 2 (Ø 9.0))
- Conductor section with ferrule (mm2): 1.5/6 - 6/16 - 10/25
- Conductor section without ferrule (mm2): 2.5/6 - 10/25 - 10/35
- Tightening torque: 2 Nm
- Number of modules: 6
- Capacity: 125A
- 19 lpk
- 4.2 lcw

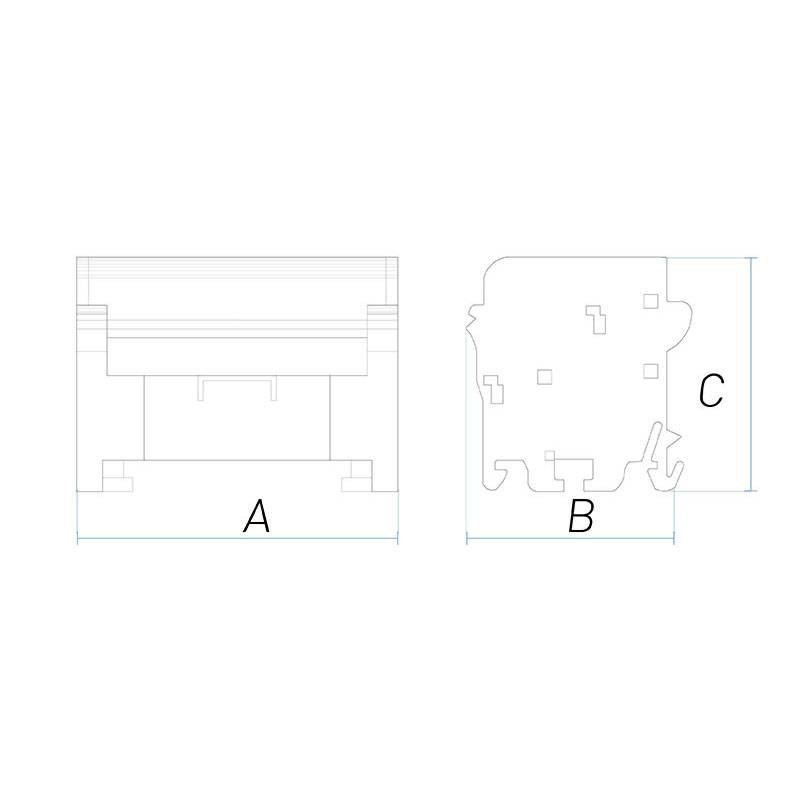

- Dimensions: 107x48x50 (A-B-C)
Contact Bipolar Modular Terminal Block 2P 125A 11-hole CM1152
€12.22
Tax included
€12.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 27
Descrizione non trovata
There are no reviews
Data sheet
- Type:
- Terminal blocks
