Schneider 4P 125A 60-hole tatrapolar terminal block LGY412560
SNR LGY412560
3606480542107

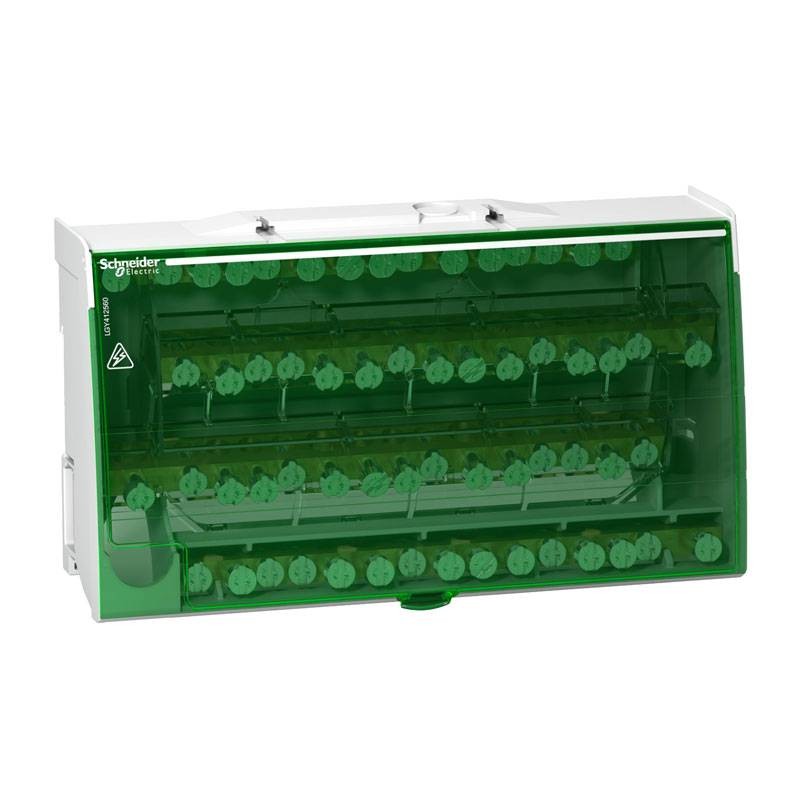

Schneider tatrapolar terminal block with the following features:
- Number of poles: 4P
- Rated operating voltage: 230 V "AC" phase/neutral - 440 V "AC" phase/phase
- Rated insulation voltage: 500 V "AC"
- Rated impulse withstand voltage: 8 kV
- Rated use current: 125 A at 40 °C
- Rated short-time admissible current: 4.2 kA for 1s
- Nominal peak allowable current: 28 kA
- 9 mm steps: 20
Schneider 4P 125A 60-hole tatrapolar terminal block LGY412560
€51.91
Tax included
€51.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Pay in installments with Klarna
Other technical information:
- Linergy DS screw distribution block can be installed on standard DIN rail or mounting plate.
- It is dedicated to 4P installations. Number of poles: 4
- Total connection capacity is 60 holes (4 x 15
- The rated operating current Ie is 125 A
- The rated peak allowable current Ipk/60ms is 18 kA, Ipk/6ms is 28 kA
- Nominal permissible short-time withstand current Icw according to IEC/EN 60947-7-1 is 4.2kA ms/1s
- Width in 9 mm steps: 20 steps
- Terminal capacity is 1 x 9mm diameter, 3 x 8.5mm diameter, 4 x 6.5mm diameter
- The rated insulation voltage Ui is 500 V AC
- The rated impulse withstand voltage Uimp is 8 kV
- The rated operating voltage Ue is 230VAC (Ph/n), 440VAC (Ph/Ph)
- The frequency of use is 50 Hz or 60 Hz
- The degree of fouling is 3
- The overvoltage category is III
- According to IEC/EN 60947-1 the dielectric strength is 2500V AC
- The cross-sectional area of the core is 35 mm2
- Dimensions are (H) 100 mm x (W) 162 mm x (D) 50.5 mm
- Weight: 559 grams
- The operating temperature is -25 °C to +55 °C
- The product complies with IEC/EN 60947-7-1 and IEC/EN 61439-1 and 2
Terminal connections:
- Power supply: screw terminal 1 cables 1035 mm² rigid
- Power supply: screw terminal 1 cables 635 mm² flexible with cable termination
- Distribution: screw terminal 3 cables 635 mm² rigid
- Distribution: screw terminal 3 cables 425 mm² flexible with cable termination
- Distribution: screw terminal 11 cables 1.516 mm² rigid
- Distribution: screw clamp 11 cables 1.510 mm² flexible with cable termination
Tightening torque:
- Distribution: 2 Nm flat screwdriver 6.5 mm
- Distribution: 2 Nm PZ2 screwdriver plate 6.5 mm
- Feeding: 2.5 Nm flat screwdriver 9.5 mm
- Feeding: 2.5 Nm PZ2 screwdriver plate 9.5 mm
- Distribution: 2 Nm flat screwdriver 8.5 mm
- Distribution: 2 Nm PZ2 screwdriver 8.5 mm
Dimensions and weight:
- Height: 100 mm
- Width: 174 mm
- Depth: 50.5 mm
- Weight: 562 grams
There are no reviews
Data sheet
- Type: Terminal blocks
