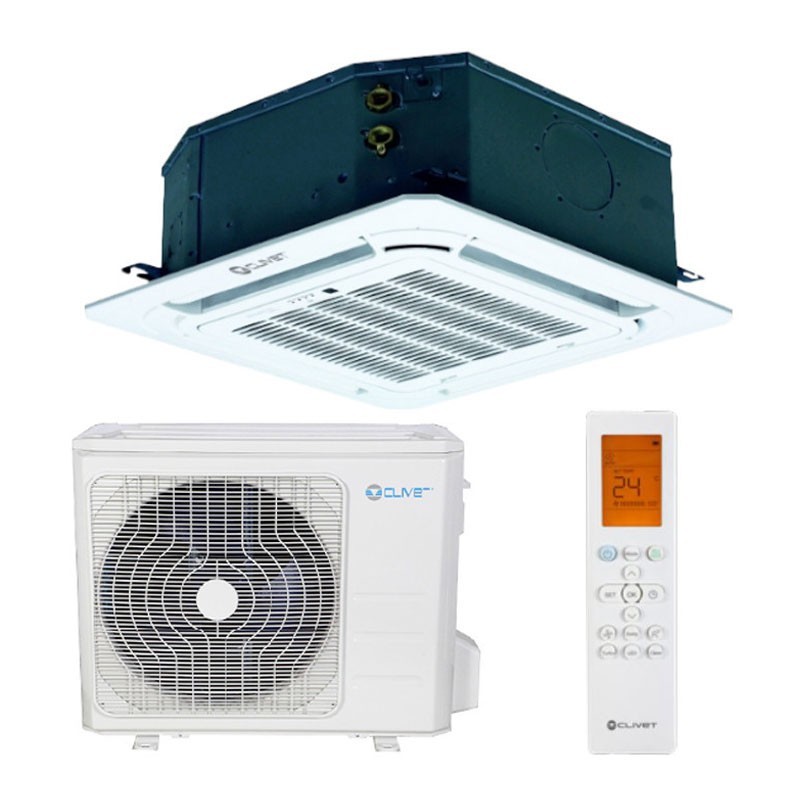

Clivet Cassette Air conditioner 3,5KW 12000btu Inverter A++/A+ R32
KIT IB3-XY35M
Clivet 3.5KW 12000btu Inverter cassette air conditioner with new GAS R32, consisting of:
- 1 outdoor unit MONO (article MC3-Y35M)
- 1 indoor 4-WAY cassette unit (article IB3-XY35M)
- 1 Panel grid for BOX SM/ BOX-SL 650x650 (T-MBQ403B4 - 89132268)
- 1 remote control
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Clivet Cassette Air conditioner 3,5KW 12000btu Inverter A++/A+ R32
€1,016.97
Tax included
€1,016.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
Benefits:
- Compact design for standard 90x90cm ceilings
- Integrated condensate drainage pump, 1000mmh2o of prevalence
- Ready to work with a fraction of fresh air
Comfort functions:
- Follow Me: room temperature can be detected by a sensor located in the remote control.
- Turbo: Activation of a super maximum fan rotation speed, normally not available
- Do not disturb: Deactivation of sound alerts, display shutdown and use of super minimum fan speed
- Continuous speed adjustment
- Super quiet
- 6-Speed Outdoor Ventilation: The outdoor unit fan adjusts between 6 speed levels for energy saving and better comfort.
- Anti cold air function
- Temperature Compensation: Correction of the temperature detected in the room to consider the value of stratification.
Reliability:
- Refrigerant leakage alarm
- Auto diagnosis
- Emergency function
- Auto defrost
- Technical room air conditioning
- Condensate drain pump
- Reverse fan rotation
Practicality:
- Manual on/off
- On/Off contact
- Remote alarm port
- Stored Fins orientation
- Auto Restart
- Timer
Energy saving / Health:
- Sleep Function
- Gear Allows user to set standard or energy efficient operation of 75% or 50%.
- I-Clean indoor unit cleaning cycle that prevents the formation of odors and mold.
- Air intake
Technical specifications:
- Type/series 4-way mini cassette
- Operation dehumidification, cooling, heating
- Connection pipes (pipes not included) gas ø (inch. - mm.) 3/8 - 9.52 diameter
- Inverter technology
- Connection pipes (pipes not included ) liquid ø (inch. - mm.) 1/4 - 6.35 diameter
- Not Controllable by Smartphone (WiFi)
COOLING:
- Nominal capacity (Min/Max) 12000btu (2900-14000) - Kw 3.5 (0.9-4.1)
- Cooling nominal input power: 1010W (168-1434)
- Absolute Rated Cooling Current (Min/Max) 4.45 (1.32-6.31)
- SEER: Seasonal Energy Efficiency 6.10
- Seasonal energy efficiency class A++
- Indicative annual energy consumption 186 kWh/a
- Nominal efficiency EER 3.48
HEATING:
- Nominal heating capacity (Min/Max) 13000 (1600-14700) - Kw 3.8 (0.5-4.3)
- Nominal power consumption (Min/Max) 1019W (124-1376)
- Rated Current Consumption (Min/Max) 4.73A (1.04-6.07)
- COP: Energy Efficiency 3.74
- SCOP: Seasonal energy efficiency 4.0
- Seasonal energy efficiency class A+ (average climate conditions)
- Indicative annual energy consumption 922 kWh/a
INDOOR UNIT IB3-XY35M:
- Dimensions: in mm (WxDxH) 570x570x260
- Sound power level dB(A) 57
- Sound pressure Hi/Mid/Lo dB(A) 42/37.5/34.5
- Weight 16,3 Kg
- Air filter type R/W
- Air flow Hi/Mid/Lo 569/485/389 m3/h
- Power supply 230V 50Hz

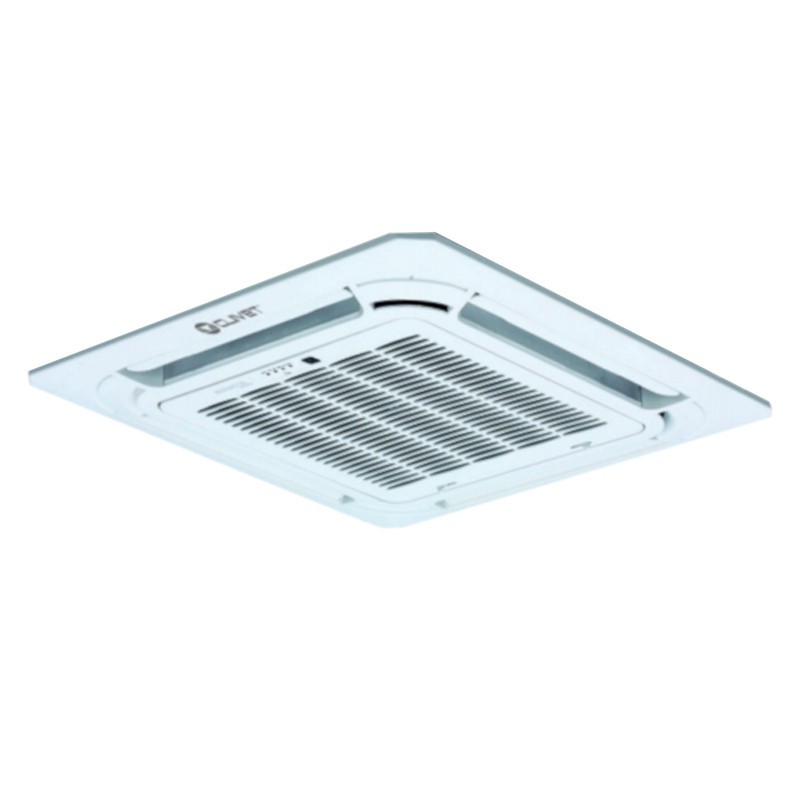

GRID / Panel T-MBQ403B4 (included):
- Panel for Box 2 (650x650) 360 degree air delivery, grille with round holes.
- Dimensions in mm (WxHxD) 650x650x55
OUTDOOR UNIT MC3-Y35M :
- Refrigerant gas R32
- Dimensions in mm (WxDxH) 765x303x555
- Weight 26,6 Kg
- Sound power dB(A) 62
- Sound pressure dB(A) 53.6
- Refrigerant R-32 GWP 675
- Power supply voltage 230V - Frequency 50hz - Phases 1
- Operating range in cooling mode EU -15 / 50 degrees
- Operating range in heating EU -15 / 24 degrees
- External connections liquid diameter 6,35 (1/4")
- External Gas connections diameter 9.52 (3/8")
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- Room Size: 35m²
- Energy class: A++
- Series: BOX-SL
