Clivet Cassette Air Conditioner 7KW 24000BTU Inverter A++/A+ R32
KIT IA3-XY70M

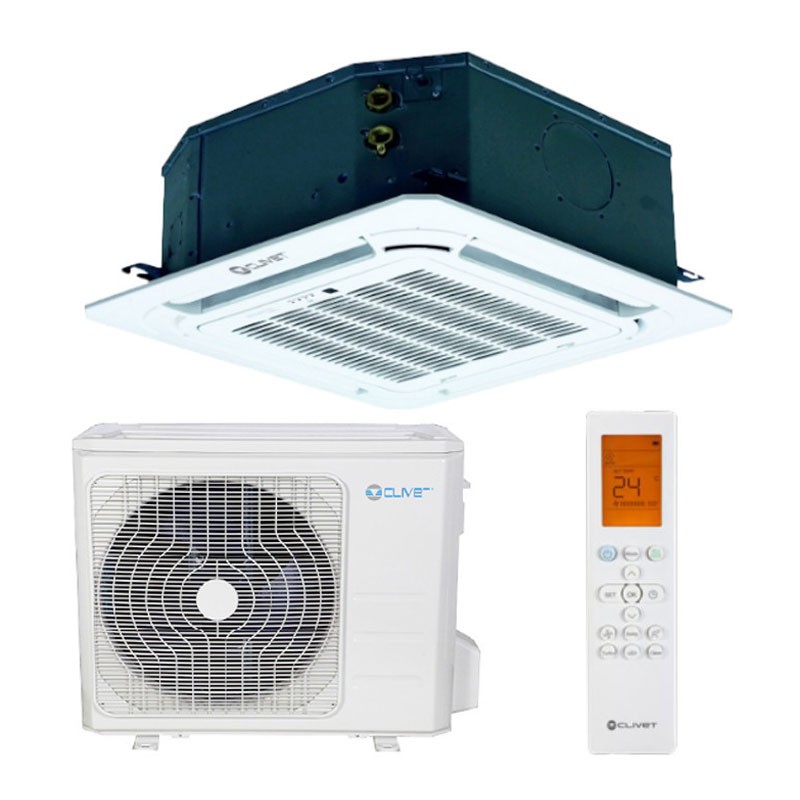

Clivet 7KW 24000BTU Inverter cassette air conditioner with new GAS R32, consisting of:
- 1 MONO outdoor unit (article MC3-Y70M)
- 1 indoor unit with 4 ways cassette (article IA3-XY70M)
- 1 panel grid 950x950 (T-MBQ4-04B)
- 1 remote control (RG10A-D2S-BGEF)
For a room of approximately 78m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Clivet Cassette Air Conditioner 7KW 24000BTU Inverter A++/A+ R32
€1,479.97
Tax included
€1,479.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Benefits:
- Compact design for standard 90x90cm ceilings
- Built-in condensate drainage pump, 1000mmh2o of prevalence
- Provision to work with a fraction of fresh air
Comfort functions:
- Follow Me: room temperature can be detected by a sensor located in the remote control.
- Turbo: Activation of a super maximum fan rotation speed, normally not available
- Do not disturb: Deactivation of sound alerts, display shutdown and use of super minimum fan speed
- Continuous speed adjustment
- Super quiet
- 6-Speed Outdoor Ventilation: The outdoor unit fan adjusts between 6 speed levels for energy saving and better comfort.
- Anti cold air function
- Temperature Compensation: Correction of the temperature detected in the room to consider the value of stratification.
Reliability:
- Refrigerant leakage alarm
- Auto Diagnosis
- Emergency function
- Auto defrost
- Technical room air conditioning
- Condensate drain pump
- Reverse fan rotation
Practicality:
- Manual on/off
- On/Off contact
- Remote alarm port
- Stored Fins orientation
- Auto Restart
- Timer
Energy saving/Health:
- Sleep Function
- Gear Allows user to set standard or energy efficient operation of 75% or 50%.
- I-Clean indoor unit cleaning cycle that prevents the formation of odors and mold.
- Air intake
Technical specifications:
- Type/series 4-way mini cassette
- Operation dehumidification, cooling, heating
- Connection pipes (pipes not included) gas ø (inch. - mm.) 5/8 - 15.9 diameter
- Inverter technology
- Connection pipes (pipes not included ) liquid ø (inch. - mm.) 3/8 - 9.52 diameter
- Not Controllable by Smartphone (WiFi)
COOLING:
- Rated Capacity (Min/Max) 24000btu (11263-27000) - Kw 7.0 (3.3-7.9)
- Cooling nominal input power: 2320W (780-2748)
- Cooling Nominal Absolute Current (Min/Max) 10.2 (4.2-12.0)
- SEER: Seasonal Energy Efficiency 6.10
- Seasonal energy efficiency class A++
- Indicative annual energy consumption 395 kWh/a
- Rated efficiency EER 3.28
HEATING:
- Rated heating capacity (Min/Max) 26000 (9600-30500) - Kw 7.6 (2.8-8.9)
- Rated power consumption (Min/Max) 1900W (610-2700)
- Rated Current Consumption (Min/Max) 8.5A (3.6-12.1)
- COP: Energy Efficiency 4.01
- SCOP: Seasonal energy efficiency 4.0
- Seasonal energy efficiency class A+ (average climate conditions)
- Indicative annual energy consumption 2100 kWh/a
INDOOR UNIT IA3-XY70M:
- Dimensions: in mm (WxHxD) 830x830x205
- Sound power dB(A) 59
- Sound pressure Hi/Mid/Lo dB(A) 50/47,5/42
- Weight 21,6 Kg
- Air filter type R/W
- Air flow Hi/Mid/Lo 1247/1118/992 m3/h
- Power supply 230V 50Hz

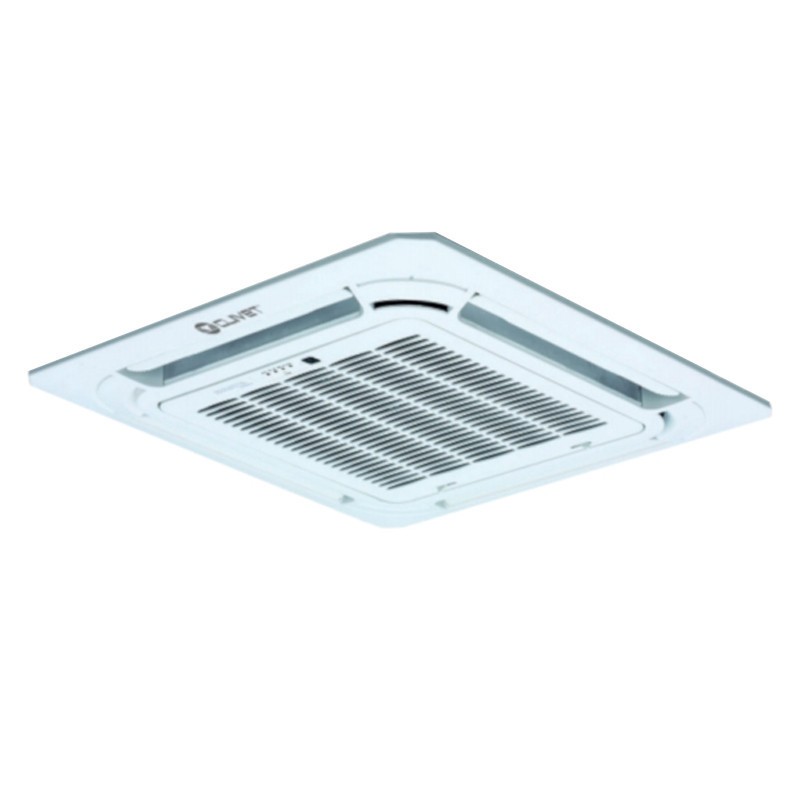

GRID/Panel T-MBQ4-04B (included):
- Panel for Box 2 (950x950) 360 degree air delivery, grille with round holes.
- Dimensions in mm (WxHxD) 950x950x55
OUTDOOR UNIT MC3-Y70M :
- Refrigerant gas R32
- Dimensions in mm (WxHxD) 890x342x673
- Weight 43,9 Kg
- Sound power dB(A) 69
- Sound pressure dB(A) 60
- Refrigerant R-32 GWP 675
- Power supply voltage 230V - Frequency 50hz - Phases 1
- Operating range in cooling mode EU -15 / 50 degrees
- Operating range in heating EU -15 / 24 degrees
- External connections liquid diameter 9,52 (3/8")
- External Gas connections diameter 15,9 (5/8")
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 24000 BTU (7,1 Kw)
- Room Size: 78m²
- Energy class: A++
- Series: BOX-SL
