Clivet Cassette Air conditioner 10KW 36000BTU Inverter A++/A+ R32
KIT IA3-XY105M

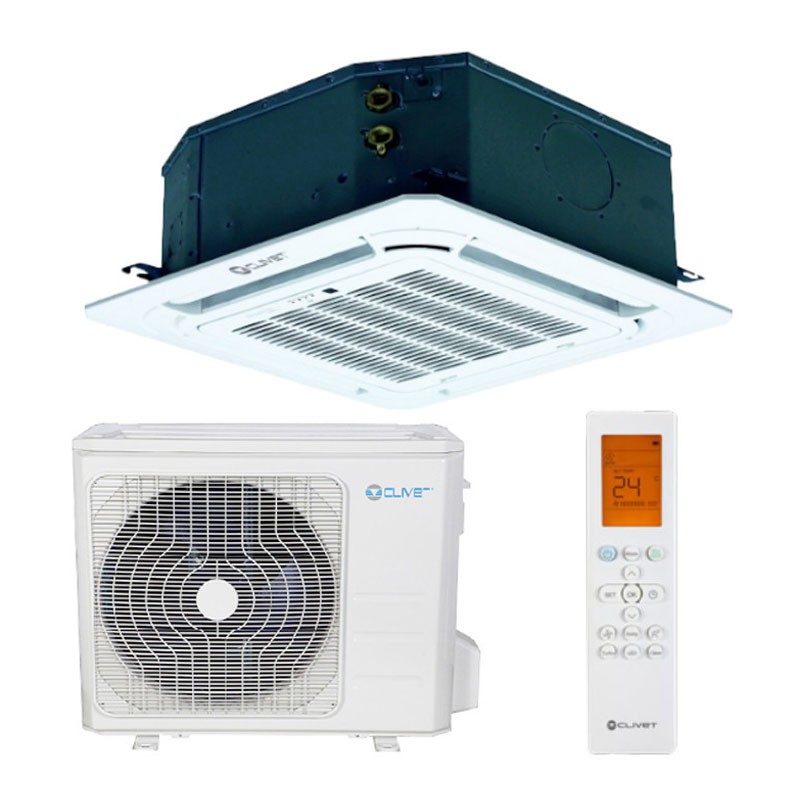

Clivet 10KW 36000BTU Inverter cassette air conditioner with new GAS R32, consisting of:
- 1 MONO outdoor unit (item MC3-Y105T),

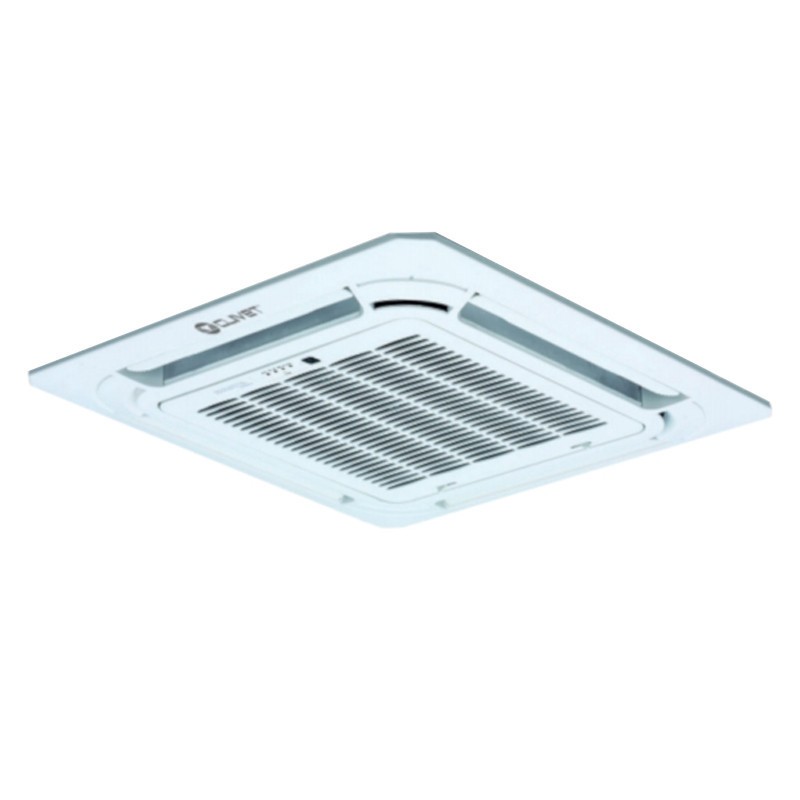

- 1 indoor 4-Way cassette unit (item IA3-XY105M),
- 1 grill Panel T-MBQ4-04B (PEKA00001(IA3-XY)
- 1 remote control (RG10A-D2S-BGEF).
For a room of approximately 150m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Clivet Cassette Air conditioner 10KW 36000BTU Inverter A++/A+ R32
€2,352.97
Tax included
€2,352.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Advantages:
- Compact design for standard 90x90cm ceilings
- Built-in condensate drain pump, 1000mmh2o head
- Provision for working with a fraction of fresh air
Comfort functions:
- Follow Me: Room temperature can be detected by a sensor located in the remote control.
- Turbo: Activation of a super maximum fan speed, normally not available
- Do Not Disturb: Turning off sound alerts, turning off display and using super minimum fan speed
- Continuous speed adjustment
- Super quiet
- 6-Speed Outdoor Ventilation: outdoor unit fan adjusts between 6 speed levels for energy saving and better comfort.
- Anti Cold Air Function
- Temperature compensation: Correction of the temperature detected in the room to consider the value of stratification.
Reliability:
- Refrigerant leakage alarm
- Self diagnosis
- Emergency function
- Auto defrost
- Technical room air conditioning
- Condensate drain pump
- Opposing fan rotation
Convenience:
- Manual on/off
- On/Off contact
- Remote alarm port
- Stored orientation Fins
- Auto Restart
- Timer
Energy Saving/Health:
- Sleep Function
- Gear Allows user to set standard or energy efficient operation of 75% or 50%
- I-Clean indoor unit cleaning cycle that prevents odor and mold growth.
- Air intake intake
Specifications:
- Type/series Cassette 4-way mini
- Operation dehumidification, cooling, heating
- Piping connection (pipes not included) gas ø (inch. - mm.) 5/8 - 15.9 diameter
- Inverter technology
- Piping connection ( tubes not included) liquid ø (inch. - mm.) 3/8 - 9.52 diameter
- Not Controllable by Smartphone (WiFi)
COOLING:
- Rated capacity (Min/Max) 36000btu (9200-39000) - Kw 10.6 (2.7-11.4)
- Rated Power Consumption Cooling: 3950W (900-4200)
- Absolute rated current Cooling (Min/Max) 17.5 (4.2-18.5)
- SEER: Seasonal energy efficiency 6.10
- Seasonal energy efficiency class A++
- Indicative annual energy consumption 549 kWh/a
- Rated efficiency EER 3.33
HEATING:
- Rated heating capacity (Min/Max) 38000 (9500-42000) - Kw 11.1 (2.8-12.3)
- Rated power consumption (Min/Max) 3000W (800-3950)
- Rated power consumption (Min/Max) 17.5A (4.2-18.5)
- COP: Energy Efficiency 3.71
- SCOP: Seasonal energy efficiency 4.0
- Seasonal energy efficiency class A+ (average climatic conditions)
- Indicative annual energy consumption 2975 kWh/a
INDOOR UNIT IA3-XY105M:
- Dimensions: in mm (WxHxD) 830x830x245
- Sound power dB(A) 64
- Hi/Mid/Lo sound pressure dB(A) 51/48/46
- Weight 27.2 kg
- Air filter type R/W
- Air flow rate Hi/Mid/Lo 1700/1530/1300 m3/h
- Power supply 230V 50Hz
GRID / Panel T-MBQ4-04B (included):
- Panel for Box 2 (950x950) air delivery 360 degrees, grille with round holes.
- Dimensions in mm (WxHxD) 950x950x55
OUTDOOR UNIT MC3-Y105M :
- R32 refrigerant gas
- Dimensions in mm (WxDxH) 946x410x810 mm
- Weight 88.50 kg
- Sound power dB(A) 70
- Sound pressure dB(A) 63
- Refrigerant R-32 GWP 675
- Power supply voltage 400V - Frequency 50hz - Phases 3+N
- Operating range in cooling EU -15 / 50 degrees
- Operating range in heating EU -15 / 24 degrees
- External connections liquid diameter 9.52 (3/8")
- External connections Gas diameter 15.9 (5/8")
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 36000 BTU (10 Kw)
- Room Size: 150m²
- Energy class: A++
- Series: BOX-SL
