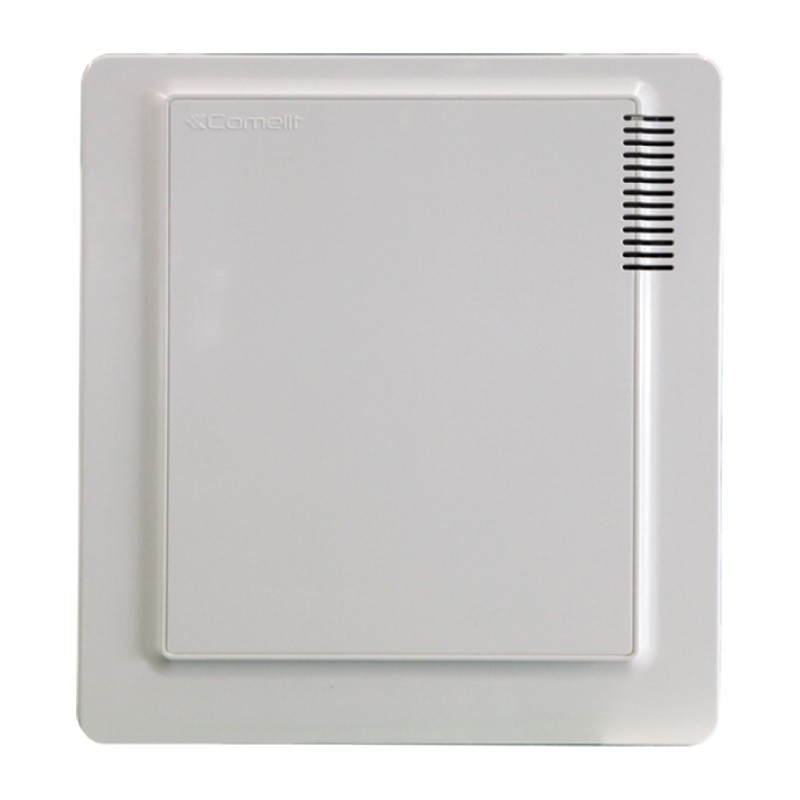

Central burglar Comelit Vedo series 8 zones expandable to 34 zones
COE VEDO34
8023903292435
Central burglar Comelit Vedo series 8 zones expandable to 34 zones, in a wall-mounted container in flameproof ABS with 1.5A switching power supply.
Central burglar Comelit Vedo series 8 zones expandable to 34 zones
€206.86
Tax included
€206.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
: 2
Pay in installments with Klarna
Frequently bought together
Equipped with 8 zones on board, expandable to 34 mixed wired/radio zones, 1 24-hour zone, double function for up to 68 zones, integrated PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs.
Manages up to 8 areas with 8 different insertion programs (scenarios) and daily timers, 8 IN/OUT expansions, 8 proximity readers, 8 Safe Key keypads, 2 Safe Touch, 2 Planux/Mini Touch Manager and 2 radio receivers.
Self-resetting fuse for the siren power output, RS485 serial bus and sensor power supply.
Provided with USB port for connection to PC with Safe Manager configuration software.
All zones are configurable as NC, NO, single, double and triple balanced and as double zone.
Manages up to 8 areas with 8 different insertion programs (scenarios) and daily timers, 8 IN/OUT expansions, 8 proximity readers, 8 Safe Key keypads, 2 Safe Touch, 2 Planux/Mini Touch Manager and 2 radio receivers.
Self-resetting fuse for the siren power output, RS485 serial bus and sensor power supply.
Provided with USB port for connection to PC with Safe Manager configuration software.
All zones are configurable as NC, NO, single, double and triple balanced and as double zone.
Features:
- Total number of inputs 8 expandable to 34
- Number of inputs on board (n°) 8
- Double function Yes
- Maximum number of zones with Double function (n°) 68
- Type of balancing NA, NC, single, double, triple
- Number of radio zones (No.) 34
- Number of outputs (No.) 36
- Number of relay outputs on board the control unit 1 (3A@24VDC)
- Number of TC outputs on board (No.) 2
- Number of areas (No.) 8
- Number of user codes (No.) 32
- Number of installer codes (No.) 6
- Number of partitions managed (No.) 2
- Number of switching programs (scenarios) (No.) 8
- Number of time slots (no.) 16
- Number of timers (No.) 8
- Audio messages - Text to speech (No.) 32
- Central unit programming USB, LAN
- Marks/certifications EN50131 grade 2, Incert
- Telephone numbers managed by the digital communicator (No.) 4
- Telephone numbers managed by the voice communicator (No.) 16
- Type of connection bus RS485
- Maximum number of e-mail addresses (No.) 16
- Integrated digital communicator Yes
- Voice guidance interface management Yes
- Vedo App
- Safe Manager software
- Dimensions: Height (mm) 275 Width (mm) 255 Depth (mm) 75
- Weight (g) 1700
- Operating temperature (°C) -10 ÷ 55
- Coating type ABS
- Colour 5
- Tamper protection Yes
BUS EXPANSION MODULES
- Number of IN/OUT expansions (n°) 8
- Number of proximity readers (n°) 8
- Number of Safekey keyboards (No.) 8
- Number of Safetouch keypads (No.) 2
- Number of supervisors (No.) 2
- Number of radio receivers (no.) 2
- Number of PAL/IP image conversion modules (no.) 2
- Number of managed cameras (n°) 16
PLUG-IN EXPANSION MODULES
- Audio module Yes
- GSM module Yes
- IP module Yes
Electrical characteristics
- Current supplied by the central unit power supply 1500
- Output voltage from the power supply unit 13.8VDC
- Number of auxiliary power outputs on board (n°) 2
- Type of battery provided 12V / 7Ah
There are no reviews
Data sheet
- Type: Control units
- System: With Wires
