KIT Comelit burglar alarm with central VEDO10 KITVEDO10K

Brand: Comelit

Cod: COE KITVEDO10K EAN: 8023903415582

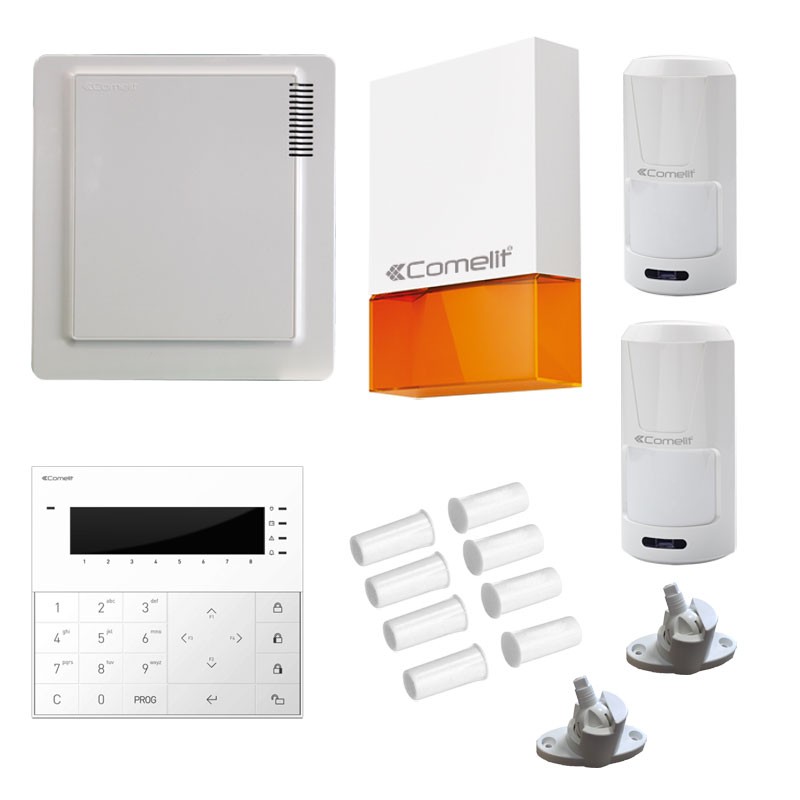

KIT Comelit burglar alarm consists of:

€356.27 Tax included

€356.27

€356.27
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 14

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

KIT components specifications:

VEDO 10 CONTROL UNIT, PLASTIC BOX, ALIM. 1.5A

Vedo series alarm control unit in flameproof ABS wall box with 1.5A switching power supply. Equipped with 8 zones on board, expandable to 18 (2 zones on keyboard and 8 radio zones), 1 zone 24 hours, integrated PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs. It manages up to 2 areas with 2 different insertion programs (scenarios) and daily timers, 2 proximity readers, 2 Safe Key keyboards, 1 Safe Touch, 1 Planux/Mini Touch Manager and 1 radio receiver. Self-resetting fuse for siren power output, RS485 serial bus and sensor power supply. Equipped with USB port for connection to PC with Safe Manager configuration software. All zones are configurable as NC, NO, single, double and triple balanced. Dimensions (W x H x D) 260 x 280 x 80 mm. EN50131 grade 2.

700 GR.2 SERIES OUTDOOR SIREN, WHITE

Self-powered outdoor siren with piezoelectric speaker, managed by microcontroller, equipped with LED flashing light. Two additional LEDs (one red and one green) for displaying system status, power failures, deterrent function and installation mode. Integrated balancing resistance of the excludable tamper contact (1.8Kohm value, already suitable for Comelit Vedo control panels). Configurable polarity of separate inputs for flashing light and speaker. Jumpers for programming: input polarity and logic, maximum alarm time, type of sound, tamper balance, deterrent function.

LCD STANDARD KEYBOARD FOR CONTROL PANELS VEDO

Soft-touch keyboard with alphanumeric LCD screen for the management and programming of Vedo series control panels. Equipped with 4 signalling LEDs (power supply presence, low battery, anomaly and alarm), 2 inputs freely programmable as NC, NO, single, double, triple balanced and double inputs, 4 configurable function keys, tamper and anti-tear. A light sensor on board allows the optimal management of the keyboard backlighting. The device is also equipped with a buzzer for acoustic signalling of the various commands. 8 areas serigraphy. Dimensions 137 x 127 x 24 mm.

DUAL TECHNOLOGY SENSOR, 15M, 90°

Dual technology detector PIR + Microwave 10.525 GHz, range 15m, 90° coverage angle. Selectable AND/OR function, triple-knock function, digital signal analysis. Reverse polarity protection, solid state relay outputs. Three indication leds (alarm, PIR, MW). Microwave and PIR sensitivity adjustment (number of pulses). Pet immune 12Kg (PIR part). Power supply from 9 to 18VDC, alarm consumption 46mA @ 12VDC, standby consumption 23mA @ 12VDC. Mounting height from 1.5m to 3.6m, dimensions 66 x 132 x 60mm. Possibility of mounting on joint (optional).

MAGNETIC CONTACT RECESSED PLASTIC CIGARETTE WHITE
