KIT components specifications:

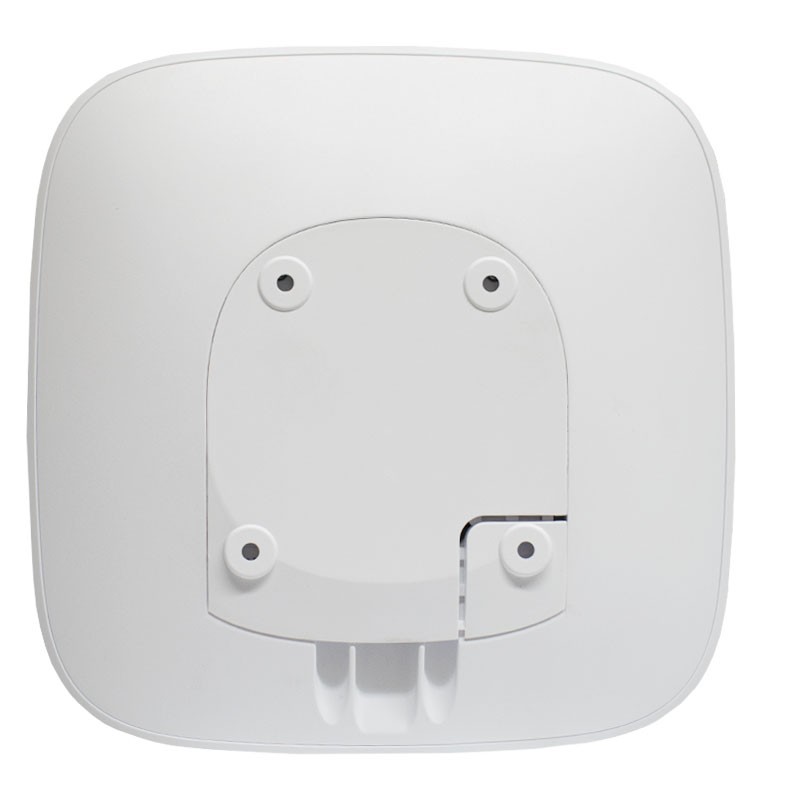

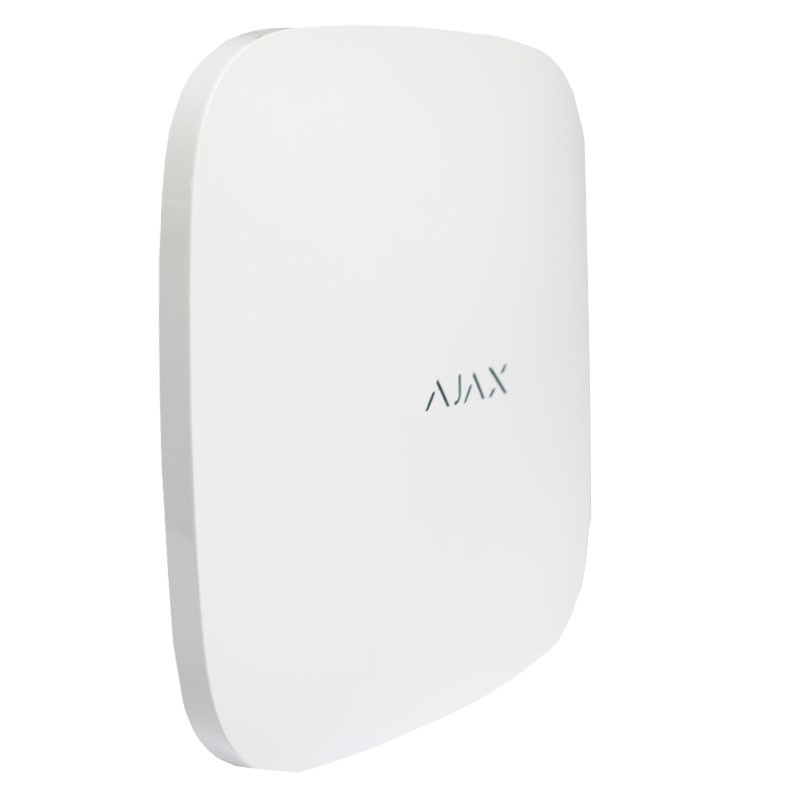

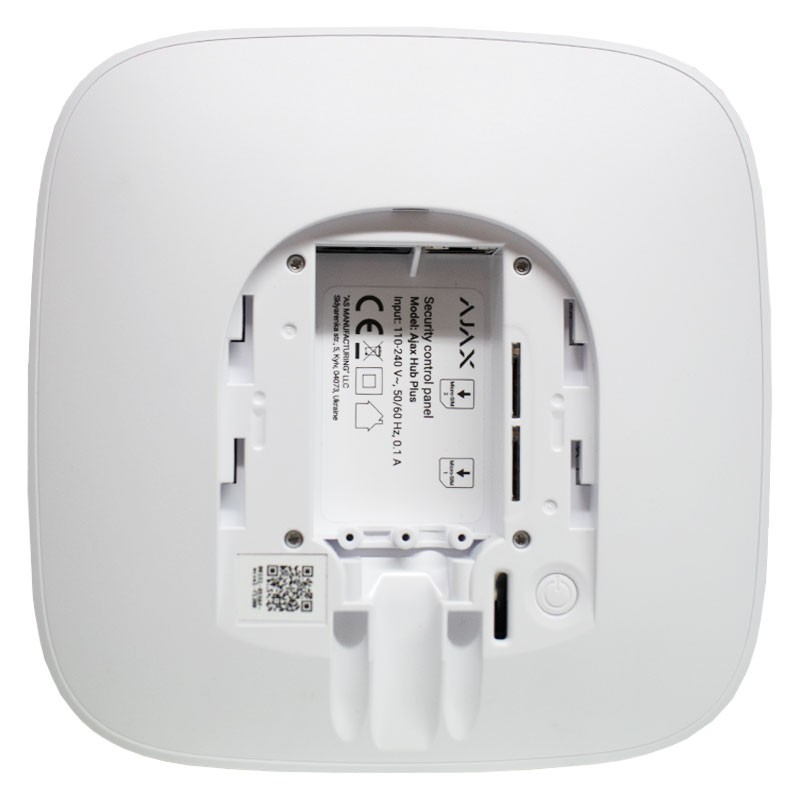

Central Ajax HUB2 PLUS 4G 2 SIM WI-FI HUB2PLUS:

Benefits:

• Hub 2 Plus can manage up to 200 MotionCam detectors and provide photographic confirmations of alarms to users and alarm monitoring companies in as little as 9 seconds, even when using SIM cards for communication. Thanks to LTE support.

• Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location.

• It can automatically engage and disengage the entire security system or certain groups as set. In addition, it can instantly activate an intrusion smoke-producing machine, disconnect power and turn on emergency lights in case of fire, or shut off water in case of leakage.

• Using automation devices, the Hub 2 Plus can control lights, electric locks and shutters.

• Scenarios can be triggered in response to security mode changes, alarm activation or button commands

• The Hub 2 Plus runs on OS Malevich, a real-time operating system developed by Ajax Systems. The OS Malevich operating system is extremely stable, immune to viruses and protected from cyberattacks.

• Hub 2 Plus is ready to use. It comes with pre-installed communicators, a power supply and a spare battery.

• To start setting up the system, you need to plug the device into a power outlet, connect it to the Internet, insert the SIM cards and scan the QR code, using the app. Thanks to SmartBracket, you won't even need to disassemble the device to mount it

• All security system settings are always available in the app. Even when you're away from the hub, you can connect security devices or CCTV cameras, add users, test radio signal strength, create security groups and scenarios, or connect a hub to an alarm monitoring company.

Features:

• Classification Security system control panel with four built-in channels for external communication and camera detector support
• Internal Installation
• Connected devices 200
• Video surveillance support 100 DVR cameras
• Users 200
• Rooms 50
• Security Groups 25
• Connected ReX 5
• Scenarios 64
• App iOS 9.1 and later Android 4.4 and later
• Communication channels 2 SIM cards - 2G (GSM900/DCS1800 (B3/B8)) - 3G (WCDMA 850/900/2100 (B1/B5/B8)) - LTE (FDD B1/B3/B5/B7/B8/B20) - Wi-Fi (802.11 b/g/n) - Ethernet
• Alarm signals Delivery time: 0.15 sec - Notification types: SMS, call, push notification
• Switching between 2G, 3G, LTE instantaneously
• Switching between SIM cards 4 minutes
• CRA Connectivity CRA Connectivity: Contact ID, SIA - Photo verification integrated in Manitou, ABsistemDC(NG), WBB, Horus and SBN
• Operating system OS Malevich
• Power supply: 110-240 V from mains
• Built-in backup battery: Li-Ion 3 ?-h
• Up to 15 hours of battery life when Ethernet or Wi-Fi channels are disabled
• Power consumption from mains 10 W
• Jeweller radio technology: Communication range with detectors: up to 2,000 m in open spaces - Two-way communication between devices - Operating frequencies - 868.0?868.6 MHz - Self-adjusting RF output power: up to 25 mW - Block encryption based on AES algorithm - Detector polling period: 12?300 s - Frequency hopping
• Wings radio technology Transmission of visual confirmations - Verification of packet reception
• Operating temperatures From ?10°? to +40°?
• Anti-tampering systems Counterfeit prevention - Jamming notifications - Tamper to detect opening and disassembly from SmartBracket
• Dimension 163 × 163 × 36 mm
• Weight 351 g.

Components in the package:

• Ajax Hub 2 Plus control panel
• SmartBracket mounting panel
• Power cable
• Ethernet cable
• Installation kit
• SIM Card (location dependent) User Guide

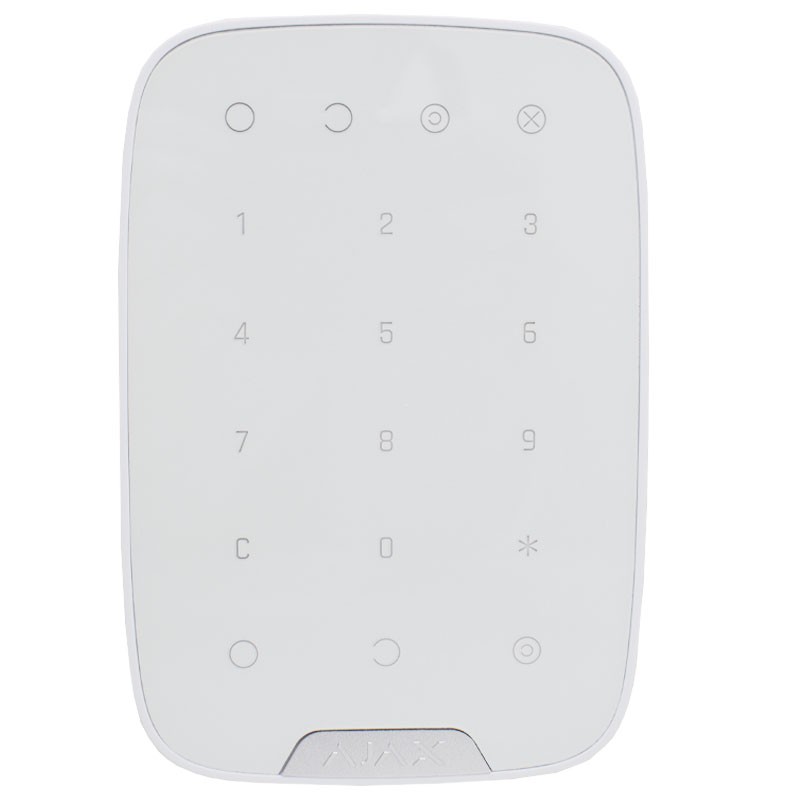

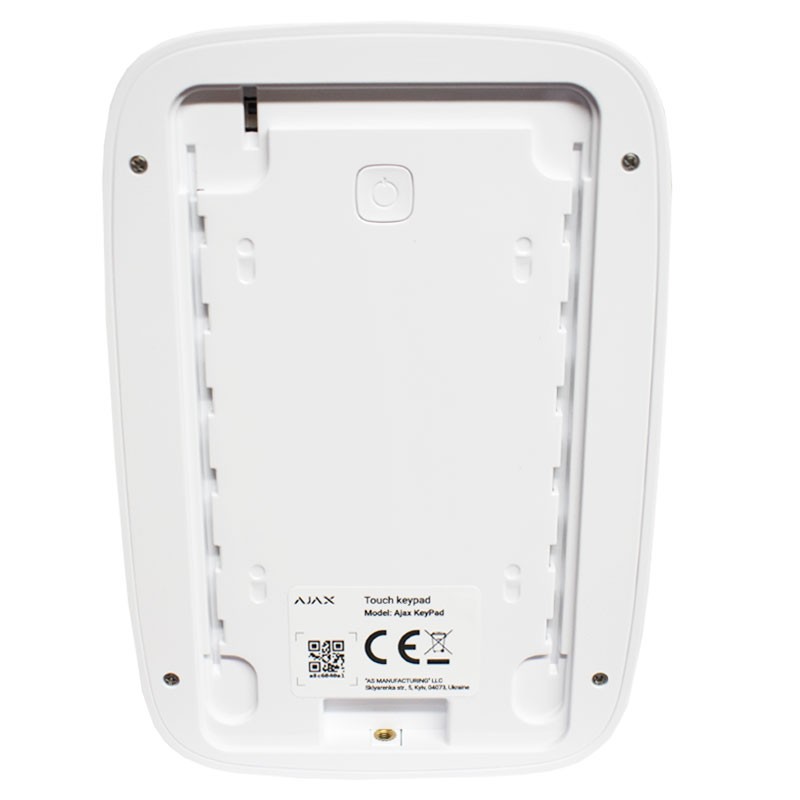

AJ-KEYPAD-W White AJAX Wireless and Touch Keyboard:

Benefits:

• Device activates security modes after entering a digital code on the keypad. Displays indications of security status, detector problems, or interruption of communications with the hub.

• Alarm button available. Sends notification with each password entry attempt and automatically locks when the maximum number of allowed attempts is reached.

• Instantly ready to use: battery is already inserted, no need to disassemble the device. Connects to the hub via mobile app with one click. Mounts to SmartBracket in minutes.

• The device allows you to activate full security mode at the push of a button

• If a thief tries to enter the code, a hidden alarm signal can be sent to the Central Alarm Receiving Unit (CRA)

• The device automatically locks if an incorrect code is entered too many times.

Features:

• Touch keyboard with radio channel
• Keyboard type Wireless, touch
• Indoor installation
• Compatibility Works with Hub, Hub Plus, Hub 2 and ReX only
• Number of buttons 15
• User code
• User code
• Protection against attempts to guess the security code
• On/off indication
• Power supply: Battery: AAA batteries
• Supply voltage: 3 V
• Battery life: up to 2 years
• Temperature sensor
• Operating temperatures From -10°? to +40°?
• Maximum allowable humidity Up to 75%
• Anti-tampering systems Anti-counterfeiting protection - Inhibition detection - Tamper resistant
• Dimensions 150 × 103 × 14 mm
• Weight 197 g.

Package contents

• KeyPad touch keyboard
• SmartBracket mounting panel
• 4 AAA batteries (pre-inserted)
• Installation set
• User guide.

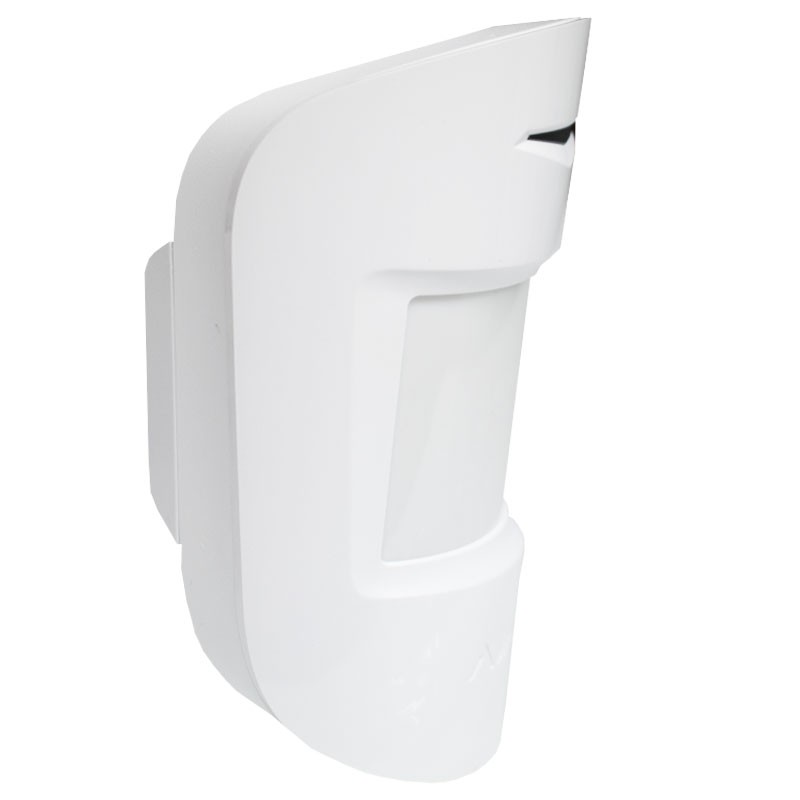

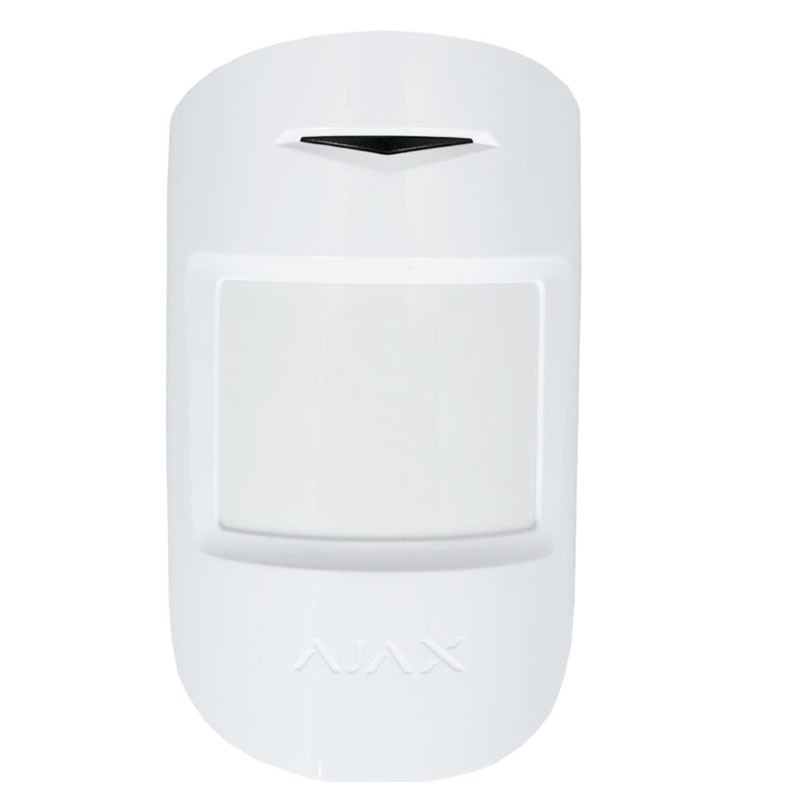

Ajax wireless motion detector with sensor White MOTIONPROTECPLUW:

Advantages:

• Authentication system to prevent counterfeiting
• Detection of inhibition attempts and encrypted communication channels
• Alarm in case of tampering
• Additional microwave sensor filters out possible interference caused by air conditioning and curtain movement
• Device operates for up to 5 years without the need to replace the battery
• Ignores the movement of pets up to 20 kg and a maximum height of 50 cm
• Detects human presence based on temperature difference from background heat radiation. Microwave sensor prevents false alarms caused by complex interference
• Designed for use in rooms with fireplaces and air conditioners. Detects and ignores drafts, curtain and blind movements, light sparks, glare and reflections
• Immediately ready to use
• Battery already installed inside, no need to disassemble the detector
• Mounts in minutes using the SmartBracket stand.

Features:

• Classification Electro-optical security detector with radio channel
• Wireless detector type
• Installation Indoor
• Compatibility Works with Ajax hub, signal repeaters, ocBridge Plus, uartBridge
• Sensor element PIR sensor, microwave sensor (24 GHz)
• Alarm signal reception time 0.15 s
• Motion detection distance Up to 12 m
• Detection angle Horizontal 88.5° Vertical 80° Motion detection speed
• Motion detection speed 0.3 to 2 m/s
• Sensitivity Adjustable, 3 levels
• Recommended height of installation 2.4 m
• Pet immune" technology, ignores pets, Weight up to 20 kg, Height up to 50 cm
• Power supply Battery: CR123A, 3 V
• Battery life Up to 5 years
• Temperature Sensor Available
• Operating Temperatures From ?10°? to +40°?
• Maximum Allowable Humidity Up to 75%.
• Anti-tampering Systems
• Anti-counterfeiting protection
• Inhibition detection
• Tamper resistant
• Dimensions 110 × 65 × 50 mm
• Weight 96 g.

Package contents

• MotionProtect Plus motion detector
• SmartBracket mounting panel
• CR123A battery (pre-installed)
• Installation set
• User guide.



AJAX Wireless Magnetic Contact for Windows and Doors White AJ-DOORPROTECT-W:

Features:

• Classification: magnetic attachment security detector with radio contact channel.
• Detector Type Wireless
• Installation Indoor
• Compatibility Works with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
• Sensor element Reed relay
• Alarm signal reception time 0.15 s
• Activation threshold Small magnet 1 cm - Large magnet 2 cm
• Power supply: Battery: CR123A battery
• Supply voltage: 3 V
• Battery life: up to 7 years
• Temperature sensor
• Operating temperatures From -10°? to +40°?
• Maximum Allowable Humidity Up to 75%
• Anti-tampering systems: Anti-counterfeiting protection - Inhibition detection - Tamper resistant
• Dimensions: Diameter: 20 mm - Height: 90 mm
• Weight: 29 g.

Packaging:

• DoorProtect opening detector
• SmartBracket mounting panel
• Two magnets
• CR123A battery (pre-inserted)
• External contact
• Installation set
• User guide



AJAX 4-button remote control AJ-SPACECONTROLW:

Main functions:

• Calls for help in case of emergency
• Activates the alarm in full or partial mode
• Communicates command execution with an indicative light
• Authentication system prevents device replacement and false alarms
• The device controls the security modes and allows an alarm signal to be sent to the Alarm Receiving Center (ARC) by pressing the buttons on the remote control
• Immediately ready to use: the battery is already installed, no need to disassemble the detector. Connects to the hub via mobile app with one click.

Features:

• Classification: four-button remote control with command delivery indication
• Compatibility Works with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
• Number of buttons 4
• Emergency button deactivation
• Power Supply: CR2032 battery
• Supply voltage: 3 V
• Battery life up to 5 years
• Operating temperatures From -25°? to +50°?
• Maximum allowable humidity Up to 95%
• Dimensions 65 × 37 × 10 mm
• Weight 13 g.

Package contents

• SpaceControl remote control
• CR2032 battery (pre-inserted)
• User guide.

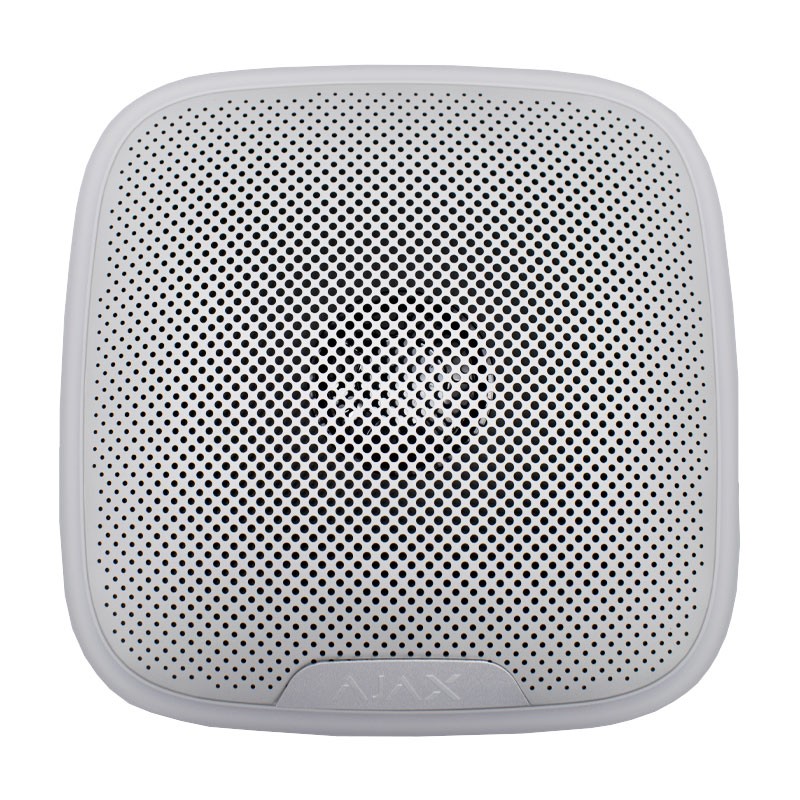

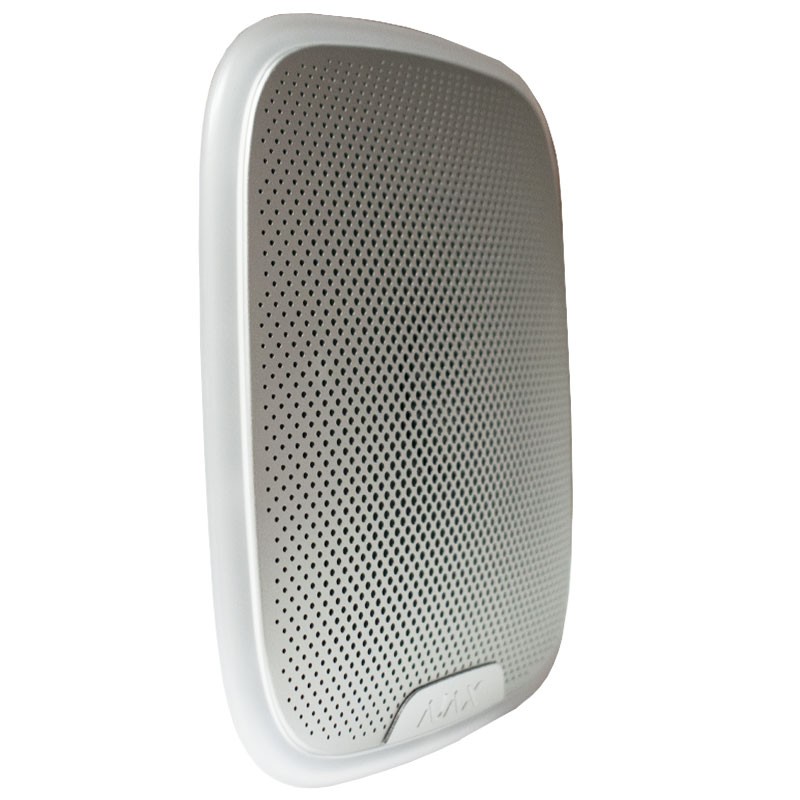

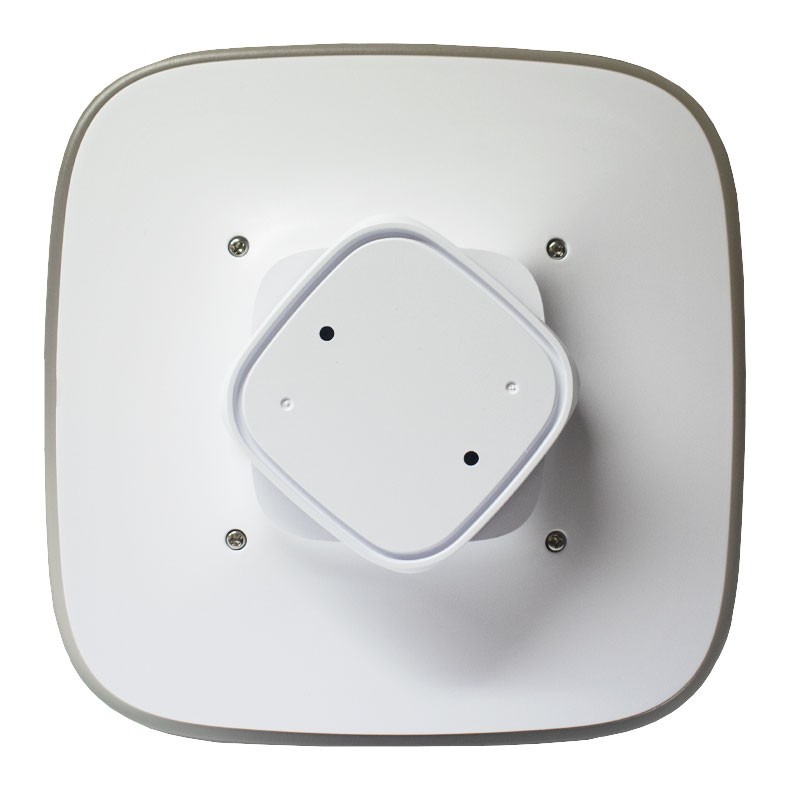

AJAX Wireless Outdoor Siren White AJ-STREETSIREN-W:

Features:

• Classification Audible and luminous security beacon with radio channel
• Wireless siren type
• Installation Indoor/Outdoor
• Compatibility Works with Hub, Hub Plus, Hub 2 and ReX only
• Notification Type Acoustic/Luminous
• Adjustable sound volume, 85 - 113 dB at a distance of 1 m
• Adjustable alarm duration: 3 - 180 s
• On/off status indication
• Alarm signal reception time 0.15 s
• Battery Power Supply: Four CR123A batteries
• Supply voltage: 3 V
• Battery life up to 5 years
• Mains power supply: DC 12 V±20%
• Temperature Sensor
• Operating temperatures From -25°? to +50°?
• Maximum allowable humidity Up to 95%
• Housing protection class IP54
• Anti-tampering systems Anti-counterfeiting protection - Inhibition detection - Tamper resistant
• Dimensions 200 × 200 × 51 mm
• Weight 528 g
• The siren is dustproof, resistant to hail and rain drops. Operates at a minimum temperature of -25°?
• Signals on/off status by integrated LED light
• Operates for up to 5 years without the need for battery replacement or on 12V DC power.

Package Contents

• StreetSiren siren
• 4 CR123A batteries (pre-inserted)
• Installation set
• User guide.

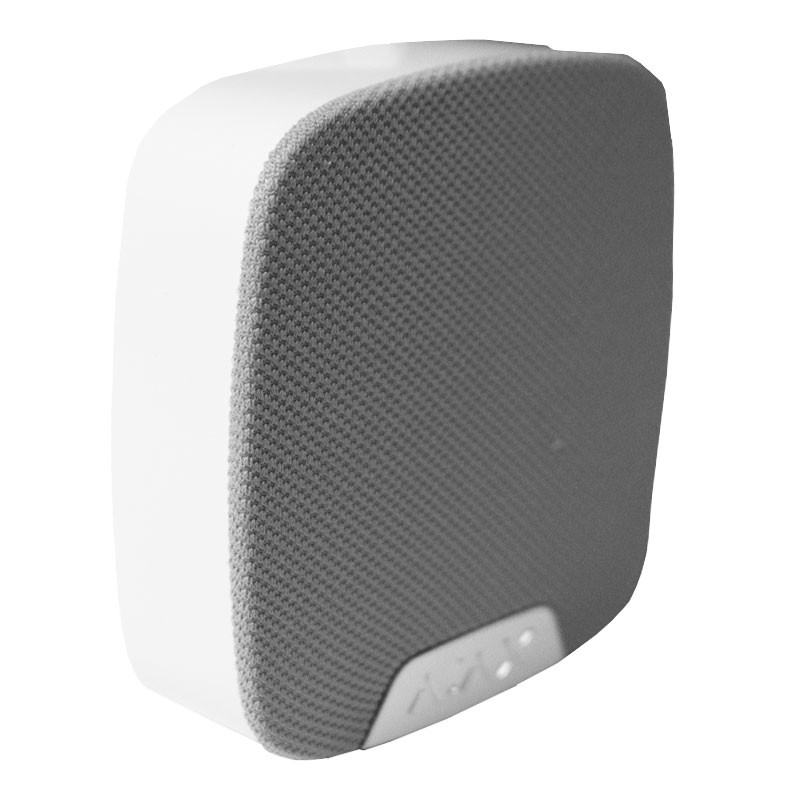

AJAX Wireless Indoor Siren White AJ-HOMESIREN-W:

Features:

• Classification: Radio security detector with audible alarm
• Wireless siren type
• Indoor Installation
• Compatibility Works with Hub, Hub Plus, Hub 2 and ReX only
• Notification Type Acoustic
• External LED connector
• Adjustable sound volume, 81?105 dB at a distance of 1 m
• Adjustable alarm duration: 3?180 s
• On/off status indication
• Alarm signal reception time 0.15 s
• Power supply: Battery: Two CR123A batteries
• Supply Voltage: 3 V
• Battery life: up to 5 years
• Temperature sensor
• Operating temperatures from -10°? to +40°?
• Maximum allowable humidity Up to 75%
• Housing protection class IP50
• Anti-tampering systems: Anti-counterfeiting protection - Inhibition detection - Tamper resistant
• Dimensions 75 × 76 × 27 mm
• Signals the on/off status by integrated LED light
• If necessary, you can connect an external LED to the siren
• You can customize the sound volume and alarm duration in case of detector activation.

Package contents

• HomeSiren siren
• SmartBracket mounting panel
• Connector for LED indicator
• Two CR123A batteries (pre-inserted)
• Installation set
• User guide.
