Bentel Home Alarm Kit Central 18 Box Power Supply Keyboard Siren LAN/WAN KITABS18IP
BSY KITABS18IP

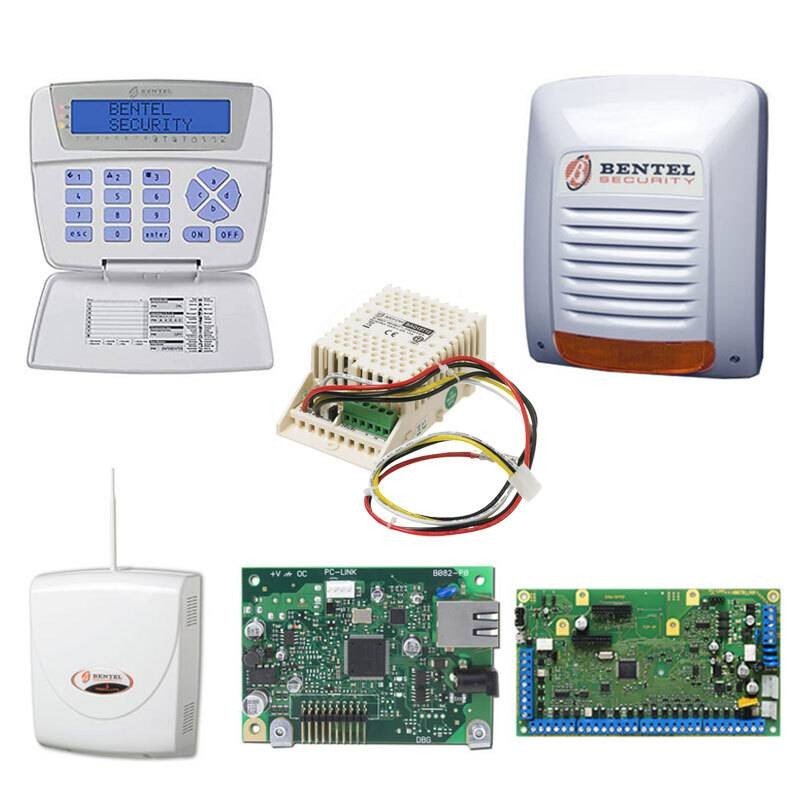

Bentel Home Alarm Kit consisting of:
- 1 piece Absoluta plus hybrid 18-zone alarm control unit (code ABS18)
- 1 piece Plastic case for Absoluta series (code ABS-P)
- 1 piece switching power supply unit 1.5A (code BAQ15T12)
- 1 piece LCD classic keyboard (code BKB-LCD)
- 1 piece Bentel LAN WAN communication board for Absoluta control panels (code ABS-IP)
- 1 piece Self-powered outdoor siren with flasher (code NEKA)
Bentel Home Alarm Kit Central 18 Box Power Supply Keyboard Siren LAN/WAN KITABS18IP
€410.17
Tax included
€410.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna
Frequently bought together
Kit component specifications:
1 piece Absoluta plus hybrid 18-zone alarm control panel (part number ABS18):
- Pollution degree standard: EN Grade 2
- Maximum number of wired and wireless zones: 18
- Maximum number of wireless zones: 18
- User codes: 31
- Installer codes: 2
- Keypads: 8
- Tags, keys and proximity cards: 64
- Radio keys: 16
- Proximity tag, key and card readers: 16
- Input/output expansions: 32/16
- Power stations: 4
- Areas: 8
- Maximum number of outputs: 16
- Timers: 16
- Voice messages: 206
- Phone numbers in address book: 32
- E-mail addresses: 32
- Management via ABSOLUTA APP: yes
- Management via telephone (DTMF): yes
- Management via telephone (SMS): yes
- Triple balanced zones: no
1 piece Plastic enclosure for Absoluta series (code ABS-P):
- Material: white ABS
- Housable battery: Max. 12 V / 7 Ah (to be purchased separately) codes FG20721 - B12V7A
- Dimensions: 319x352x92 mm W x H x D
- Weight (without battery): 1.95 kg
1 piece switching power supply unit 1.5A (part number BAQ15T12):
The BAQ15T12 is a buffer power supply and battery charger for use inside alarm control panels. Its output is protected from overloads, short circuits and accidental reversal of battery terminals.
- Input voltage: 100/240V (+-10%) - Frequency 47/63 Hz
- Current consumption: 0.42A
- Output voltage: 13.8V (+-2%)
- Maximum output current: 1.5A
- Battery capacity: 12V - 7Ah (max)
- Operating temperature: 5- 40 C°
- Insulation class: 1
- Dimensions in mm: 125 x 42 x 72
- Weight: 0.195 kg
1 piece Classic LCD keyboard (code BKB-LCD):
- 2x16 blue LCD display
- Adjustable display contrast
- 3 system status LEDs
- Great value
- Large, easy-to-use keys
- Very easy and fast installation with no wiring problems: terminals only on the back side
1 piece Bentel LAN WAN communication card for Absoluta control panels (code ABS-IP):
- Bentel Series
- LAN/WAN Internet protocol with 128-bit encryption
- Plug and play: no router configuration required
- Event notification via e-mail
- Alarm transmission to Sur-Gard receivers
- Data uploading/downloading with BOSS software
- Support for ABSOLUTA App 2.0
- ITV2 Third-party integration protocol
1 piece Self-powered outdoor siren with flasher (code NEKA):
NEKA draws on Bentel Security's established experience in optical-acoustic alarms and is available in 4 different models. The presence of 4 different inputs for separate control of acoustic and luminous signaling, and the possibility of programming 2 different sets of sounds, greatly extends the range of application of the single siren. Four different alarm inputs, three of them with programmable polarity, ensure NEKA's compatibility with the totality of security system control panels. In addition, the siren offers an effective self-diagnostic feature of both the lamp and the battery, whose level and state of efficiency are kept constantly monitored, thus ensuring continuous safety. The sturdy plastic material used and the tropicalized metal inner protection ensure virtually unlimited weather resistance. It also has features for: break-in, removal, cable cutting.
Features:
- Rugged plastic housing resistant to the most adverse weather conditions
- Additional protection with tropicalized steel cover
- Compatibility with all alarm control panels on the market
- One input battery charger and optical-acoustic alarm activation
- One input for optical-only alarm, with programmable polarity
- One input for acoustic-only alarm, with programmable polarity
- One input for optical-acoustic alarm, with programmable polarity
- Magnetodynamic exponential horn with high acoustic output for powerful frequency-modulated sound emission with possibility of associating different sounds with various alarm inputs
- Protection against wire cutting, lamp filament breakage and break-in
- Battery test circuit with exclusion of the flasher when the battery is low
- Programming of maximum alarm time
- Simple installation with drilling template
There are no reviews
Data sheet
- Type: Kit Anti-Theft
- System: With Wires
- Installation: Internal
