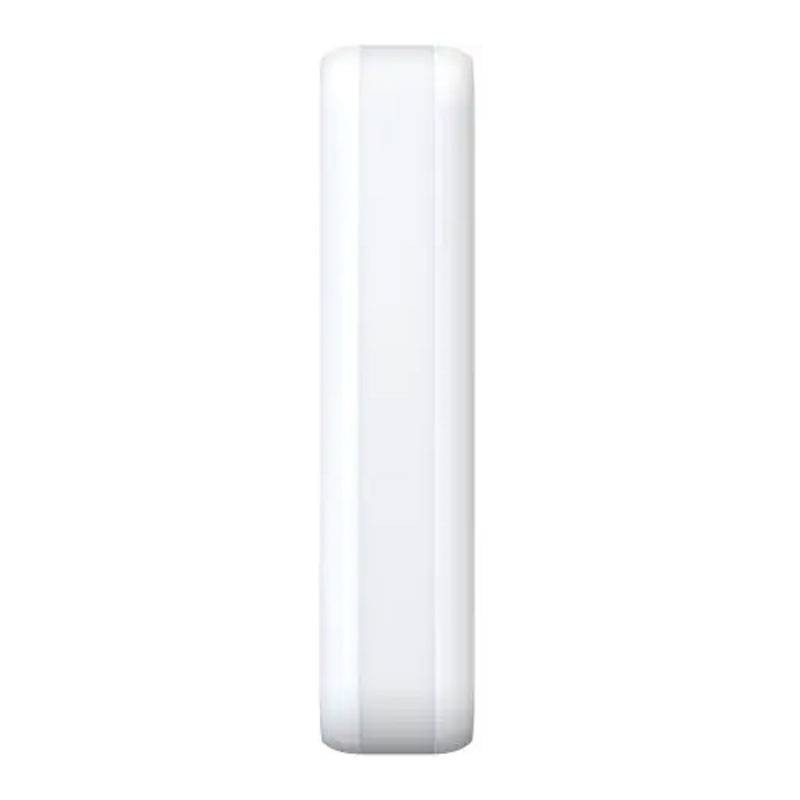

Hikvision wired curtain detector DS-PDC10DM-VG3 DT 10 meter 314300190
HIK 314300190
6931847124724
Hikvision DS-PDC10DM-VG3 Wired Curtain Detector:
- Slim design for installation on the window frame
- IP65 weather resistance for outdoor applications
- Active IR anti-masking
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper wiring
- Support for directional detection
- Bracket L-shaped adapter included
Hikvision wired curtain detector DS-PDC10DM-VG3 DT 10 meter 314300190
€68.44
Tax included
€68.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
: 16
Pay in installments with Klarna
Features:
- Detection method Passive infrared; Microwave
- Detection range Wall mount: 10 m - Ceiling mount: 6 m
- Detection angle 5°
- Detection zones 32
- Detectable speed 0.2~3 m/s
- Sensitivity Auto
- White light filter 6500lux
- Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
- Digital temperature compensation
- Sliding zone protection
- Antimasking
- Digital processing
- Sealed optics
- Anti-sabotage protection
- Directional sensing
- Normally closed alarm output
- LED indicator Green (PIR), Red (microwave), Green+Orange (mask), Blue (alarm)
- Power supply 9 to 16 VDC
- Typical voltage 12 VDC
- Power consumption Maximum current: 16 mA at 12 VDC - Quiescent current: 21 mA at 12 VDC
- Operating temperature -25 °C to 60 °C (-13 °F to 140 °F)
- Storage temperature From -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity 10% to 90%
- IP Rate IP65
- Dimensions (WxHxD) 29.2 mm × 134.4 mm × 39.5 mm
- Weight 79 g
- Mounting Height From 2 to 4 meters
- Mounting Method Wall; Ceiling
- Application scenario Inside out
- Bracket L-shaped adapter included
There are no reviews
Data sheet
- Type: Detectors
- System: Curtain
- Installation: Wall-mounted
With Wires
