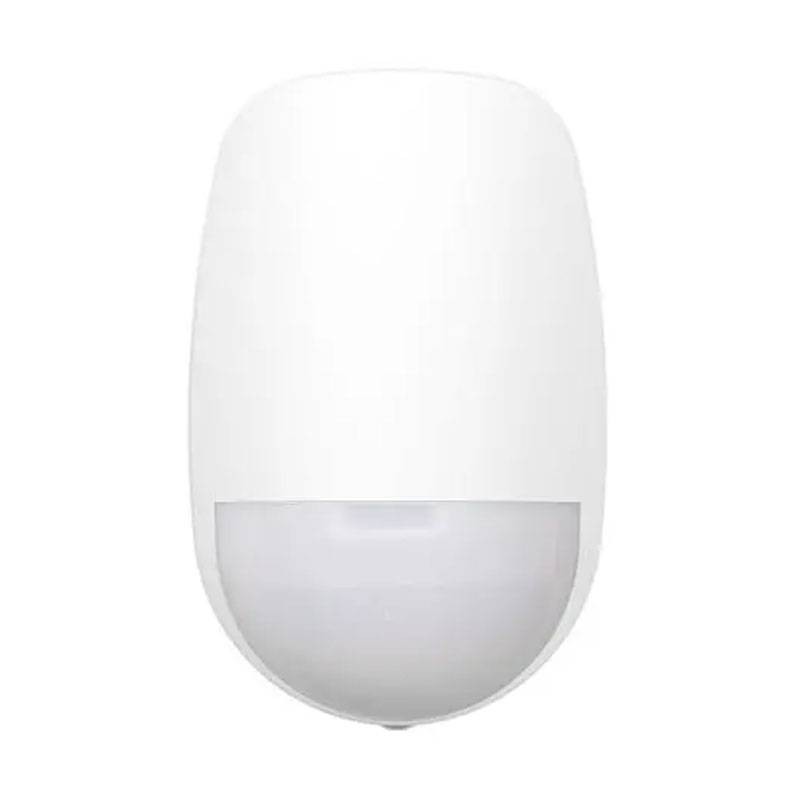

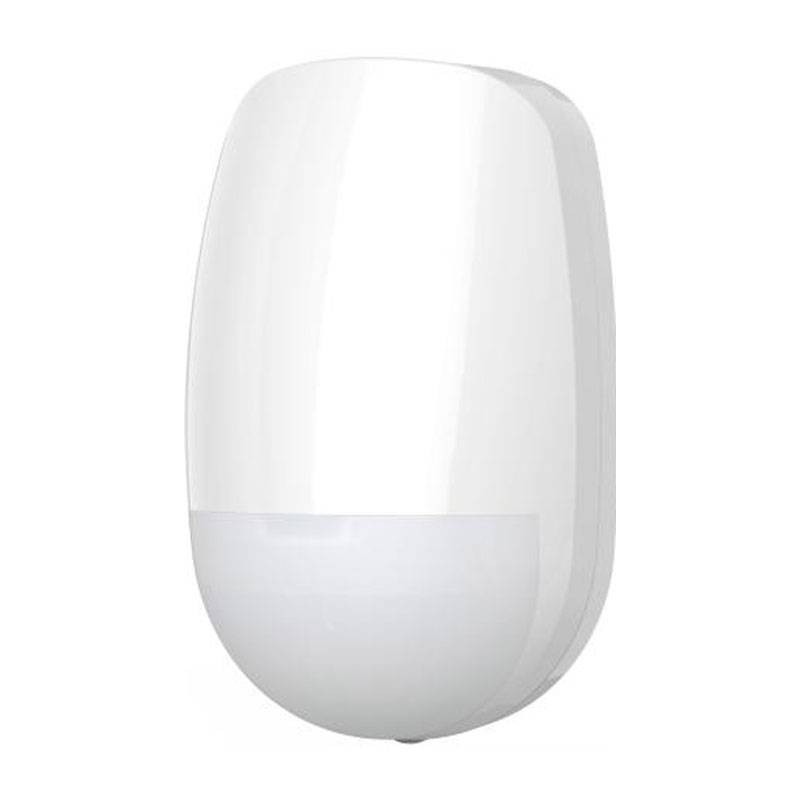

Hikvision wired dual technology detector DS-PDD12P-EG2 PET 12 meter 314300115
HIK 314300115
6941264073598
Hikvision DS-PDD12P-EG2 wired dual technology detector:
- Detection range: 12 m / 85.9°
- Pey immunity up to 30 kg
- Automatic sensitivity
- Digital temperature compensation
- 52 zones of 3D optics including creep zone protection, full coverage without blind spot
- Selectable EOL resistors for alarm and tamper wiring
- Sealed optics preventing insect interference
- 24Ghz microwave
- Wide voltage adaptation from 9 to 16 V with reverse polarity protection
- Wall/ceiling mounting brackets available (sold separately)
- IFT technology prevents false alarms
DS-PDB-IN-CEILINGBRACKET compatible ceiling bracket code 302401137 to be purchased separately.
Hikvision wired dual technology detector DS-PDD12P-EG2 PET 12 meter 314300115
€28.75
Tax included
€28.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 54
: 14
Pay in installments with Klarna
Frequently bought together
Features:
- Detection method Passive infrared; Microwave
- Detection range 12 million
- Detection angle 85.9°
- Detection zones 52
- Detectable speed 0.3~2 m/s
- Sensitivity Auto; Pet
- Pet immunity 30Kg
- White light filter 6500lux
- Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
- Digital temperature compensation
- Scroll zone protection
- Digital processing
- Sealed optics
- Anti-sabotage protection
- Normally closed alarm output
- LED indicator Green (PIR), Orange (microwave), Blue (alarm)
- Power supply 9 to 16 VDC
- Typical voltage 12 VDC
- Power consumption Maximum current: 17 mA at 12 VDC - Quiescent current: 17 mA at 12 VDC
- Operating temperature From -10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature From -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity 10% to 90%
- Dimensions (WxHxD) 65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1.79")
- Weight 99 g (3.5 oz.)
- Mounting height 1.8 to 2.4 meters (6 to 8 feet)
- Mounting method Wall
- Application scenario Indoor
- Optional wall and ceiling accessory bracket not included
There are no reviews
Data sheet
- Type: Detectors
- System: Pet Immunity
- Installation: Internal
With Wires
